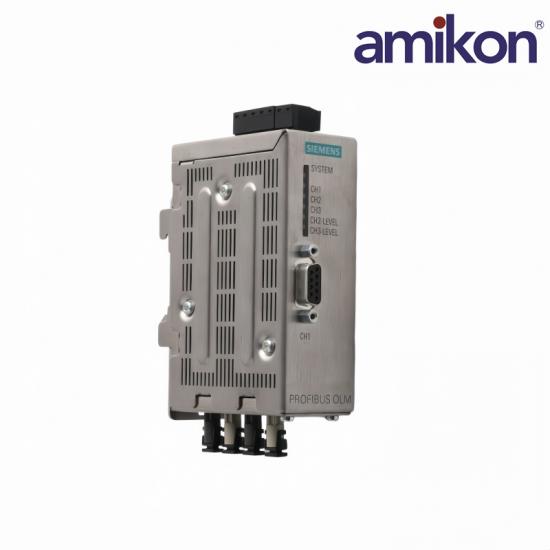

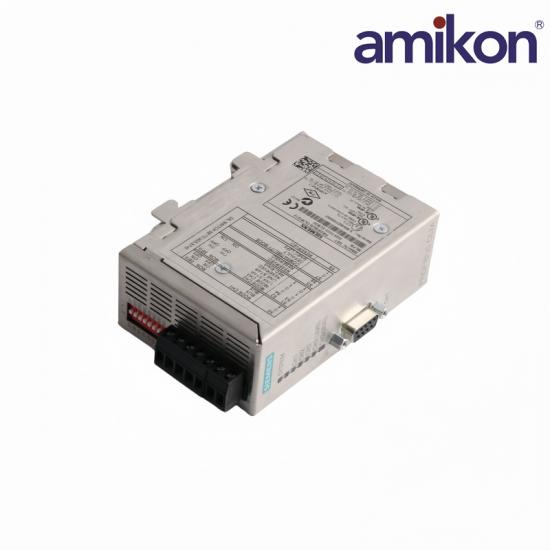

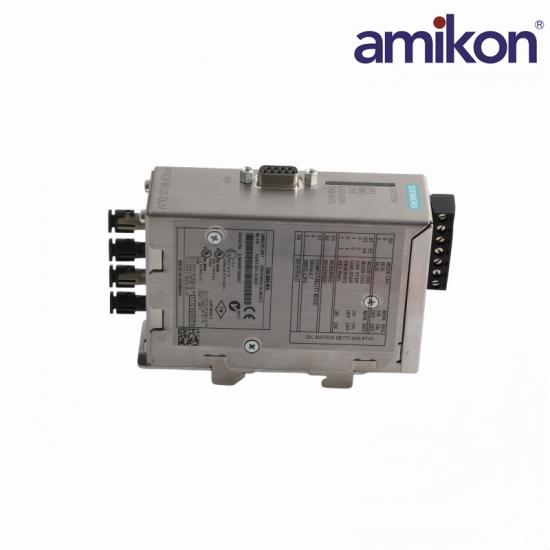

Siemens 6GK1503-3CB00 Optical Link Module

6GK1503-3CB00
6GK1503-3CB00
6GK1503-3CB00

Siemens 6GK1503-3CB00 Optical Link Module

✉  INQUIRE NOW

SIEMENS · PROFIBUS

6GK1503-3CB00

Optical Link Module

MANUFACTURERSiemens
MODEL6GK1503-3CB00
PART NUMBER6GK1503-3CB00
PRODUCT TYPEOptical Link Module
SYSTEM FAMILYPROFIBUS
ORDER SUPPORTModel Verification

INDUSTRIAL AUTOMATION SPARE PARTS PARTNER

20 Years of Experience in Industrial Automation Supply

AMIKON supplies industrial automation spare parts to maintenance, engineering and procurement teams worldwide. Our focus includes discontinued and hard-to-find DCS, PLC and TSI components, helping customers identify the correct model, source replacement parts and support urgent maintenance requirements.

Discontinued Parts SourcingModel Identification SupportGlobal Customer SupportIn-Stock Supply Support
  • Item NO.:

    6GK1503-3CB00
  • Product Origin:

    Germany
  • Brand/Manufature:

    Siemens
  • Product Origin:

    Germany
  • Lead Time:

    IN STOCK
  • Condition:

    Brand New And 100% Original
  • Certificate:

    Coo

Siemens Industrial Automation

6GK1503-3CB00

Price and Availability Inquiry

The Siemens 6GK1503-3CB00 is a Optical Link Module used in SIMATIC NET industrial automation systems. Designed for industrial network optical communication applications, it is identified by its complete model and part number for accurate maintenance and replacement enquiries.

Sales SupportDirect specialist contact
QuotationCurrent commercial details
DeliveryDHL · FedEx · UPS
Fast quotation support Send the model and required quantity directly to Lisa Lin using the contact options on the right.

Your AMIKON Contact

LL Lisa LinSales Specialist
WhatsApp +86 18965423501
Request a Quote on WhatsApp Send Email Inquiry
For faster service, please include the model 6GK1503-3CB00 and required quantity in your inquiry.

SIEMENS 6GK1503-3CB00 · PROFIBUS OLM

Technical Specifications

Official network, optical, electrical and application data for the PROFIBUS OLM/G12 V4.0 optical link module.

01
Product IdentityCore product information
ManufacturerSiemens
Full order number6GK1503-3CB00
Product designationPROFIBUS OLM/G12 V4.0
Product typeOptical Link Module
02
Network & OpticalPROFIBUS transmission data
Transfer rate9.6 kbit/s to 12 Mbit/s
Electrical interface1 × RS 485
Optical interfaces2 × glass fiber / 4 BFOC sockets
Maximum fiber distanceUp to 2,850 m, fiber-dependent
03
Electrical & ConnectionSupply and interfaces
Rated supply voltage24 V DC
Serial connection9-pin Sub-D
Power / signaling connection5-pole terminal block
Signaling contact24 V DC, 0.1 A max.
04
Application DataFiber network use
Maximum fiber distanceUp to 2,850 m, fiber-dependent
Supported networkPROFIBUS optical networks
Fiber typeMultimode glass fiber
DiagnosticsSignaling contact and optical test output

SIEMENS PRODUCT SUPPORT

Frequently Asked Questions

Key identification and application information for Siemens 6GK1503-3CB00.

01 · What is 6GK1503-3CB00?

It is a Siemens PROFIBUS OLM/G12 V4.0 optical link module.

02 · Which interfaces are integrated?

It provides one RS 485 interface and two optical interfaces with four BFOC sockets.

03 · What data rates are supported?

The module supports PROFIBUS rates from 9.6 kbit/s up to 12 Mbit/s.

04 · What fiber distance is possible?

Distances up to 3 km are possible depending on the selected multimode glass fiber.

05 · What supply voltage is required?

The module uses a rated 24 V DC supply.

06 · Which optical wavelength is used?

The optical interfaces operate at 860 nm with multimode glass fiber.

07 · What diagnostic facilities are provided?

The module provides a signaling contact and an optical test output for network diagnostics.
