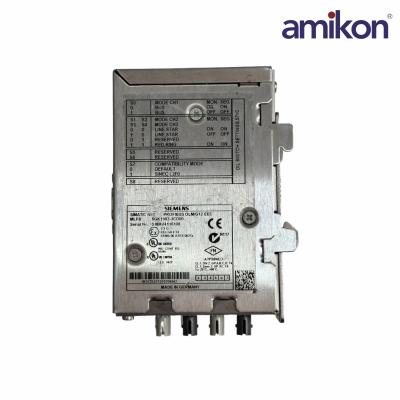

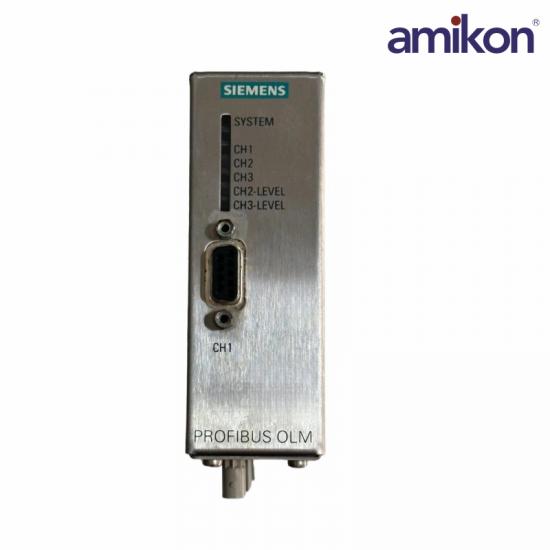

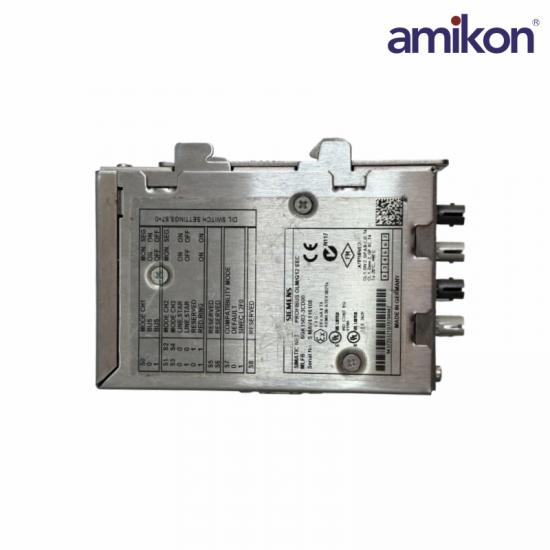

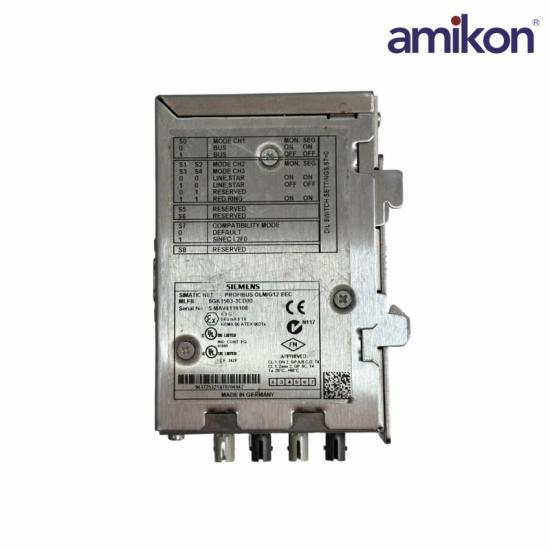

Siemens 6GK1503-3CC00 Optical Link Module

6GK1503-3CC00
6GK1503-3CC00
6GK1503-3CC00

Siemens 6GK1503-3CC00 Optical Link Module

✉  INQUIRE NOW

SIEMENS · PROFIBUS

6GK1503-3CC00

Optical Link Module

MANUFACTURERSiemens
MODEL6GK1503-3CC00
PART NUMBER6GK1503-3CC00
PRODUCT TYPEOptical Link Module
SYSTEM FAMILYPROFIBUS
ORDER SUPPORTModel Verification

INDUSTRIAL AUTOMATION SPARE PARTS PARTNER

20 Years of Experience in Industrial Automation Supply

AMIKON supplies industrial automation spare parts to maintenance, engineering and procurement teams worldwide. Our focus includes discontinued and hard-to-find DCS, PLC and TSI components, helping customers identify the correct model, source replacement parts and support urgent maintenance requirements.

Discontinued Parts SourcingModel Identification SupportGlobal Customer SupportIn-Stock Supply Support
  • Item NO.:

    6GK1503-3CC00
  • Product Origin:

    Germany
  • Brand/Manufature:

    Siemens
  • Product Origin:

    Germany
  • Lead Time:

    IN STOCK
  • Condition:

    Brand New And 100% Original
  • Certificate:

    Coo

Siemens Industrial Automation

6GK1503-3CC00

Price and Availability Inquiry

The Siemens 6GK1503-3CC00 is a Optical Link Module used in SIMATIC NET industrial automation systems. Designed for industrial network optical communication applications, it is identified by its complete model and part number for accurate maintenance and replacement enquiries.

Sales SupportDirect specialist contact
QuotationCurrent commercial details
DeliveryDHL · FedEx · UPS
Fast quotation support Send the model and required quantity directly to Lisa Lin using the contact options on the right.

Your AMIKON Contact

LL Lisa LinSales Specialist
WhatsApp +86 18965423501
Request a Quote on WhatsApp Send Email Inquiry
For faster service, please include the model 6GK1503-3CC00 and required quantity in your inquiry.

SIEMENS 6GK1503-3CC00 · PROFIBUS OLM

Technical Specifications

Official identification, optical-network, interface and order data for the PROFIBUS OLM/G12-1300 V4.0.

01
Product IdentityCore product information
ManufacturerSiemens
Full order number6GK1503-3CC00
Product designationPROFIBUS OLM/G12-1300 V4.0
Product familyOLM optical link module
02
Network & Optical DataPROFIBUS and fiber-optic performance
PROFIBUS transfer rate9.6 kbit/s to 12 Mbit/s
Network interfaces1 × RS 485 and 2 × glass-fiber interfaces
Optical connection4 × BFOC sockets
Optical wavelength1310 nm, single-mode
Maximum optical link length15 km
03
Electrical & Connection DataPower, signaling and test connections
Supply voltage24 V DC rated
Permitted supply range18.8 to 28.8 V DC
PROFIBUS connection9-pin Sub-D socket
Power & signaling connection5-pole terminal block
Signaling contact rating24 V DC, 0.1 A maximum
04
Physical & Order DataCommercial and compliance information
Net weight0.427 kg
Packaging dimensions39.5 × 74.5 × 112 mm
Country of originGermany
Product lifecyclePM300: Active Product
WEEE take-back obligationYes

SIEMENS PROFIBUS NETWORK SUPPORT

Frequently Asked Questions

Key identification and application information for Siemens 6GK1503-3CC00.

01 · What is Siemens 6GK1503-3CC00?

It is a PROFIBUS OLM/G12-1300 V4.0 optical link module for converting and extending PROFIBUS networks over glass fiber.

02 · Which interfaces does it provide?

The module provides one RS 485 interface and two glass-fiber interfaces implemented with four BFOC sockets.

03 · What PROFIBUS data rates are supported?

The supported PROFIBUS transfer-rate range is 9.6 kbit/s to 12 Mbit/s.

04 · What is the optical specification?

The optical interfaces use 1310 nm single-mode transmission and support a maximum link length of 15 km under the specified fiber conditions.

05 · What power supply is required?

The rated supply is 24 V DC, with a permitted range of 18.8 to 28.8 V DC.
