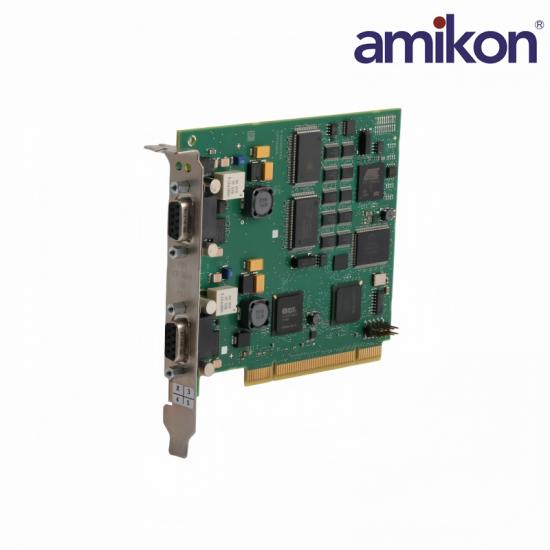

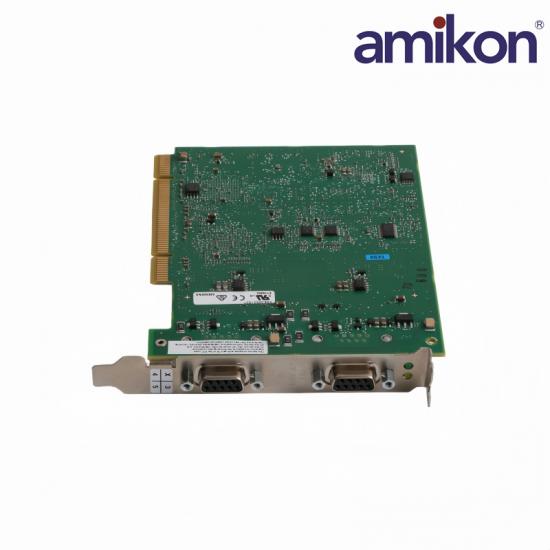

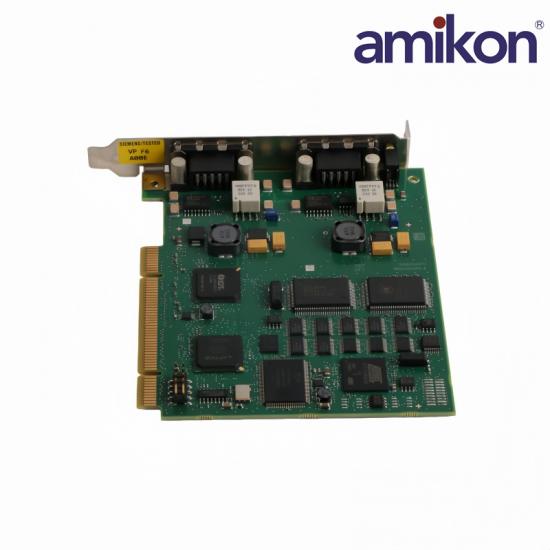

Siemens 6GK1561-4AA02 CP 5614 A3 PROFIBUS Communication Processor

6GK1561-4AA02
6GK1561-4AA02
6GK1561-4AA02

Siemens 6GK1561-4AA02 CP 5614 A3 PROFIBUS Communication Processor

✉  INQUIRE NOW

SIEMENS · SIMATIC NET

6GK1561-4AA02

CP 5614 A3 PROFIBUS Communication Processor

MANUFACTURERSiemens
MODEL6GK1561-4AA02
PART NUMBER6GK1561-4AA02
PRODUCT TYPECP 5614 A3 PROFIBUS Communication Processor
SYSTEM FAMILYSIMATIC NET
ORDER SUPPORTModel Verification

INDUSTRIAL AUTOMATION SPARE PARTS PARTNER

20 Years of Experience in Industrial Automation Supply

AMIKON supplies industrial automation spare parts to maintenance, engineering and procurement teams worldwide. Our focus includes discontinued and hard-to-find DCS, PLC and TSI components, helping customers identify the correct model, source replacement parts and support urgent maintenance requirements.

Discontinued Parts SourcingModel Identification SupportGlobal Customer SupportIn-Stock Supply Support
  • Item NO.:

    6GK1561-4AA02
  • Order(MOQ):

    1
  • Product Origin:

    Germany
  • Lead Time:

    IN STOCK
  • Brand/Manufature:

    Siemens
  • Product Origin:

    Germany
  • Lead Time:

    IN STOCK
  • Condition:

    Brand New And 100% Original
  • Certificate:

    COO

Siemens · SIMATIC NET

6GK1561-4AA02

Price and Availability Inquiry

Siemens 6GK1561-4AA02 is the CP 5614 A3 32-bit PCI communication processor with separate PROFIBUS master and slave interfaces.

Sales SupportDirect specialist contact
QuotationCurrent commercial details
DeliveryDHL · FedEx · UPS
Fast quotation support Send the model and required quantity directly to Lisa Lin using the contact options on the right.

Your AMIKON Contact

LL Lisa LinSales Specialist
WhatsApp +86 18965423501
Request a Quote on WhatsApp Send Email Inquiry
For faster service, please include the model 6GK1561-4AA02 and required quantity in your inquiry.

Siemens 6GK1561-4AA02

Technical Specifications

Siemens catalog data; supported operating systems depend on the installed SIMATIC NET software release.

01 Product Identity Manufacturer catalog data
Manufacturer Siemens
Part Number 6GK1561-4AA02
Product Designation CP 5614 A3
Product Family SIMATIC NET
02 Bus & Protocol Data Dual PROFIBUS interface
Bus Interfaces Master and slave
Transfer Rate 9.6 Kbit/s to 12 Mbit/s
Connectors 2 × 9-pin Sub-D RS485
Protocols Included DP, PG and FDL
03 PCI & Electrical Data Published board ratings
Host Interface 32-bit PCI, 33/66 MHz
PCI Voltage 3.3 V / 5 V compatible
Supply Rails 3.3 V and 12 V
Power Loss 4 W active
04 Mechanical & Environment Card installation data
Dimensions 18 × 107 × 125 mm
Board Weight Approx. 0.118 kg
Operating Temperature 5 to 55 °C
Degree of Protection IP00

Siemens 6GK1561-4AA02 Product Support

Frequently Asked Questions

Host-slot, dual-interface, PROFIBUS commissioning, software and lifecycle guidance for CP 5614 A3.

01

Will CP 5614 A3 fit any PCI host computer?

No. Verify a 32-bit PCI slot supporting 3.3 V or 5 V operation at 33 or 66 MHz, plus the required card clearance and supported operating system.

02

When is the separate master-and-slave architecture useful?

It is intended for applications that need an independent PROFIBUS master channel and PROFIBUS slave channel in the same industrial PC.

03

How are bus speed and termination set during commissioning?

Match each segment to the planned 9.6 kbit/s to 12 Mbit/s data rate, assign unique addresses and terminate only the two physical ends of each RS485 segment.

04

What software resources accompany the communication processor?

The card uses SIMATIC NET configuration and DP software, provides DP-RAM for the master interface and requires the applicable runtime license.

05

Which checks help stabilize a high-speed PROFIBUS installation?

Confirm cable type, segment length, connector shielding, termination and device count before selecting the highest supported data rate.

06

What must be checked before migrating the PC or operating system?

Verify that the target SIMATIC NET release supports the new operating system, PCI hardware and existing STEP 7 or OPC application.

07

What information should a CP 5614 A3 quotation include?

State 6GK1561-4AA02, host-PC model, PCI slot type, operating system, SIMATIC NET release, required license and quantity.
