Siemens SCALANCE XB

6GK5108-2BD00-2AB2

Price and Availability Inquiry

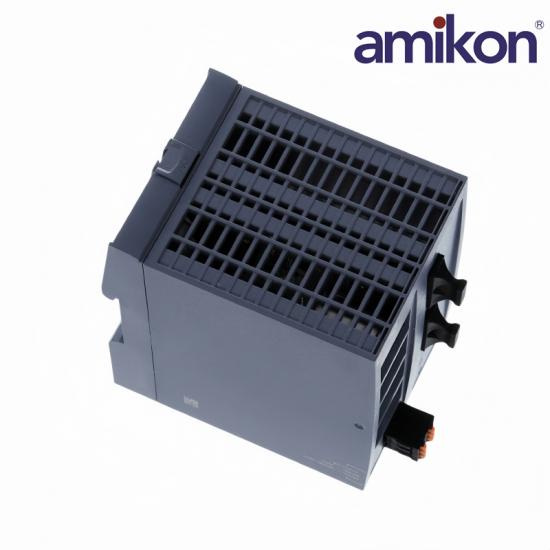

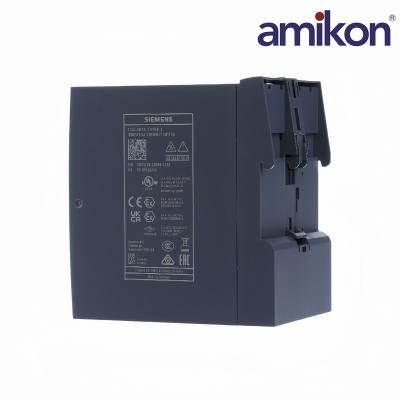

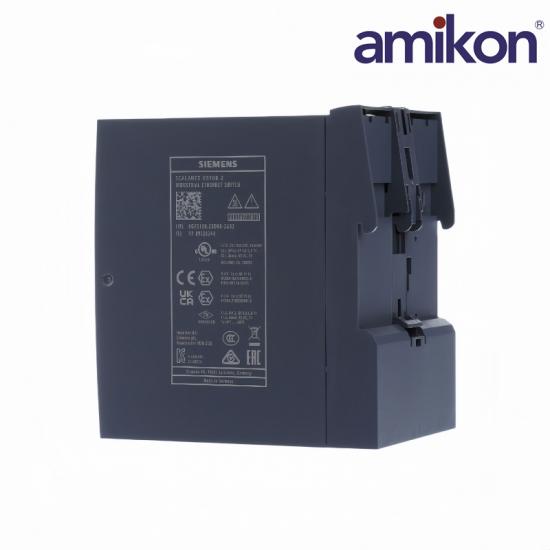

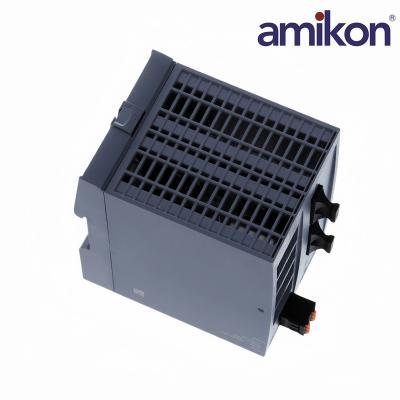

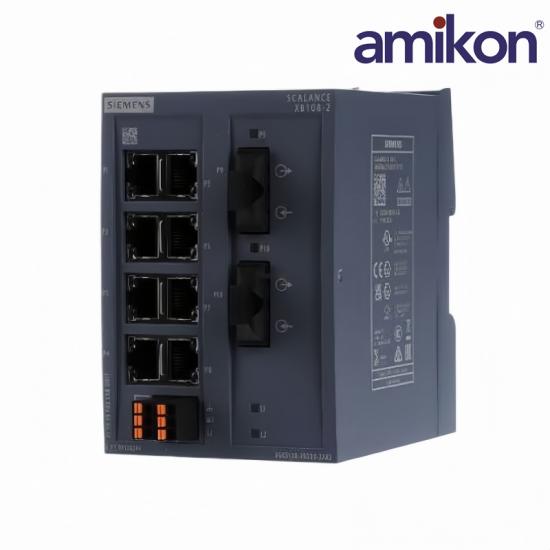

XB108-2 unmanaged Industrial Ethernet switch with eight 10/100 Mbit/s RJ45 ports and two 100 Mbit/s multimode SC fiber ports.

Sales SupportDirect specialist contact

QuotationCurrent commercial details

DeliveryDHL · FedEx · UPS

Fast quotation support Send the model and required quantity directly to Lisa Lin using the contact options on the right.

Your AMIKON Contact

LL Lisa LinSales Specialist

WhatsApp +86 18965423501

Email sales7@amikon.cn

Request a Quote on WhatsApp Send Email Inquiry

For faster service, please include the model 6GK5108-2BD00-2AB2 and required quantity in your inquiry.

Siemens 6GK5108-2BD00-2AB2

Technical Specifications

Model-specific technical and ordering data for 6GK5108-2BD00-2AB2.

01Product IdentityExact product identification

ManufacturerSiemens

Article Number6GK5108-2BD00-2AB2

DesignationSCALANCE XB108-2

Product TypeUnmanaged Industrial Ethernet switch

02Network InterfacesModel-specific interface and function data

Copper Ports8 × 10/100 Mbit/s RJ45

Optical Ports2 × 100 Mbit/s SC

Fiber Wavelength1300 nm

Max. Fiber Link3 km with 50 or 62.5 µm core

03Power & DiagnosticsElectrical and application data

Rated Supply24 V AC/DC

Supply Range19.2–28.8 V AC/DC; redundant

Current Consumption300 mA DC / 450 mA AC at 24 V

Protection RatingIP20

04Mechanical & OrderingMechanical and ordering details

Dimensions (W × H × D)80 × 117 × 109 mm

Net WeightApprox. 0.442 kg

Operating Temperature0 to +60 °C

Housing MaterialPolycarbonate (PC-GF10)

Siemens 6GK5108-2BD00-2AB2 Product Support

Frequently Asked Questions

Product-specific configuration, application, installation and ordering guidance for 6GK5108-2BD00-2AB2.

Where does the XB108-2 SC fit in an Industrial Ethernet layout?

Siemens specifies this unmanaged switch for small star and line topologies; plan managed functions elsewhere in the network.

How should its copper and fiber links be allocated?

Connect copper devices through eight 10/100 Mbit/s RJ45 ports and use the two 100 Mbit/s multimode SC ports for compatible fiber links.

Can a BFOC fiber lead plug into this SC variant?

No. Article 6GK5108-2BD00-2AB2 has SC optical interfaces; confirm the installed fiber connector before ordering.

Which power arrangement should be checked before energizing?

The switch uses 24 V AC/DC and provides redundant supply connections; wire and test them according to the Siemens manual.

How can a missing link be traced during commissioning?

Check the port and supply LEDs, then inspect the matching RJ45 or multimode SC cable and the device at the far end.

Does this model require switch-management configuration?

No. The XB108-2 is unmanaged, so do not plan VLAN or managed-switch settings on this device.

Which full part number avoids ordering a different fiber version?

Specify 6GK5108-2BD00-2AB2 and state that two multimode SC ports are required.
