Siemens SCALANCE XP-200

6GK5216-0HA00-2AS6

Price and Availability Inquiry

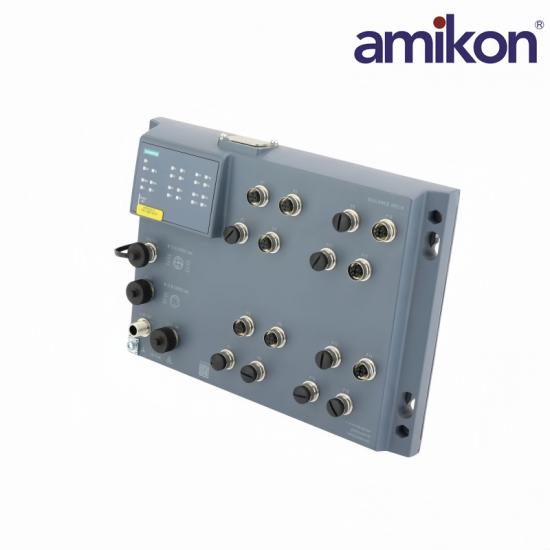

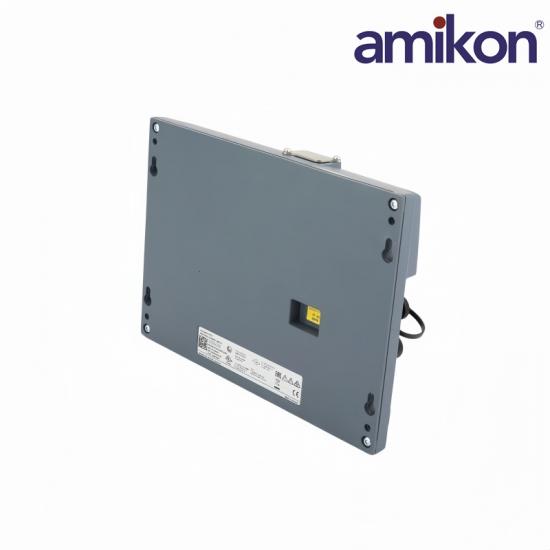

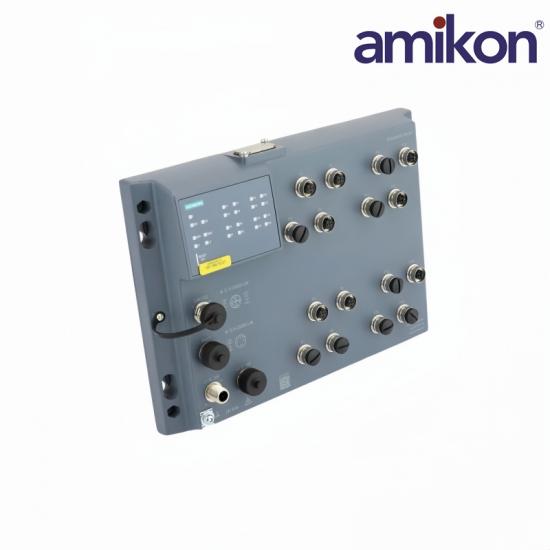

The Siemens 6GK5216-0HA00-2AS6 is a SCALANCE XP216 Managed Switch in the SCALANCE XP-200 family, with 12 × 10/100 M12; 4 × Gigabit M12; 24 V DC redundant; IP65.

Sales SupportDirect specialist contact

QuotationCurrent commercial details

DeliveryDHL · FedEx · UPS

Fast quotation support Send the model and required quantity directly to Lisa Lin using the contact options on the right.

Your AMIKON Contact

LL Lisa LinSales Specialist

WhatsApp +86 18965423501

Email sales7@amikon.cn

Request a Quote on WhatsApp Send Email Inquiry

For faster service, please include the model 6GK5216-0HA00-2AS6 and required quantity in your inquiry.

Siemens 6GK5216-0HA00-2AS6

Technical Specifications

Official identification, interface, electrical, performance and environmental data for this SCALANCE XP216 Managed Switch.

01Product IdentityOfficial Siemens product data

ManufacturerSiemens

Order Number6GK5216-0HA00-2AS6

Product TypeSCALANCE XP216 Managed Switch

System FamilySCALANCE XP-200

02Port DataIndustrial Ethernet interfaces

10/100 Mbit/s Ports12 × M12; D-coded

Gigabit Ports4 × M12; X-coded

Total Network Ports16

Transfer Rates10 / 100 / 1000 Mbit/s

03Electrical DataSupply and connection ratings

Rated Supply24 V DC

Supply Range19.2 to 28.8 V DC

Current Consumption0.335 A maximum

Power Loss8 W

04Protection & FunctionsIndustrial installation data

Dimensions200 × 200 × 49 mm

Net Weight1.8 kg

MTBF at 40 °C> 49 years

Power-Supply Connections2 × 4-pin M12; A-coded

Siemens 6GK5216-0HA00-2AS6 Product Support

Frequently Asked Questions

Product-specific configuration, compatibility, application and ordering guidance for 6GK5216-0HA00-2AS6.

How many Ethernet ports are available on the 6GK5216-0HA00-2AS6?

The SCALANCE XP216 provides twelve D-coded M12 10/100 Mbit/s ports and four X-coded M12 Gigabit ports, for 16 network ports in total.

Which link speeds can the XP216 negotiate?

The switch supports 10, 100, and 1000 Mbit/s as appropriate for the port type and connected device.

How should redundant power be wired?

Use the documented redundant 24 V DC inputs within 19.2 to 28.8 V and allow for about 0.335 A maximum current and 8 W power consumption.

Which managed-network functions support plant availability?

The device supports PROFINET IO and ring-redundancy functions; configure topology, ring roles, device name, VLANs, and diagnostics to match the project.

How can the switch configuration be migrated?

Save the configuration and use a compatible C-PLUG where specified, then verify IP settings, PROFINET identity, port parameters, and redundancy status.

Which installation practices preserve the IP65 rating?

Use correctly coded M12 connectors, specified tightening torques, sealed unused ports, suitable grounding, and cable routing appropriate for the environment.

Which details should be matched when ordering a replacement?

Confirm 6GK5216-0HA00-2AS6, the 12 D-coded plus 4 X-coded port layout, power connector, supported approvals, and required security profile.
