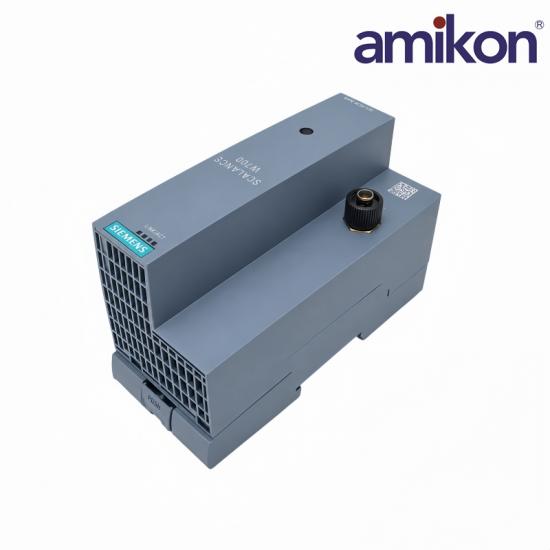

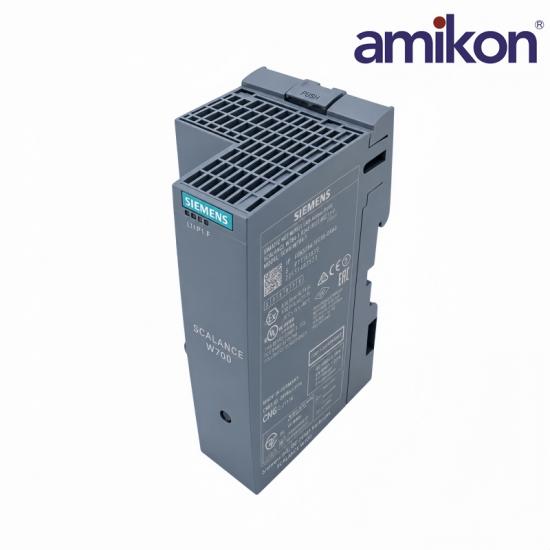

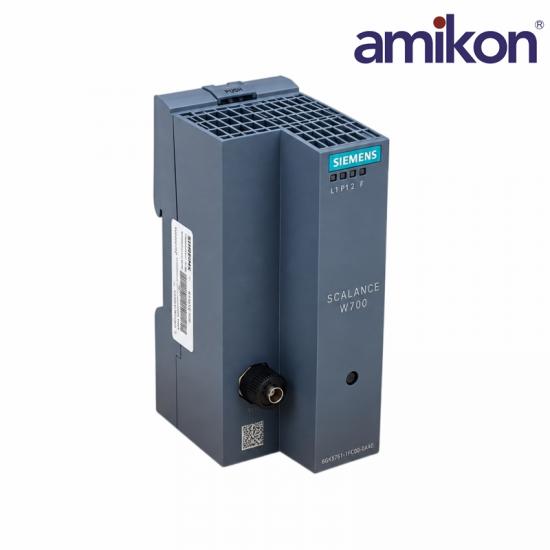

Siemens SCALANCE W-700

6GK5761-1FC00-0AA0

Price and Availability Inquiry

A control-cabinet Industrial Wireless LAN access point or client with one radio, dual-band 802.11 support and a Fast Ethernet RJ45 port.

Sales SupportDirect specialist contact

QuotationCurrent commercial details

DeliveryDHL · FedEx · UPS

Fast quotation support Send the model and required quantity directly to Lisa Lin using the contact options on the right.

Your AMIKON Contact

LL Lisa LinSales Specialist

WhatsApp +86 18965423501

Email sales7@amikon.cn

Request a Quote on WhatsApp Send Email Inquiry

For faster service, please include the model 6GK5761-1FC00-0AA0 and required quantity in your inquiry.

Siemens 6GK5761-1FC00-0AA0

Technical Specifications

Source-verified identification, configuration, installation and operating data for 6GK5761-1FC00-0AA0.

01Product IdentityOfficial Siemens MLFB data

ManufacturerSiemens

Order number6GK5761-1FC00-0AA0

Product nameSCALANCE W761-1 RJ45

Operating modesIWLAN access point or client

02Wireless & EthernetPublished communication data

Wireless standardsIEEE 802.11 a/b/g/h/n

Frequency bands2.4 GHz and 5 GHz

Maximum WLAN rate150 Mbit/s

Ethernet port1 × RJ45, 10/100 Mbit/s

03Power & HardwareCabinet integration data

Rated supply24 Vdc

Permitted range19.2 to 28.8 Vdc

Typical current / power0.15 A / 3.6 W

Antenna connection1 × R-SMA external antenna

04Installation & EnvironmentPublished limits

MountingDIN rail

Dimensions50 × 114 × 74 mm

ProtectionIP20

Operating temperature0 to +55 °C

Siemens 6GK5761-1FC00-0AA0 Product Support

Frequently Asked Questions

Product-specific configuration, compatibility, application and ordering guidance for 6GK5761-1FC00-0AA0.

Which operating mode should be selected for the W761-1?

Use access-point mode to provide an IWLAN cell or client mode to connect an Ethernet device to an existing wireless network.

How should the external antenna be chosen?

Match the R-SMA antenna, frequency band, gain, cable loss, installation environment and country approval requirements.

Which supply is required by 6GK5761-1FC00-0AA0?

Provide a stable 24 Vdc supply within 19.2–28.8 Vdc and size wiring for the published current and cabinet conditions.

How is the device mounted in a control cabinet?

Install it on DIN rail in an IP-rated enclosure with ventilation, grounding and antenna-cable routing appropriate for the site.

How can weak wireless performance be investigated?

Review channel use, band selection, antenna placement, signal level, interference, cable loss and the selected access-point or client mode.

Which security functions should be configured?

Apply the supported WPA/WPA2 and 802.1X settings required by the plant network and use controlled credentials and management access.

Which regional detail must be checked before ordering?

Confirm the intended country of operation and applicable radio approvals, especially for use outside the USA and Israel.
