Siemens SCALANCE X Accessories

6GK5992-1AL00-8AA0

Price and Availability Inquiry

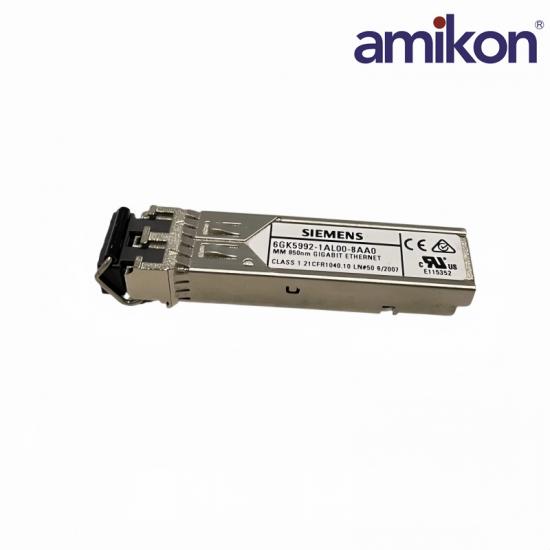

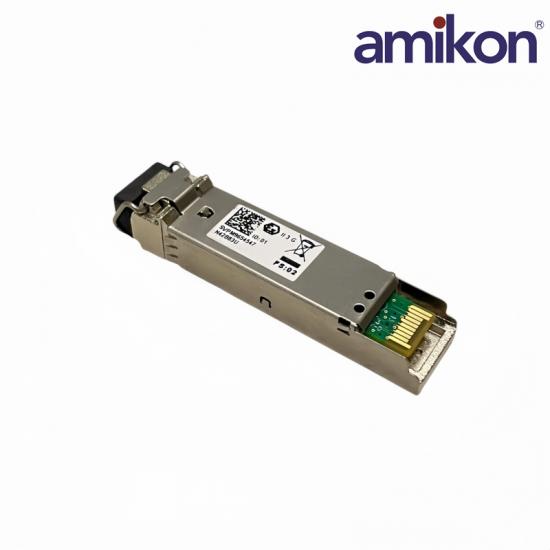

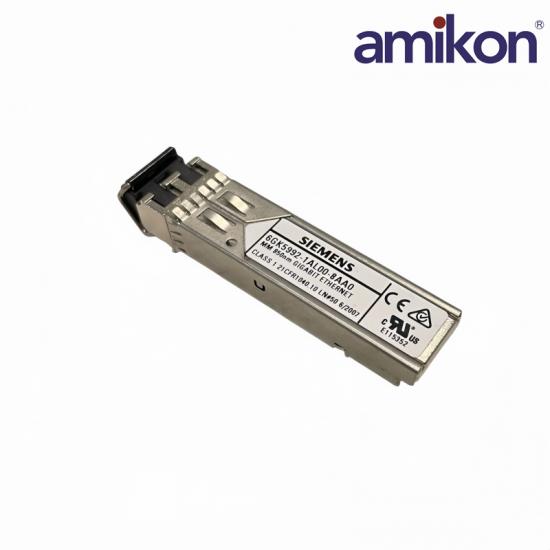

Siemens 6GK5992-1AL00-8AA0 is an SFP992-1 plug-in transceiver with one 1000BASE-SX LC multimode optical port for links up to 750 m.

Sales SupportDirect specialist contact

QuotationCurrent commercial details

DeliveryDHL · FedEx · UPS

Fast quotation support Send the model and required quantity directly to Lisa Lin using the contact options on the right.

Your AMIKON Contact

LL Lisa LinSales Specialist

WhatsApp +86 18965423501

Email sales7@amikon.cn

Request a Quote on WhatsApp Send Email Inquiry

For faster service, please include the model 6GK5992-1AL00-8AA0 and required quantity in your inquiry.

Siemens 6GK5992-1AL00-8AA0

Technical Specifications

Official Siemens interface, optical, environmental and mechanical data for the SFP992-1 transceiver.

01Product IdentityExact Siemens reference

ManufacturerSiemens

Part Number6GK5992-1AL00-8AA0

Type DesignationSFP992-1

DesignSFP plug-in module

02Optical InterfacePublished port data

Optical Ports1 × LC

Transmission Rate1000 Mbit/s

Transmission Method1000BASE-SX

Fiber Type / WavelengthMultimode / 850 nm

03Optical PerformancePublished link values

Link Range0.35–0.75 km

Transmit Power−9.5 to −2.5 dBm

Receiver Input Maximum−3 dBm

Receiver Sensitivity−17 dBm minimum

04Environment & SizePublished module data

Operating Temperature−40 to +85 °C

Relative Humidity95% max.; non-condensing

Protection RatingIP20

Dimensions / Weight14 × 9 × 57 mm / 0.02 kg

Siemens 6GK5992-1AL00-8AA0 Product Support

Frequently Asked Questions

Fiber selection, link distance, optical budget, SCALANCE compatibility, installation, diagnostics and ordering guidance for SFP992-1.

Which fiber type is required for SFP992-1?

Use multimode glass fiber with an LC connection for the 850 nm 1000BASE-SX interface.

What is the supported optical distance?

Siemens specifies a link range from 0.35 to 0.75 km depending on the multimode fiber type and link attenuation.

Can this module be used in any Ethernet switch?

Use it only in SCALANCE equipment and other hosts explicitly approved for SFP992-1; verify the host hardware and firmware compatibility list.

What optical levels should be checked during commissioning?

Confirm the transmitter output, receiver maximum input and minimum sensitivity against the calculated fiber loss and connector losses.

How is the transceiver installed?

Power and service the host according to its manual, insert the SFP until latched, connect cleaned LC fibers and avoid tight bend radii.

What does the +85 °C temperature note mean?

Siemens permits +85 °C only for a limited duration of 16 hours; use the normal equipment limits for continuous cabinet design.

What should be specified when ordering?

Provide 6GK5992-1AL00-8AA0, host SCALANCE model, fiber type, link distance, quantity and required spare strategy.
