Description：

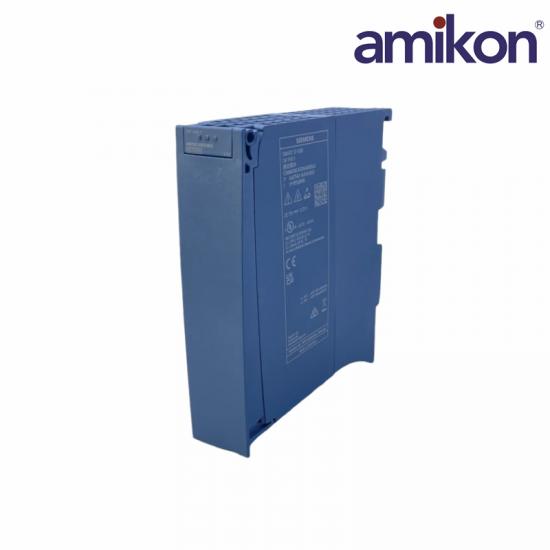

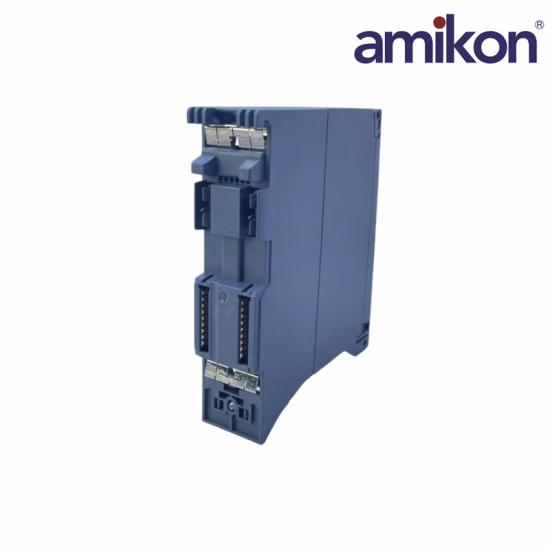

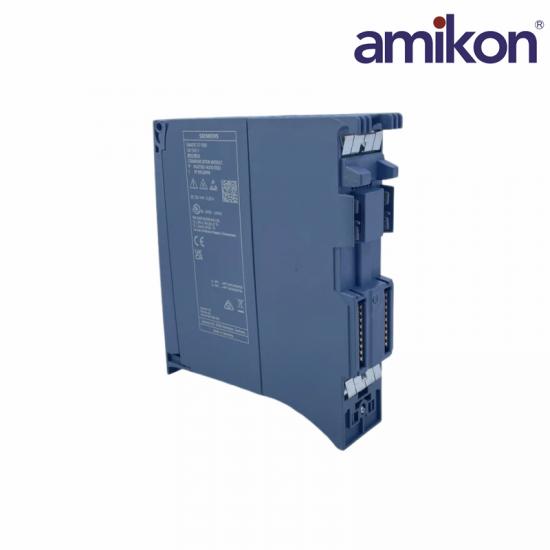

The Siemens 6GK7542-1AX10-0XE0 CM 1542-1 Communication Module is a SIMATIC NET communication module used to connect SIMATIC S7-1500 PLC systems to industrial Ethernet and PROFINET networks. The module supports operation as both a PROFINET IO Controller and PROFINET IO Device, providing reliable communication for systems, distributed I/O stations, and industrial network applications.

The CM 1542-1 supports multiple industrial communication protocols including TCP/IP, ISO-on-TCP, UDP, S7 Communication, IP broadcast/multicast, SNMP V1, and NTP time synchronization. With two RJ45 Ethernet ports supporting 100 Mbit/s transmission speed, it provides flexible connectivity for industrial Ethernet architectures.

Specification：

Frequently asked questions

Q1: What is the Siemens 6GK7542-1AX10-0XE0 module?

A: The Siemens 6GK7542-1AX10-0XE0 is an industrial communication module used for PROFINET networking applications

Q2: What type of connector does the 6GK7542-1AX10-0XE0 use?

A: The module uses an RJ45 Ethernet connector for PROFINET communication and network connection.

Q3: What is the maximum transfer speed of this communication module?

A: The Siemens 6GK7542-1AX10-0XE0 supports a data transfer speed of up to 100 Mbit/s, ensuring reliable industrial Ethernet communication.

Q4: What is the power supply requirement of the Siemens 6GK7542-1AX10-0XE0?

A: The module operates with a 15 V DC backplane bus supply voltage and has a voltage tolerance of ±3%.

Q5: What applications are suitable for the Siemens 6GK7542-1AX10-0XE0?

A: This communication module is suitable for industrial applications such as PLC networking, distributed I/O systems, machine , manufacturing lines, and PROFINET-based control systems.

Product Applications

Automotive Manufacturing: Real-time control of robots, servo drives, and vision systems via PROFINET in highly production lines.

Water Treatment and Environmental Protection: Connecting distributed pump stations, valves, and instruments to achieve cross-regional industrial Ethernet communication and centralized monitoring.

Food and Beverage Processing: Ensuring accurate delivery of production data and control commands in harsh industrial environments, such as high-speed operation scenarios like filling lines and packaging machines.

New Energy and Power: Centrally collecting status information from multiple inverters and pitch systems in wind and solar power plants and uploading it to a host computer system.
