Siemens SIMATIC Ident / ET 200pro

6GT2002-0HD01

Price and Availability Inquiry

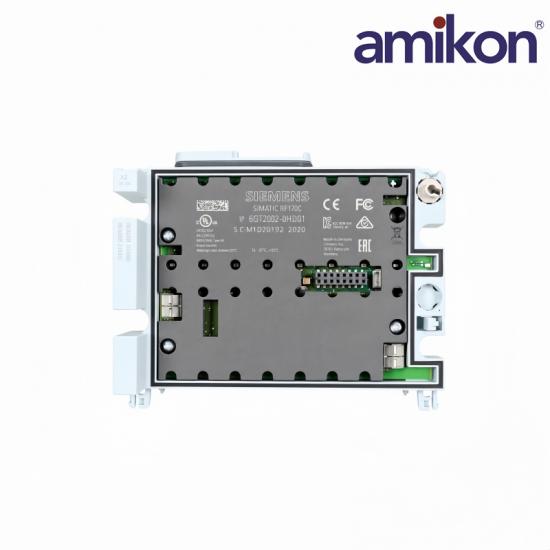

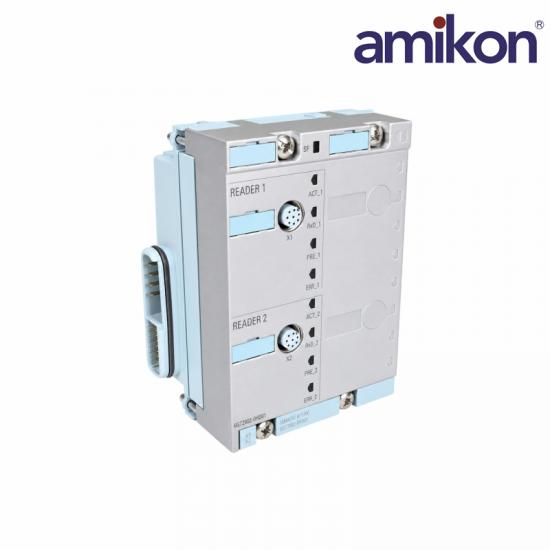

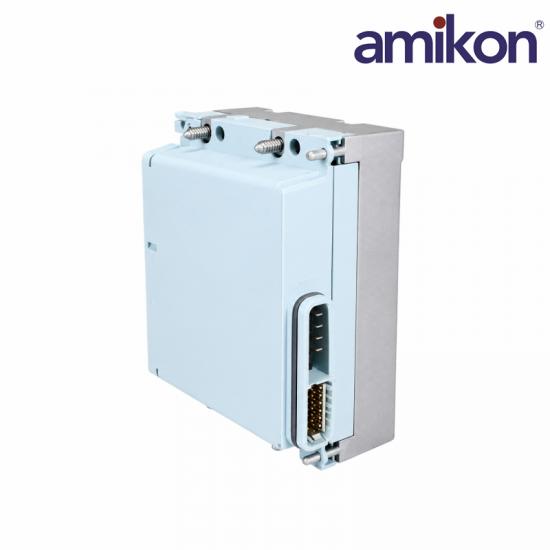

Siemens 6GT2002-0HD01 is the SIMATIC RF170C RFID communication module for ET 200pro, supporting two RS-422 or RS-232 reader connections.

Sales SupportDirect specialist contact

QuotationCurrent commercial details

DeliveryDHL · FedEx · UPS

Fast quotation support Send the model and required quantity directly to Lisa Lin using the contact options on the right.

Your AMIKON Contact

LL Lisa LinSales Specialist

WhatsApp +86 18965423501

Email sales7@amikon.cn

Request a Quote on WhatsApp Send Email Inquiry

For faster service, please include the model 6GT2002-0HD01 and required quantity in your inquiry.

Siemens 6GT2002-0HD01

Technical Specifications

Official Siemens interface, reader, electrical and environmental data for RF170C.

01Product IdentityExact Siemens reference

ManufacturerSiemens

Part Number6GT2002-0HD01

Product DesignationSIMATIC RF170C

Host SystemET 200pro

02Communication DataPublished interface limits

Host InterfacePROFIBUS DP-V1 / PROFINET IO

Reader Interfaces2 × M12

Connectable Readers2

Block Length2 words cyclic / 240 bytes acyclic

03Reader & Supply DataOfficial electrical values

RS-422 Cable Length1000 m maximum

RS-232 Cable Length30 m maximum

Supply Voltage24 V DC; 20–30 V range

Current Consumption130 mA typical; 1 A maximum

04Mechanical & EnvironmentPublished installation data

Electrical IsolationYes

Operating Temperature−25 to +55 °C

Protection RatingIP67

Dimensions (W × H × D)90 × 130 × 35 mm

Siemens 6GT2002-0HD01 Product Support

Frequently Asked Questions

Reader compatibility, serial-interface selection, ET 200pro integration, cable length, power planning, commissioning and ordering guidance for RF170C.

How many RFID readers can be connected to RF170C?

Two readers can be connected through the two M12 ports; confirm each reader type and its required serial interface before wiring.

When should RS-422 or RS-232 be used?

Use the interface supported by the reader. Siemens publishes up to 1000 m for RS-422 depending on the reader and 30 m maximum for RS-232.

How does RF170C communicate with the controller?

The module exchanges data through the ET 200pro backplane on PROFIBUS DP-V1 or PROFINET IO stations, using cyclic control words and acyclic data blocks.

Which software interface is used for commissioning?

Depending on the PLC platform, use the Ident profile, Ident blocks, RFID standard profile or the documented FB45 and FB55 functions.

How should the 24 V supply be sized?

The module uses about 130 mA without readers and can draw up to 1 A. Include the connected-reader current in the ET 200pro power budget.

What installation details preserve IP67 operation?

Use the specified ET 200pro base and M12 connectors, tighten and seal every connection, maintain protective earth and stay within the environmental limits.

What should be provided when ordering?

Send 6GT2002-0HD01, ET 200pro interface type, reader models, RS-422 or RS-232 cable lengths, base-module requirement and quantity.
