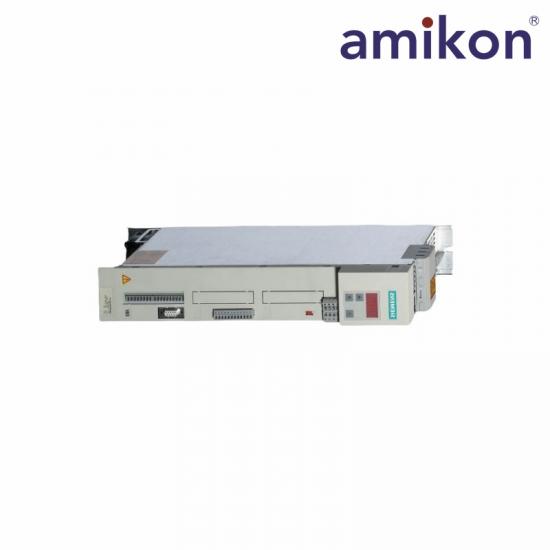

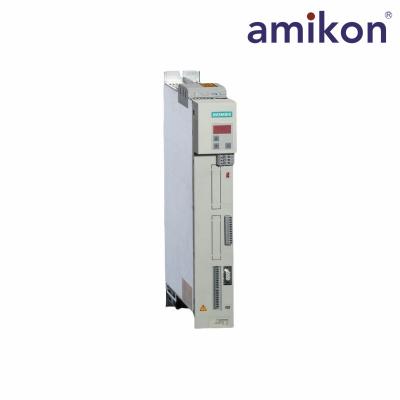

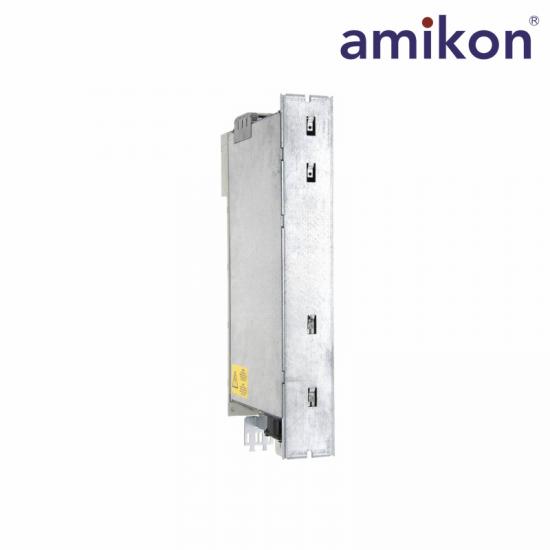

➱6SE7032-5FB87-2DA1 MASTERDRIVES BRAKING UNIT

SINAMICS/ SIMOVERT MASTERDRIVES braking module 675-810V DC, 200 kW degree of protection IP20 documentation on CD-ROM

Electric energy is fed into SIMOVERT MASTERDRIVES when a motoris decelerated. In order to prevent overvoltage tripping, a brakingresistor is used to convert this energy into heat. This resistor may be apart of the braking unit or it is connected to it.The braking unit is connected to the DC bus terminals of the drive.When the DC bus voltage reaches a pre-defined limit, the braking unitautomatically turns on and prevents the DC bus voltage from continuingto increase.The braking unit operates autonomously. The power supply of theelectronics is integrated in the unit.The braking unit is available in three frame sizes.

♦ frame size S, 5 kW to 10 kW:integrated braking resistor: for short braking operationexternal braking resistor: if the integrated braking resistor is not sufficient

♦ frame size A, 10 kW to 20 kW:integrated braking resistor: for short braking operationexternal braking resistor: if the integrated braking resistor is not sufficient 50 kW: external braking resistor

♦ frame size B, 100 kW to 200 kW: external braking resistor

Discounted price will be support if you buy big quantity of 6SE7032-5FB87-2DA1
