Description：

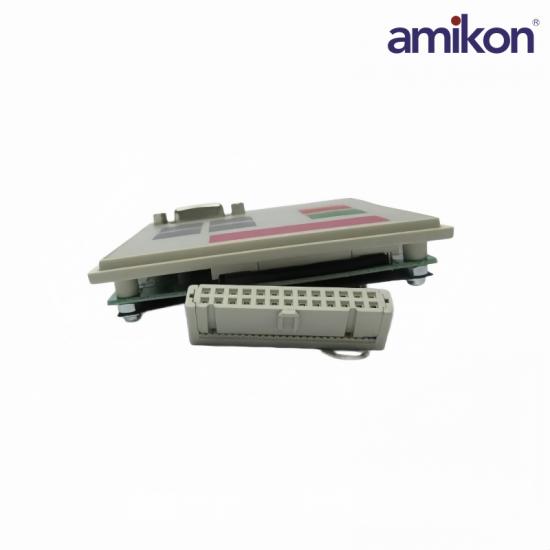

The Siemens 6SE7090-0XX84-2FA0 is an operating and parametering unit within the SIMOVERT MASTERDRIVES series. It is specifically engineered to be compatible with the Design A and B configurations, ensuring proper integration with existing systems.

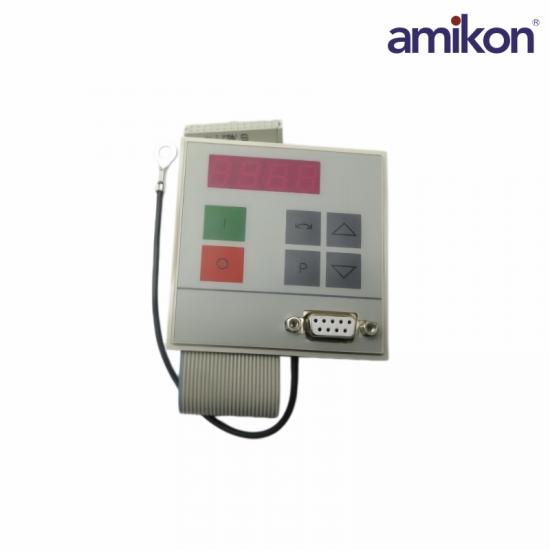

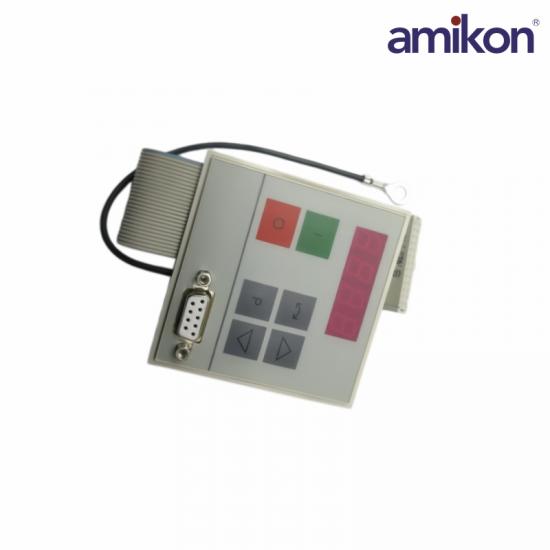

The unit incorporates six buttons that simplify operation and parameter settings, while a 4-digit LED display provides clear visibility of critical information. Weighing in at only 0.13 pounds (0.05 kilograms), it is lightweight and easily transportable, standing at a height of 5 inches, with a width of 4 inches, and a thickness of 2 inches (127 mm x 101.6 mm x 50.8 mm).

With the capacity to handle a rated phase of 3-phase, this unit supports a converter supply voltage of 660 to 690 Volts AC. Connectivity features include one USB port along with a 9-pin female connector and a 26-pin female ribbon cable connection, accommodating various interfacing needs.

Specification：

Frequently asked questions

Q1: What is the Siemens 6SE7090-0XX84-2FA0 used for?

A: This unit is an operating and parametering interface used to configure, monitor, and control SIMOVERT MASTERDRIVES systems.

Q2: Which systems is this unit compatible with?

A: It is compatible with SIMOVERT Masterdrives Design A and B converters.

Q3: What type of display does it have?

A: The 6SE7090-0XX84-2FA0 unit features a 4-digit LED display, providing clear parameter and status readings.

Q4: How many buttons are available for operation?

A: It includes 6 buttons, enabling easy navigation and parameter adjustments.

Q5: What are the 6SE7090-0XX84-2FA0 electrical requirements?

A: It supports 3-phase systems and works with converter supply voltages of 660 to 690 VAC.

Product Applications

Metallurgy and Steel Industry: Precise speed control for rolling mills, coiling machines, and conveyor belts ensures constant tension in the production line.

Papermaking and Printing: Utilizing its vector control capability in multi-unit synchronous drive systems, it enables smooth paper transmission.

Electricity and Energy: For large wind turbines and water pumps, it offers frequency conversion energy-saving renovations, as well as precise control for lifting machinery.

Chemical and Petroleum: It drives pumps, mixers, and compressors, providing high-reliability support for industrial continuous operation.

Textile Machinery: In complex textile production lines, it is responsible for the synchronous operation and dynamic response of multiple-axis motors.

Component main functions

Parameter configuration: Engineers can directly modify motor parameters, PID adjustment values, and communication addresses on the frequency converter through this panel.

Status diagnosis: Displays the current output frequency, current, voltage of the frequency converter, as well as the fault codes that occur (such as F001, F006, etc.), assisting in troubleshooting on-site.

Parameter copying: When replacing a frequency converter of the same model, the operation unit can be used to quickly copy parameters, shortening the downtime for maintenance.
