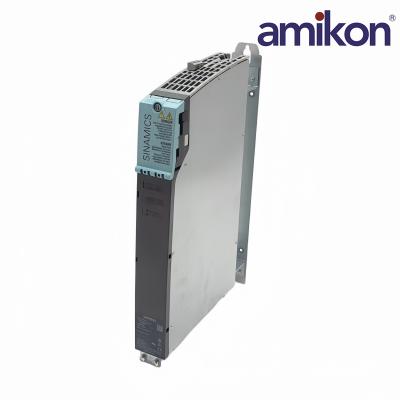

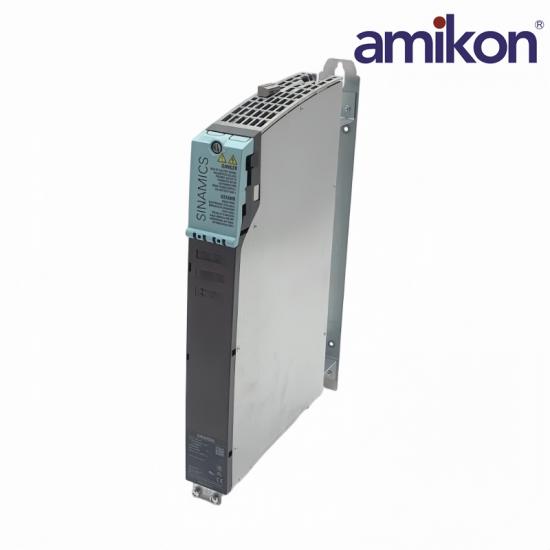

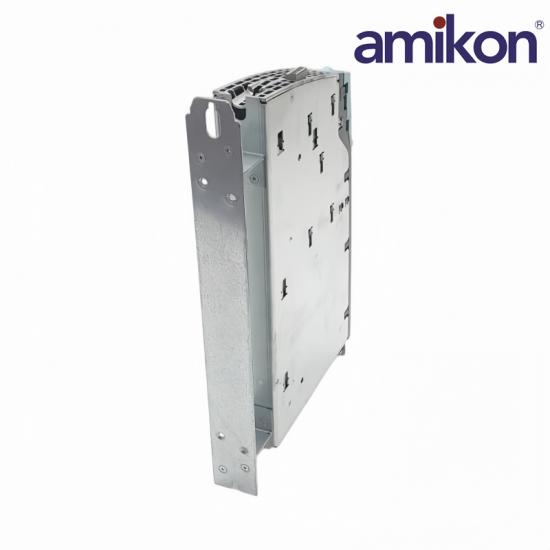

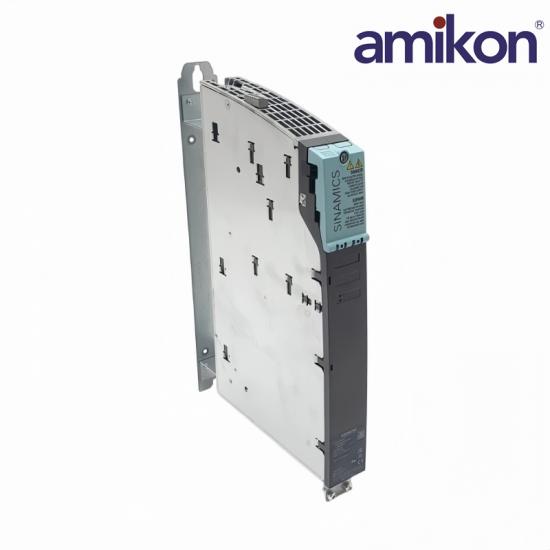

Siemens 6SL3100-1AE31-0AB1 SINAMICS Braking Module

6SL3100-1AE31-0AB1
6SL3100-1AE31-0AB1
6SL3100-1AE31-0AB1

Siemens 6SL3100-1AE31-0AB1 SINAMICS Braking Module

✉  INQUIRE NOW

SIEMENS · SINAMICS S120 / S220

6SL3100-1AE31-0AB1

SINAMICS Braking Module

MANUFACTURERSiemens
MODEL6SL3100-1AE31-0AB1
PART NUMBER6SL3100-1AE31-0AB1
PRODUCT TYPESINAMICS Braking Module
SYSTEM FAMILYSINAMICS S120 / S220
ORDER SUPPORTOfficial Product Data

INDUSTRIAL AUTOMATION SPARE PARTS PARTNER

20 Years of Experience in Industrial Automation Supply

AMIKON supplies industrial automation spare parts to maintenance, engineering and procurement teams worldwide. Our focus includes discontinued and hard-to-find DCS, PLC and TSI components, helping customers identify the correct model, source replacement parts and support urgent maintenance requirements.

Discontinued Parts SourcingModel Identification SupportGlobal Customer SupportIn-Stock Supply Support
  • Item NO.:

    6SL3100-1AE31-0AB1
  • Product Origin:

    Germany
  • Lead Time:

    IN STOCK
  • Brand/Manufature:

    Siemens
  • Product Origin:

    Germany
  • Lead Time:

    IN STOCK
  • Condition:

    Brand New And 100% Original
  • Certificate:

    Coo

Siemens SINAMICS S120 / S220

6SL3100-1AE31-0AB1

Price and Availability Inquiry

Siemens 6SL3100-1AE31-0AB1 is a SINAMICS Braking Module in booksize format with 600 V DC input and peak braking output of 100 kW for 2 s.

Sales SupportDirect specialist contact
QuotationCurrent commercial details
DeliveryDHL · FedEx · UPS
Fast quotation support Send the model and required quantity directly to Lisa Lin using the contact options on the right.

Your AMIKON Contact

LL Lisa LinSales Specialist
WhatsApp +86 18965423501
Request a Quote on WhatsApp Send Email Inquiry
For faster service, please include the model 6SL3100-1AE31-0AB1 and required quantity in your inquiry.

SIEMENS 6SL3100-1AE31-0AB1

Technical Specifications

Official identification, electrical, I/O, supply and mechanical data for this SINAMICS Braking Module.

01Product IdentityOfficial Siemens product data
ManufacturerSiemens
Article Number6SL3100-1AE31-0AB1
Product DesignationSINAMICS Braking Module
Product FormatBooksize
02Electrical DataPublished electrical ratings
DC Link Voltage510–720 V DC
Peak Braking Power100 kW
Peak Duration2 s
Continuous Rated Power1.5 kW
03I/O & SupplyPublished interface and supply data
Digital Inputs2
Digital Outputs2
24 V Supply Current0.50 A max.
Output Load Current100 mA max.
04Mechanical DataPublished dimensional values
Width50 mm
Height380 mm
Depth270 mm
Net Weight4.1 kg

SIEMENS 6SL3100-1AE31-0AB1 PRODUCT SUPPORT

Frequently Asked Questions

Official identification, configuration, application and ordering guidance for 6SL3100-1AE31-0AB1.

01

How is the module identified?

Use the complete Siemens article number 6SL3100-1AE31-0AB1 and the product designation SINAMICS Braking Module.

02

Which DC-link voltage range applies?

The published DC-link voltage range is 510–720 V DC.

03

How much peak braking power is available?

The published peak braking power is 100 kW for 2 seconds.

04

Which continuous braking power is published?

The continuous rated braking power is 1.5 kW.

05

How many digital inputs and outputs are provided?

The module provides 2 digital inputs and 2 digital outputs.

06

Which 24 V and output-current limits apply?

Maximum 24 V supply current is 0.50 A; maximum load current per digital output is 100 mA.

07

Which dimensions and weight apply?

The module measures 50 × 380 × 270 mm and has a net weight of 4.1 kg.
