Brand/Manufature:
SiemensProduct Origin:
GERMANYLead Time:
IN STOCKCondition:
Brand New And 100% OriginalCertificate:

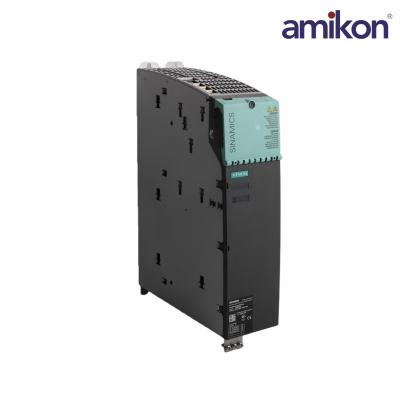

CooPart Number：6SL3120-2TE21-8AA3
Weight：15.00 lbs (6.80 kg)
Module Type：Double Motor Module
Continuous Output Current：2 × 18 A
Nominal Base Current：2 × 15.3 A
Short-Term Duty Current：2 × 24 A (40% cycle)
Maximum Instantaneous Current：2 × 36 A
Voltage Output Range：Up to 0.717 × DC-link voltage
Peak DC-Link Current Capacity：43 A
Voltage Range of DC-Link：510–720 V DC
Capacitance of DC Circuit：705 µF
Auxiliary Power Supply Voltage：24 V DC (operational range 20.4–28.8 V)
Energy Dissipation：351.2 W (total losses included)
Operating Pulse Frequency：4 kHz standard; 16 kHz with derating
Air Cooling Flow Rate：56 m³/h
Maximum Heat Sink Temperature：Up to 90 °C

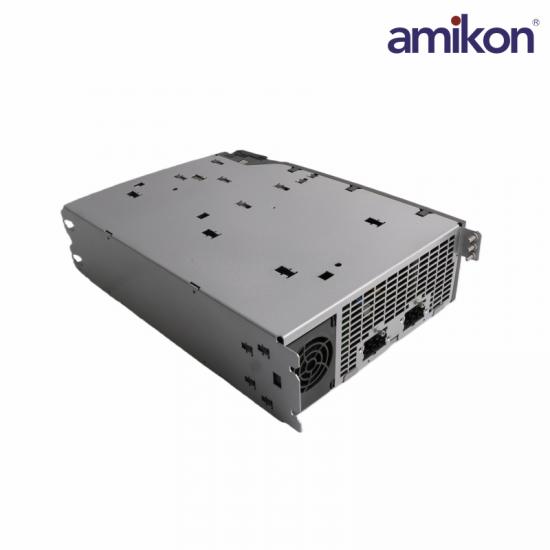

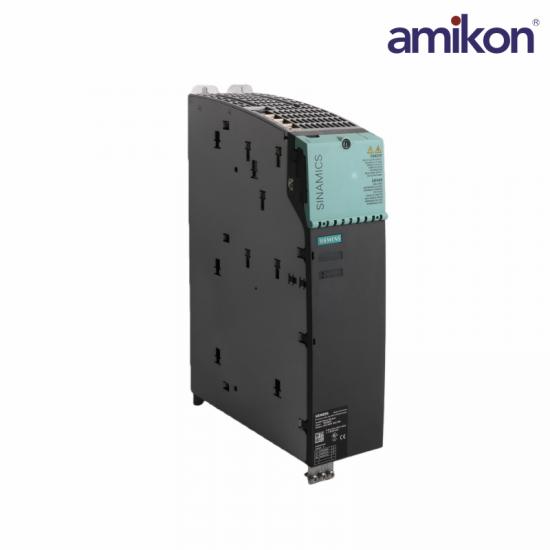

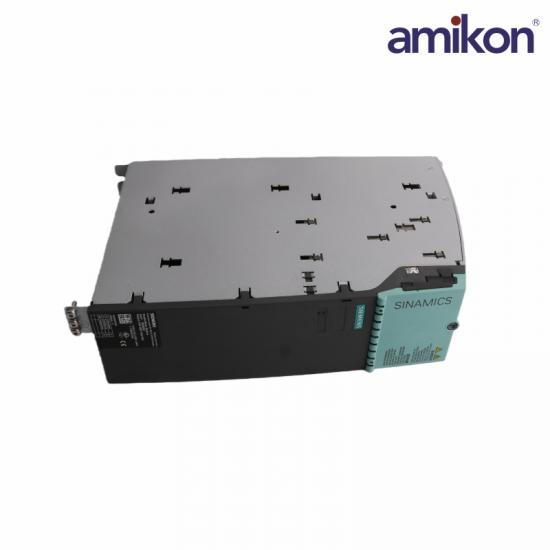

Siemens 6SL3120-2TE21-8AA3, a robust component in the SINAMICS lineup, functions as a double module in a compact booksize format. It produces a continuous output current of 2 × 18 amperes, while its nominal base current stands at 2 × 15.3 amperes, ensuring adequate power for various applications. In temporary high-performance cases, the module can reach a short-term duty current of 2 × 24 amperes, with the maximum instantaneous current peaking at 2 × 36 amperes.
This module operates effectively within a DC-link voltage range of 510 to 720 volts; it can deliver voltage outputs up to 0.717 times this DC-link voltage. The peak DC-link current capacity is rated at 43 amperes, and the capacitance of the direct current circuit is measured at 705 microfarads. The 6SL3120-2TE21-8AA3 module requires 24 volts DC for auxiliary power supply but is operational within a range of 20.4 to 28.8 volts.
