Description：

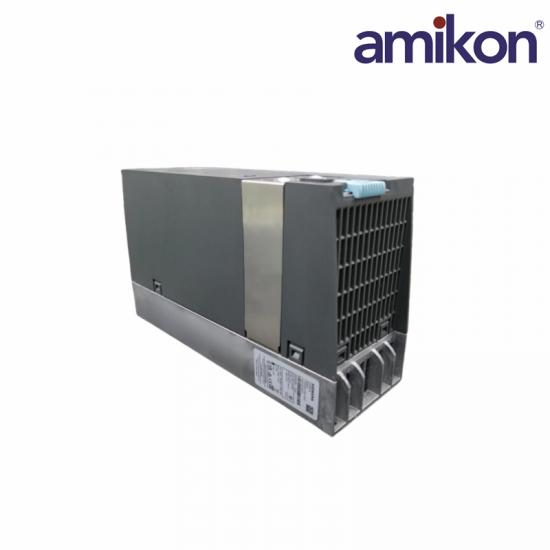

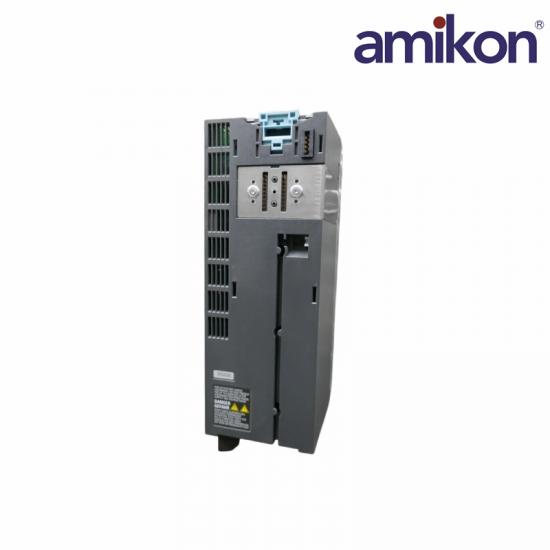

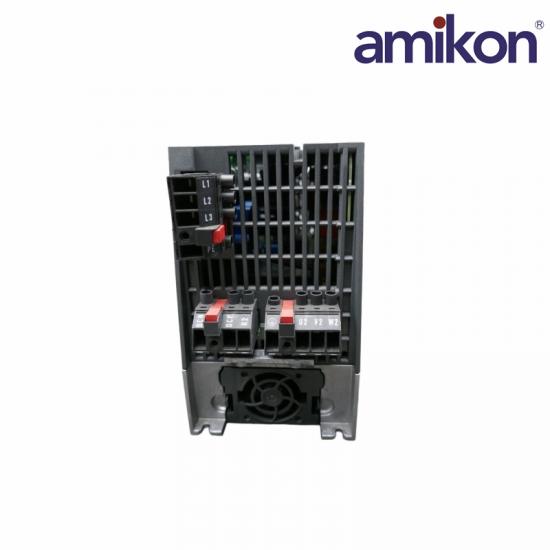

The Siemens 6SL3210-1PE21-4UL0 is a SINAMICS PM240-2 Power Module designed for industrial motor control. This unfiltered unit operates on 3 AC 380--480 V supplies and features a built-in braking chopper. It supports a rated output of 5.5 kW for low overload and 4 kW for high overload

This power module operates with a three-phase AC input voltage of 380 to 480 V ±10%, making it suitable for a wide range of industrial power networks. With a 4 kHz pulse frequency, the module delivers smooth motor operation while maintaining stable drive performance. Its efficient design minimizes energy losses, with a typical power loss of only 0.15 kW, helping reduce heat generation and improve overall system efficiency.

Specification：

Frequently asked questions

Q1: What is the Siemens 6SL3210-1PE21-4UL0 Power Module?

A: The 6SL3210-1PE21-4UL0 is a power module used in Siemens drive systems to convert incoming AC power into controlled output power for motor operation and industrial motion control applications.

Q2: What type of input power does the 6SL3210-1PE21-4UL0 require?

A: The 6SL3210-1PE21-4UL0 module is designed for three-phase AC (3 AC) input power, making it suitable for industrial power distribution systems.

Q3: What is the 6SL3210-1PE21-4UL0 rated input voltage range?

A: The 6SL3210-1PE21-4UL0 power module operates with a line voltage of 380 to 480 V AC ±10%, allowing it to accommodate normal industrial voltage variations.

Q4: What does the ±10% voltage tolerance mean?

A: The ±10% tolerance means the module can operate reliably with input voltages ranging approximately from 342 V AC to 528 V AC, depending on system conditions.

Product Applications

Water treatment and environmental protection plants: Primarily used for small and medium-sized industrial water pumps, blowers, and constant pressure water supply systems. In low overload (LO) mode, it can perfectly drive 5.5 kW fan and pump loads, achieving variable frequency energy saving and emission reduction.

Packaging and printing machinery plants: Used for material feeding and winding control in bag making machines, case packing machines, label printing machines, etc. The G120's powerful vector control capability ensures constant tension of paper and plastic film at different production speeds.

Automotive manufacturing and machine tool processing plants: Responsible for smooth motor control in automotive assembly lines and machine tool auxiliary axes (such as cutting fluid pumps, chip conveyors, and small conveyor tracks). Its excellent anti-interference and low failure rate effectively avoid huge losses caused by unexpected production line downtime.

Plastics and rubber processing plants: Widely used for power control of small injection molding machines, extruder feeding devices, and mixing machines.

Lifting and material handling plants: Used for smooth speed regulation of small overhead cranes, elevators, or trolleys, ensuring smooth material movement and preventing swaying.
