Siemens SINAMICS G120XA

6SL3220-1YD36-0UB0

Price and Availability Inquiry

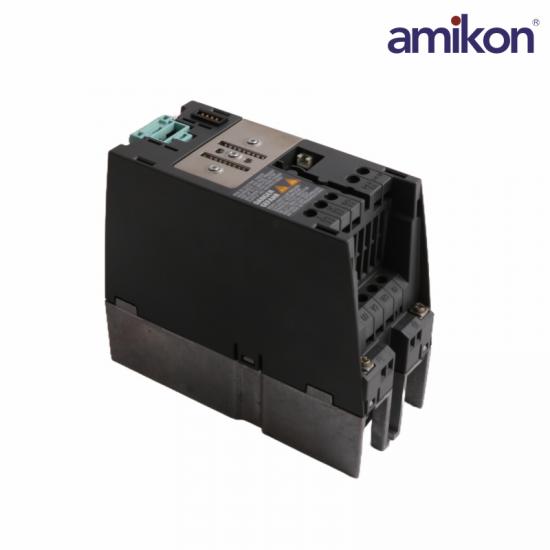

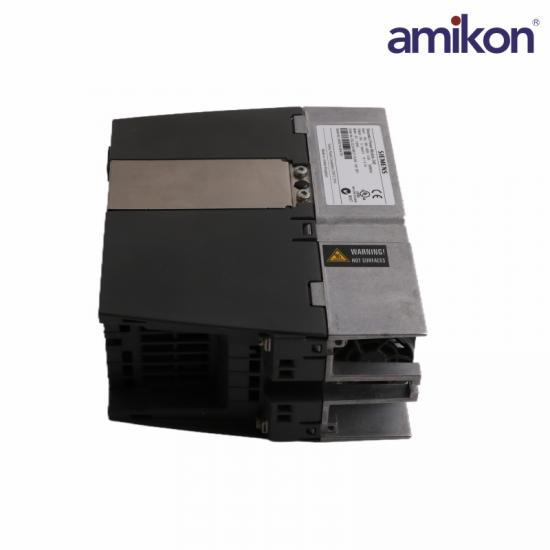

The Siemens 6SL3220-1YD36-0UB0 is a 37 kW SINAMICS G120XA converter for three-phase 380–440 V AC supply, with integrated Modbus RTU, BACnet MS/TP and USS serial communication.

Sales SupportDirect specialist contact

QuotationCurrent commercial details

DeliveryDHL · FedEx · UPS

Fast quotation support Send the model and required quantity directly to Lisa Lin using the contact options on the right.

Your AMIKON Contact

LL Lisa LinSales Specialist

WhatsApp +86 18965423501

Email sales7@amikon.cn

Request a Quote on WhatsApp Send Email Inquiry

For faster service, please include the model 6SL3220-1YD36-0UB0 and required quantity in your inquiry.

Siemens 6SL3220-1YD36-0UB0

Technical Specifications

Identification, configuration, performance and ordering data for the SINAMICS G120XA converter.

01Product IdentitySiemens drive order data

ManufacturerSiemens

Article Number6SL3220-1YD36-0UB0

DesignationSINAMICS G120XA

Rated Power37 kW

02Input & OverloadManufacturer electrical data

Input Supply3 AC 380 V −20% to 440 V +10%

Overload Duty110% for 60 s per 300 s cycle

Rated Output Current68 A at 400 V

Output Frequency0–240 Hz (vector control)

03Interfaces & I/OIntegrated configuration

Serial ProtocolsModbus RTU / BACnet MS/TP / USS

Digital Inputs6

Digital Outputs4

Analog I/O2 inputs + 2 outputs

04Mechanical & ThermalSiemens G120XA technical data

Operating Temperature−20 to +60 °C

Unit Weight18.4 kg

Dimensions (H × W × D)472 × 200 × 239 mm

Motor Temperature Input1

Siemens 6SL3220-1YD36-0UB0 Product Support

Frequently Asked Questions

Product-specific configuration, application and ordering guidance for 6SL3220-1YD36-0UB0

Which supply range should be checked before installing this drive?

Check that the three-phase feed falls within 380 V −20% to 440 V +10% and follow the Siemens installation instructions for protection and wiring.

Can the G120XA communicate over Modbus RTU?

Yes. Siemens lists integrated Modbus RTU alongside BACnet MS/TP and USS; set the protocol and serial parameters for the host network.

How many control I/O channels are built in?

The product description lists 6 digital inputs, 4 digital outputs, 2 analog inputs and 2 analog outputs.

Is a local operator panel supplied with this order code?

No operator panel is included in the listed configuration. Specify the required panel separately if local operation is needed.

Which enclosure rating applies to the converter?

The listed converter is IP20, so assess cabinet protection and environmental conditions before installation.

Which overload duty is published for this model?

Siemens states 110% for 60 seconds in a 300-second cycle; verify the motor duty cycle against this rating.

Which dimensions matter when replacing an existing unit?

The FSD frame is listed as 472 × 200 × 239 mm (H × W × D); also check clearance and cable routing.
