Part Number: 6SL3525-0PE17-5AA1

Manufacturer: SIEMENS

Type: Variable Speed Drives

Input:

Number of Phases: 3 AC

Line Voltage: 380 to 500 V ±10%

Line Frequency: 47 to 63 Hz

Rated Current: 2.10 A

Output:

Number of Phases: 3 AC

Rated Voltage: 400 V

Rated Power: 0.75 kW

Rated Current (IN): 2.20 A

Maximum Output Current: 4.40 A

Pulse Frequency: 4 kHz

Output Frequency for Vector Control: 0 to 200 Hz

Output Frequency for V/f Control: 0 to 650 Hz

Operating Temperature: -10 to 55 °C (14 to 131 °F)

Transport Temperature: -40 to 70 °C (-40 to 158 °F)

Storage Temperature: -40 to 70 °C (-40 to 158 °F)

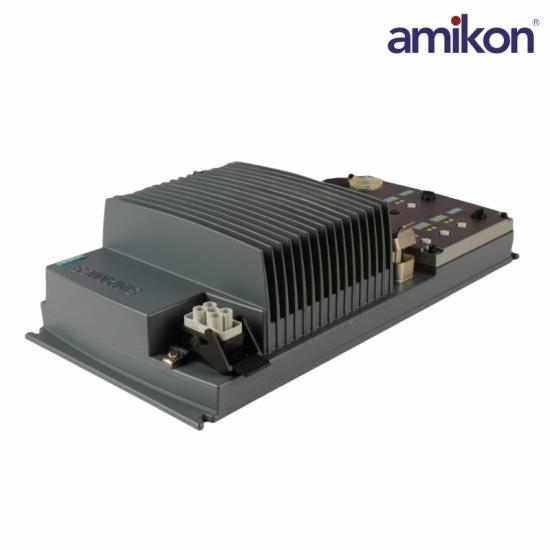

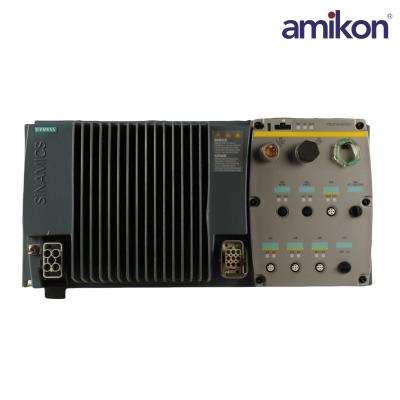

The SIEMENS 6SL3525-0PE17-5AA1 is a high-performance variable speed drive (also known as a frequency converter or inverter) designed for precise control of three-phase asynchronous motors in industrial applications. Belonging to the SINAMICS G120C series, this drive combines compact design with robust functionality, offering efficient motor control and energy savings across a wide range of power outputs.

Engineered for flexibility and ease of integration, the 6SL3525-0PE17-5AA1 supports various control modes including V/f control, vector control without encoder, and closed-loop vector control with encoder feedback, allowing optimal performance for applications requiring smooth start-up, speed regulation, and torque control.
