Siemens SINAMICS G120D

6SL3525-0PE27-5AA1

Price and Availability Inquiry

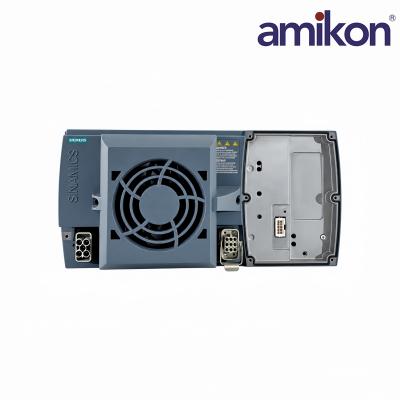

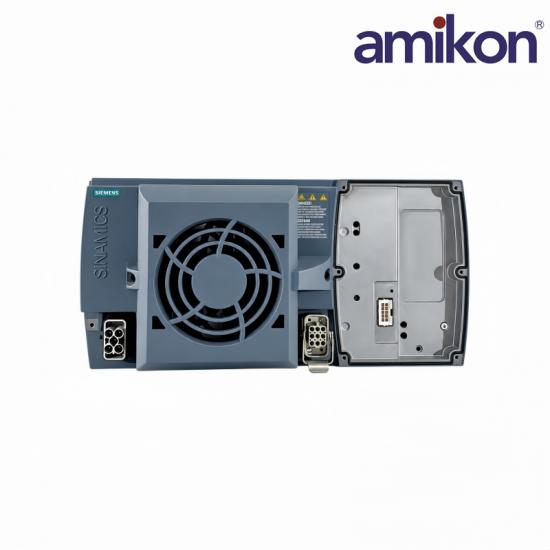

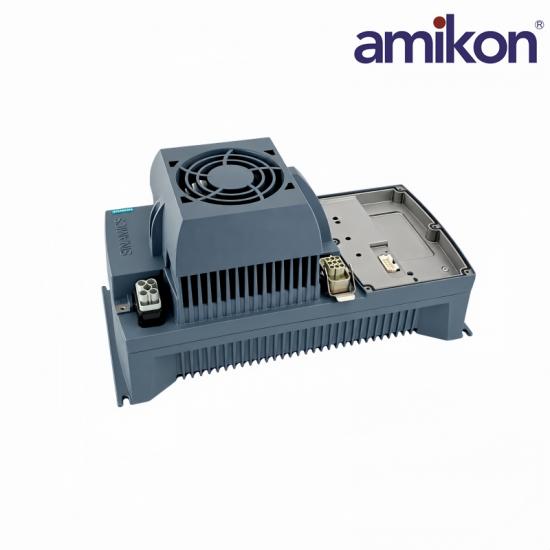

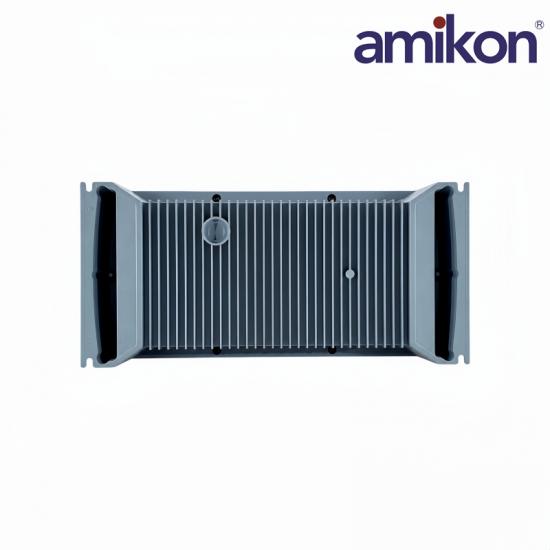

The Siemens 6SL3525-0PE27-5AA1 is a SINAMICS G120D PM250D Power Module designed for SINAMICS G120D applications.

Sales SupportDirect specialist contact

QuotationCurrent commercial details

DeliveryDHL · FedEx · UPS

Fast quotation support Send the model and required quantity directly to Lisa Lin using the contact options on the right.

Your AMIKON Contact

LL Lisa LinSales Specialist

WhatsApp +86 18965423501

Email sales7@amikon.cn

Request a Quote on WhatsApp Send Email Inquiry

For faster service, please include the model 6SL3525-0PE27-5AA1 and required quantity in your inquiry.

Siemens 6SL3525-0PE27-5AA1

Technical Specifications

Official identification, interface, electrical and installation data for SINAMICS G120D PM250D Power Module.

01Product IdentityExact Siemens drive data

ManufacturerSiemens

Order Number6SL3525-0PE27-5AA1

Product DesignationPM250D Power Module

Product FamilySINAMICS G120D

02Rated DataOfficial electrical data

Input3 AC 380–500 V ±10%

Input Frequency47–63 Hz

Rated Power7.5 kW

Rated Output Current19.0 A

03Performance DataOfficial converter data

Maximum Output Current38.0 A

Pulse Frequency4 kHz

Efficiency>95%

Power Loss at Rated Output0.291 kW

04Installation DataOfficial environmental data

Cooling Air Requirement0.012 m³/s (0.42 ft³/s)

Max. Motor Cable15 m shielded / 30 m unshielded

Net Weight8.8 kg

Installation AltitudeUp to 1000 m without derating

Siemens 6SL3525-0PE27-5AA1 Product Support

Frequently Asked Questions

Compatibility, application, installation and ordering guidance for 6SL3525-0PE27-5AA1.

Which electrical ratings must match before selecting this PM250D?

Confirm a three-phase 380–480 V supply, 47–63 Hz input, 7.5 kW motor duty and the documented 19.0 A rated output current.

Does 6SL3525-0PE27-5AA1 include the Control Unit?

No. Siemens identifies this article as the PM250D Power Module without a Control Unit, so the compatible CU and project configuration must be checked separately.

How does the integrated Class A filter affect installation planning?

Use the manufacturer EMC and cable-routing instructions for the installed G120D system; the integrated filter does not remove the need for correct shielding and grounding.

Can this module be mounted inside a conventional cabinet without review?

The IP65 module is designed for wall mounting, but cooling clearance, ambient conditions, cable glands and protective devices still need engineering verification.

Which frame and mechanical details control replacement compatibility?

Match frame size FSC, connector arrangement, mounting points and the complete 6SL3525-0PE27-5AA1 label before exchange.

How should commissioning data be transferred to a replacement?

Back up the Control Unit parameters and motor data, document wiring and safety functions, then commission the replacement under controlled conditions.

Which order information prevents a wrong G120D variant?

Include the complete order number, motor rating, input voltage, Control Unit type, option codes and clear nameplate photos.
