Description：

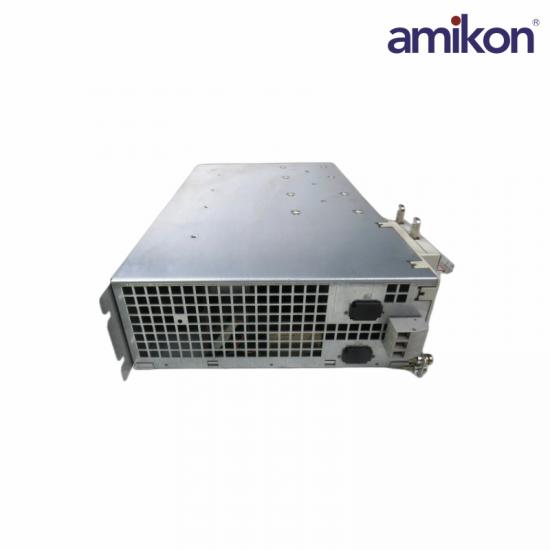

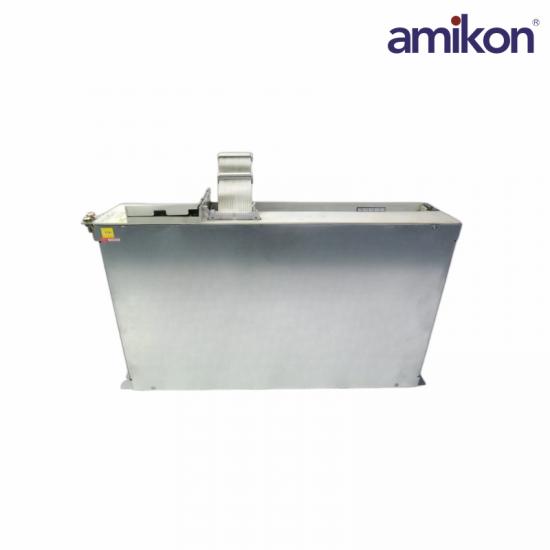

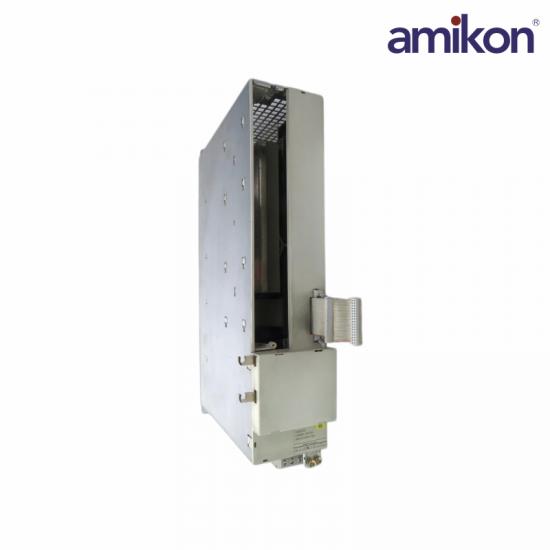

The Siemens 6SN1123-1AA00-0DA0 power module is part of the SIMODRIVE series and specifically crafted for CNC applications. It accommodates a single axis and can deliver robust performance across various motor types. Internally, the heat dissipation system is built into the module to ensure efficient operation under load. For motor control, it supports 30 Amps for both asynchronous and 1-phase motors while being rated for up to 40 Amps with 1FT5 motors and 28 Amps for 1TF6 types. It meets high-demand industrial needs with a rated power module current of 80 Amps.

The 6SN1123-1AA00-0DA0 power device's operating conditions are optimized for altitudes below 1000 meters, allowing it to function effectively in standard environments. Operating temperatures range from 0 to 55 degrees Celsius, while it can be safely stored in conditions ranging from -25 to 55 degrees Celsius. The device's shipping weight is approximately 17 pounds, making it a manageable component for installation in industrial settings.

Specification：

Frequently asked questions

Q1: What is the Siemens 6SN1123-1AA00-0DA0 Power Module used for?

A1: The Siemens 6SN1123-1AA00-0DA0 Power Module is a SIMODRIVE power supply module designed to provide DC bus power for servo and spindle drive systems in CNC machines and industrial motion control applications.

Q2: What is the operating temperature range of the 6SN1123-1AA00-0DA0 power module?

A2: The 6SN1123-1AA00-0DA0 module is designed to operate within a temperature range of 0°C to +55°C (32°F to +131°F), ensuring reliable performance in industrial environments.

Q3: What is the storage temperature range of the 6SN1123-1AA00-0DA0 module?

A3: The 6SN1123-1AA00-0DA0 storage temperature range is -25°C to +55°C (-13°F to +131°F), allowing safe transportation and storage before installation.

Q4: How many axes does the 6SN1123-1AA00-0DA0 support?

A4: This 6SN1123-1AA00-0DA0 power module is configured for 1-axis operation, providing power for a single connected drive axis.

Q5: What is the 6SN1123-1AA00-0DA0 rated asynchronous motor current?

A5: The 6SN1123-1AA00-0DA0 module supports a rated asynchronous motor current of 30 A, making it suitable for demanding motor control applications.

Product Applications

Precision CNC machine tools: Widely used in lathes, milling machines, machining centers, and large-scale production lines.

Automotive manufacturing plants: Servo control units on body welding, stamping, and final assembly lines.

Heavy-duty machining: Driving high-torque spindle motors and feed axes.

Metalworking and packaging machinery: Various processing equipment with strict requirements for dynamic response and positioning accuracy.
