Manufacturer: Siemens

Product Line: SIMODRIVE

Part Number: 6SN1151-1BX20-3AE0

Name: Control Module

Module Type: Universal Control Module

Weight: 2.00 lbs (0.91 kg)

Controlled Axes: 2

Control Type: Closed-loop

Interface: Analog and Digital

Voltage Range: 24 V DC

Current Consumption: 1.5 A

Protection Class: IP20

Cooling Method: Internal Fan

Operating Temperature: 0–40°C

Storage Temperature: –25–70°C

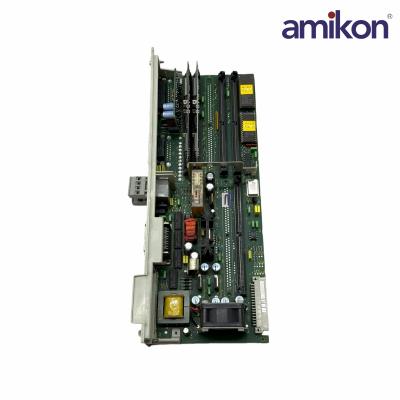

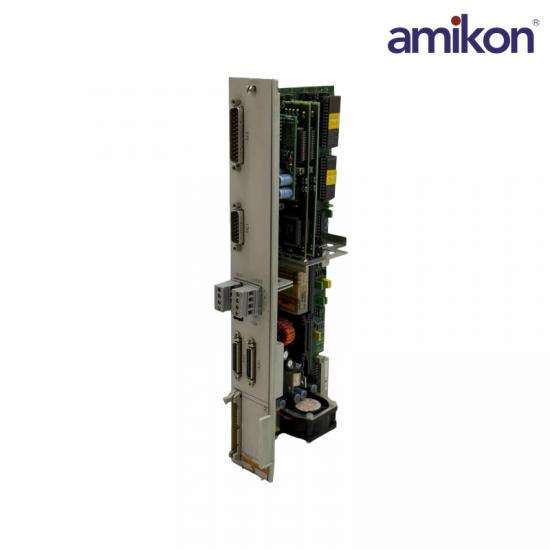

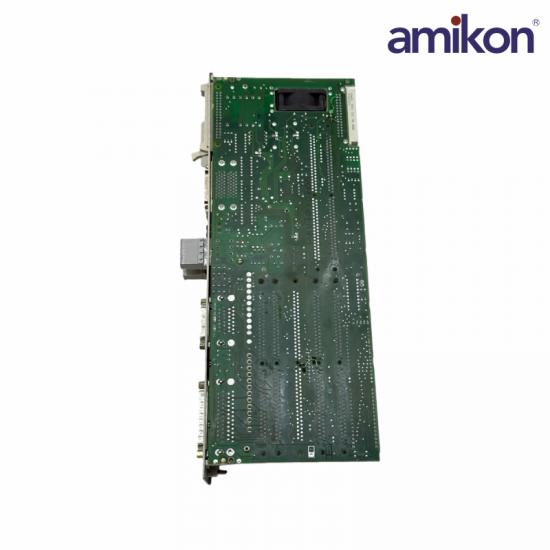

The Siemens 6SN1151-1BX20-3AE0 is a control module that serves as an integral part of the SIMODRIVE system. This unit supports a closed-loop control mechanism for managing two distinct axes, making it ideal for precise motion control applications. The module can accommodate both analog and digital interfaces, allowing it to integrate seamlessly into various setups.

Operating with a voltage supply of 24 V DC, the control module draws a current of 1.5 A. It is equipped with an internal fan for adequate cooling, ensuring reliable performance even under load. The physical dimensions of the module are 380 mm in width, 480 mm in depth, and 200 mm in height, contributing to a manageable weight of 2.5 kg. Its IP20 protection classification indicates that it is intended for use in non-hazardous environments, providing basic protection against solid objects larger than 12.5 mm.

Frequently asked questions：

Q1: What is the Siemens 6SN1151-1BX20-3AE0?

A: The Siemens 6SN1151-1BX20-3AE0 is a Universal Control Module designed for drive control and applications.

Q2: What is the operating voltage of the Siemens 6SN1151-1BX20-3AE0?

A: The Siemens 6SN1151-1BX20-3AE0 operates on 24 V DC.

Q3: How much current does the Siemens 6SN1151-1BX20-3AE0 consume?

A: The Siemens 6SN1151-1BX20-3AE0 has a current consumption of 1.5 A.

Q4: What is the protection class of the Siemens 6SN1151-1BX20-3AE0?

A: The Siemens 6SN1151-1BX20-3AE0 has a protection class of IP20.
