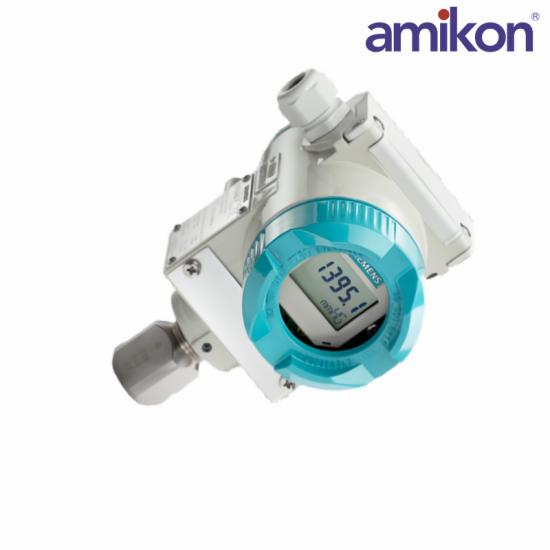

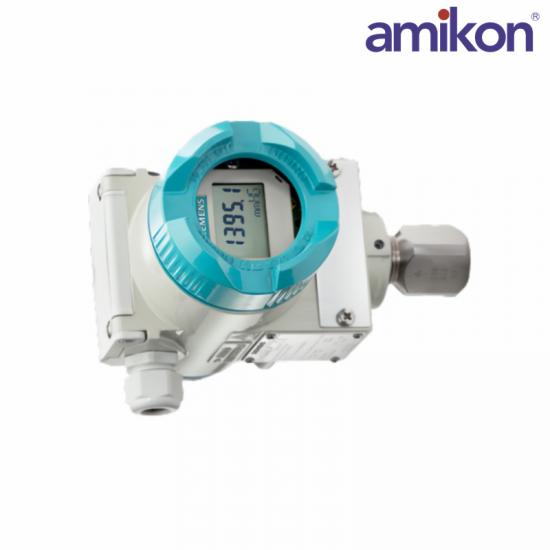

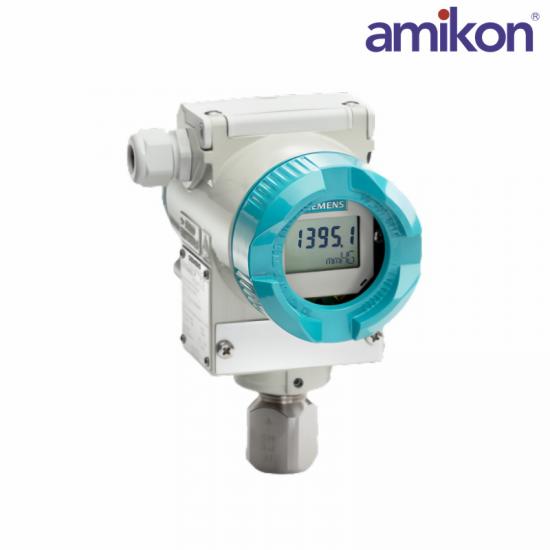

The SIEMENS 7MF0300-1TE01-5AF2-Z is a pressure transmitter designed for industrial process control applications. This device is part of the SITRANS P320 series, known for its robust performance in demanding environments. It is specifically used to measure gauge pressure and offers a wide range of applications across various industries, including chemical, oil & gas, and water treatment.

7MF0300-1TE01-5AF2-Z Gauge Pressure Measurement: Measures the pressure relative to atmospheric pressure.

It supports a range of pressure measurements up to 63 bar (914 psi), suitable for most medium-pressure applications.

The 7MF0300-1TE01-5AF2-Z  is made with high-quality stainless steel (316L/1.4404), making it resistant to corrosion and ensuring longevity in harsh environments.

The diaphragm is also made from stainless steel, which helps maintain high accuracy and reliability over time.

The 7MF0300-1TE01-5AF2-Z transmitter offers a high accuracy with a 5-point factory calibration for precise measurement.

The 7MF0300-1TE01-5AF2-Z unit is equipped with a die-cast aluminum housing, making it durable and capable of withstanding physical stresses in industrial environments.

It includes a glass window for easy display visibility and an IP65 rating for protection against dust and water ingress.

It uses the HART communication protocol, making it compatible with a wide range of industrial control systems.

The 7MF0300-1TE01-5AF2-Z transmitter features a female thread of 1/2-14 NPT, making it versatile and easy to install in various systems.

It does not include explosion-proof (Ex) certifications, which means it is intended for non-hazardous environments.

The 7MF0300-1TE01-5AF2-Z device operates within a broad temperature range, typically -40°C to +85°C, making it suitable for both indoor and outdoor installations.

This 7MF0300-1TE01-5AF2-Z pressure transmitter is ideal for applications where precise, reliable pressure measurement is essential. It supports industries that require real-time monitoring of pressure for process optimization and control, ensuring efficient and safe operations.
