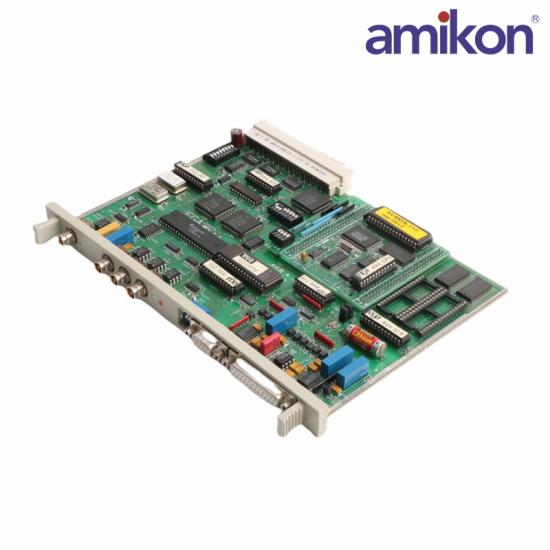

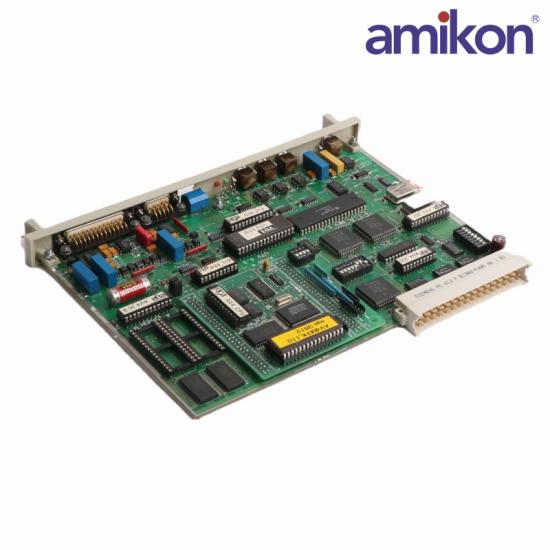

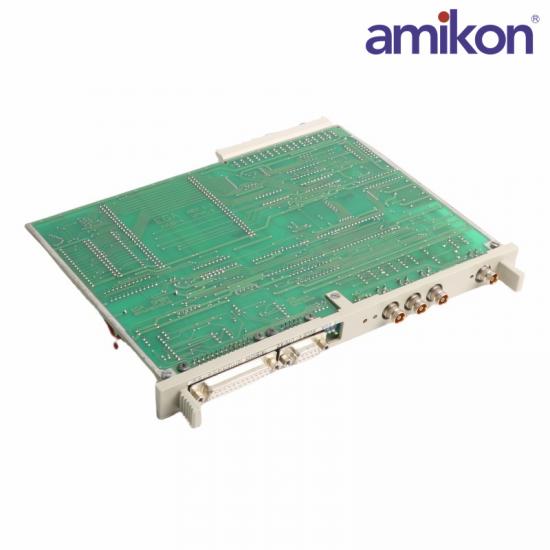

SIEMENS EGA AVUS 4 UTV 4.0 Simatic S5 Video Module

The Siemens EGA AVUS 4 UTV 4.0 Video Module is an advanced video display module designed for use within Siemens' Simatic S5 series of programmable controllers (PLCs). This video module enables real-time graphical display, facilitating visual monitoring and diagnostics of control systems within industrial environments.

EGA AVUS 4 UTV 4.0 video module integrates visual monitoring with Siemens’ Simatic S5 PLCs, allowing operators to display process statuses, system variables, and other critical data on an external screen. It is commonly used in scenarios where operators need a continuous and detailed view of ongoing processes. This module is valuable for quickly identifying operational issues and monitoring system performance without the need for additional devices.

Operating Voltage:DC 24V

Current Rating:Up to 10A

Number of Inputs/Outputs:16/16

Operating Temperature Range:-25°C to +60°C

Communication Interface:RS-485

Dimensions: 0.8" x 9.6" x 7.6"(2.0 cm x 24.4 cm x 19.3 cm)

Weight: 0 lbs 12.8 oz (0.4kg )

Memory Capacity:512 bytes program memory

EGA AVUS 4 UTV 4.0 Designed for Siemens Simatic S5 PLC systems, specifically interfacing with modules that support video monitoring.

EGA AVUS 4 UTV 4.0 Supports EGA (Enhanced Graphics Adapter) resolution, which provides a higher display quality compared to standard video modules.

Displays process graphics, status updates, and error messages on connected monitors, offering a visual overview of system performance in real-time.

Power Supply: Connects to the main power supply of the Simatic S5 system, ensuring stable operation without the need for external power sources.
