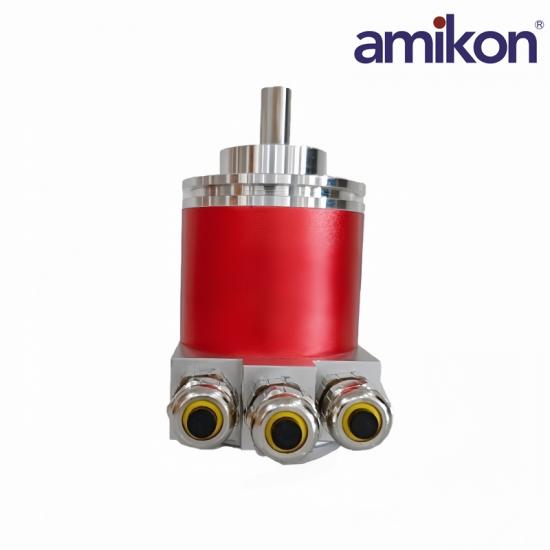

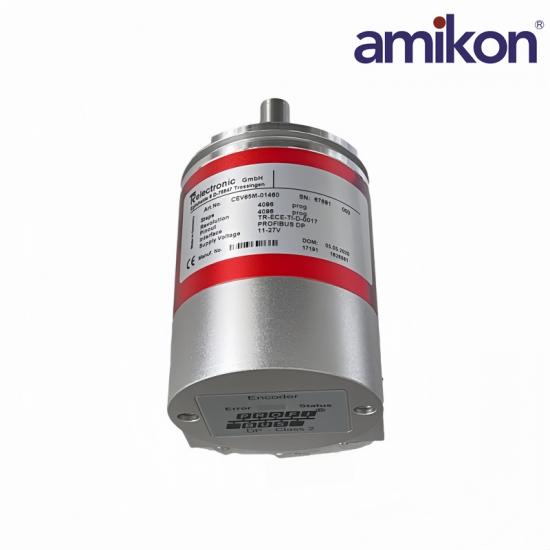

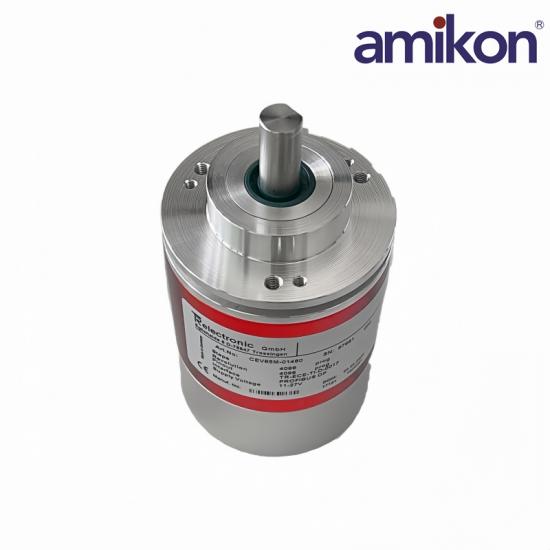

TR-Electronic CEV65M PROFIBUS Encoder

CEV65M-01460

Price and Availability Inquiry

A programmable absolute multi-turn encoder with 4096 steps per revolution, 4096 revolutions and PROFIBUS DP V0 communications for industrial position feedback.

Sales SupportDirect specialist contact

QuotationCurrent commercial details

DeliveryDHL · FedEx · UPS

Fast quotation support Send the model and required quantity directly to Lisa Lin using the contact options on the right.

Your AMIKON Contact

LL Lisa LinSales Specialist

WhatsApp +86 18965423501

Email sales7@amikon.cn

Request a Quote on WhatsApp Send Email Inquiry

For faster service, please include the model CEV65M-01460 and required quantity in your inquiry.

TR-Electronic CEV65M-01460

Technical Specifications

Source-verified identification, configuration, installation and operating data for CEV65M-01460.

01Product IdentityOfficial TR-Electronic configuration

ManufacturerTR-Electronic

Order numberCEV65M-01460

Product codeCEV65M*4096/4096 PB

Encoder typeAbsolute single-turn / multi-turn

02Resolution & BusPosition and communication data

Single-turn resolution12 bit (4096 steps/rev)

Multi-turn capacity12 bit (4096 revolutions)

Fieldbus interfacePROFIBUS DP V0; 9.6 to 12,000 kbit/s

Profile / cycle timePNO Encoder Profile Class 2; 250 µs cycle

03Electrical DataSupply and network ratings

Supply voltage11 to 27 Vdc

Nominal voltage24 Vdc

Current consumptionApprox. 120 mA

Bus rate9.6 to 12000 kbit/s

04Mechanical & EnvironmentMounting and protection data

Flange / shaft executionZB36 clamping flange / Ø10 mm solid shaft with flat, 19.5 mm long

Cable entries3 × PG9 radial

ProtectionIP65

Operating temperature−20 to +70 °C

TR-Electronic CEV65M-01460 Product Support

Frequently Asked Questions

Product-specific compatibility, application, installation, troubleshooting and ordering guidance for CEV65M-01460.

Which PROFIBUS masters can configure CEV65M-01460?

Use a PROFIBUS DP V0 master with the correct encoder GSD and PNO Encoder Profile Class 2 configuration.

Where does the 4096-by-4096 resolution apply?

The encoder reports 4096 positions per revolution across 4096 revolutions, suitable for absolute multi-turn position feedback within the mechanical limit.

How should the ZB36 flange and shaft be installed?

Align the shaft carefully, use a suitable coupling, avoid axial or radial overload, secure the flange and maintain cable-gland sealing.

How can a PROFIBUS communication fault be diagnosed?

Check node address, baud rate, termination, shield continuity, cable polarity, GSD selection and master diagnostics.

Which parameters can be programmed?

The encoder supports programmable PROFIBUS parameters under PNO Encoder Profile Class 2, including project-dependent scaling, direction and preset functions.

How should an older absolute encoder be migrated?

Match flange, shaft, mechanical zero, resolution, counting direction, bus address, GSD profile and cable entries before commissioning the replacement.

Which details should be confirmed when ordering 01460?

Confirm CEV65M-01460, 4096/4096 resolution, PROFIBUS DP V0, ZB36 flange, 10 mm shaft execution, radial PG9 entries and IP65 requirement.
