Description：

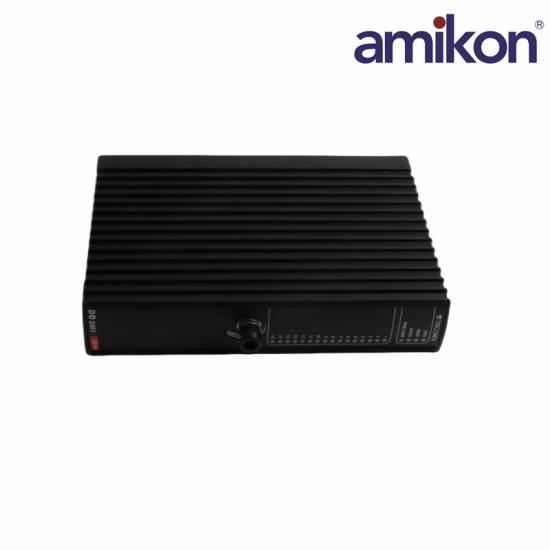

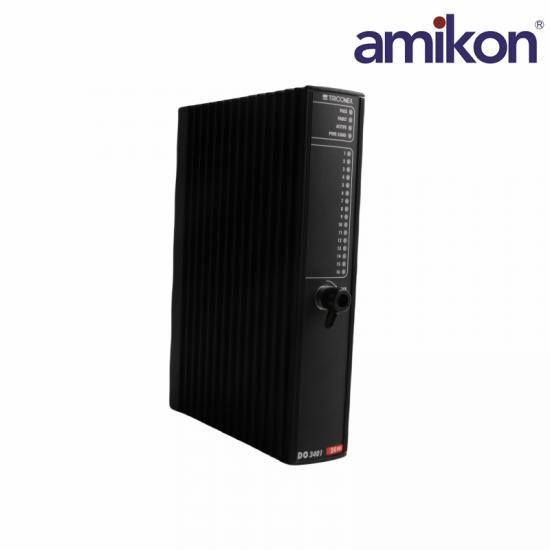

The Triconex D03401 digital output module is a component of the Triconex Trident safety instrumented system (SIS) designed to provide a high-integrity, fault-tolerant inter facebetween a control system and field devices. It is commonly used in safety-criticalapplications such as emergency shutdown systems (ESD), fire and gas systems (F&G), and burner management systems (BMS)

Specification：

Frequently asked questions

Q : Can the DO3401 drive alternating current (AC) loads directly?

No. The DO3401 is strictly specified for 24 VDC operations. Trying to hook up a 120/230 VAC load will cause instantaneous destruction of the module's output transistors.

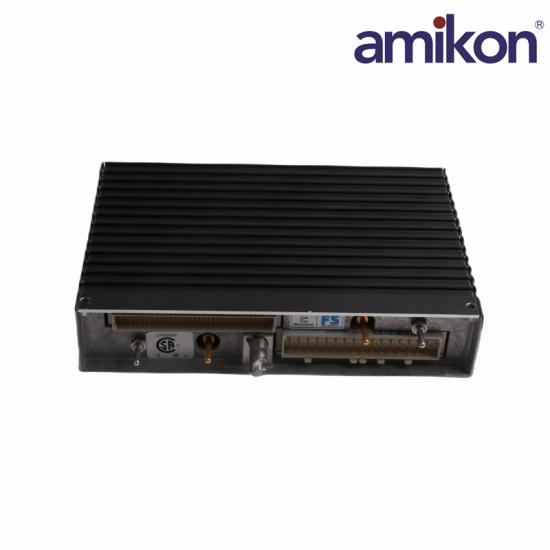

Q : What is the purpose of the mechanical keying slots on the back of the card?

They physically prevent technicians from inserting the DO3401 into slots reserved for high-voltage or analog cards, avoiding cross-voltage damage

Q : How can I check if a running DO3401 module is overheating?

Monitor the module properties via the TriStation Diagnostic Monitor; if internal temperatures consistently exceed 60°C, inspect the cabinet fans.

Q : Can the DO3401 directly switch 110 VAC or 220 VAC solenoid valves?

No. The DO3401 is purely a 24 VDC module. To control AC loads, it must drive a 24 VDC interposing relay, which switches the AC mains.

Product Applications

Oil & Gas: Emergency shut-off (ESD) systems for upstream oil production platforms, long-distance pipelines, and natural gas processing plants instantly shut off pipeline valves in the event of leaks or overpressure.

Petrochemicals: As a core output link for Safety Interlock Systems (SIS) and Fire and Gas Detection Systems (F&G), it triggers sprinkler fire suppression or process venting upon detection of toxic/flammable gas leaks or equipment anomalies.

Power Generation: Used in burner management systems (BMS) and turbine machinery control (TMC) in large power plants for real-time, uninterrupted safety monitoring of boiler ignition, fire suppression interlocks, and turbine overspeed protection.

Metallurgy & Heavy Manufacturing: Used for power linkage and emergency power outage control in blast furnace control in steel plants, highly automotive production lines, and rail transit power systems.
