Description：

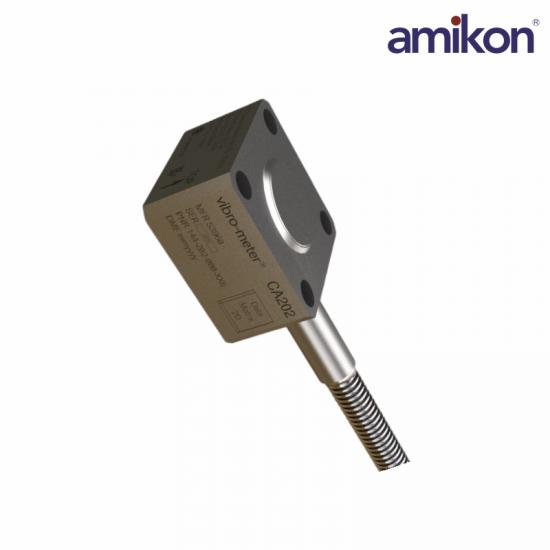

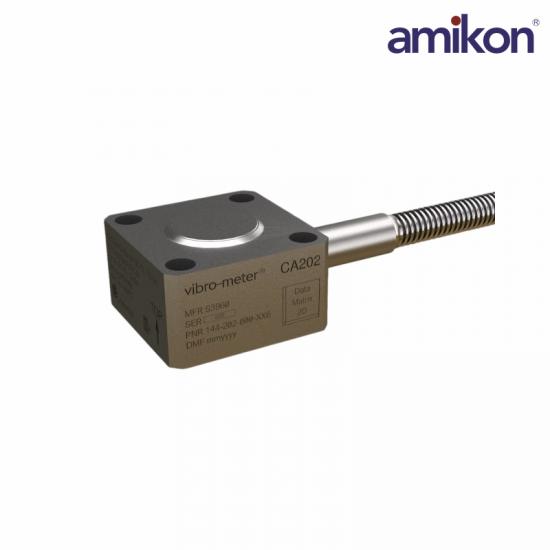

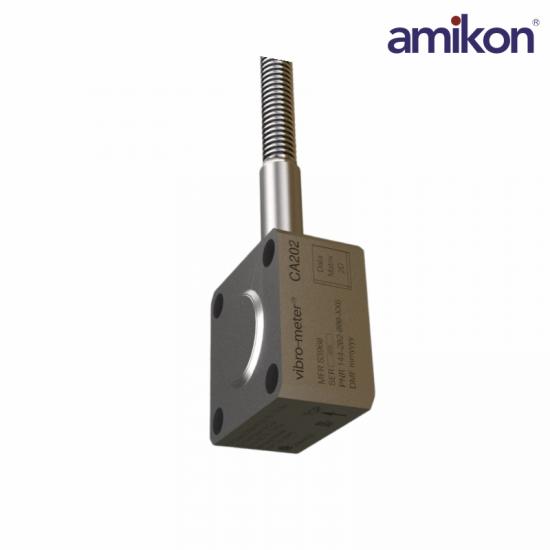

The CA202 is a piezoelectric accelerometer from Meggitt's vibro-meter" product line.

The CA202 sensor features a symmetrical shear-mode polycrystalline measuring element withinternal case insulation in an austenitic stainless-steel case (housing).

The CA202 is fitted with an integral low-noisecable that is protected by a flexible stainless-steelprotection hose (leaktight) which is hermeticallywelded to the sensor to produce a sealedleaktight assembly.

The CA202 piezoelectric accelerometer isavailable in different versions for differentin dustrial environments: Ex versions for installationin potentially explosive atmospheres (hazardousareas) and standard versions for use in non-hazardous areas.

Specification：

Frequently asked questions

Q1: What is the Vibro-Meter CA202 144-202-000-215 Piezoelectric Accelerometer used for?

A1: The Vibro-Meter CA202 144-202-000-215 Piezoelectric Accelerometer is designed to measure machine vibration in industrial applications.

Q2: What is the frequency response of the CA202 144-202-000-215 accelerometer?

A2: The CA202 144-202-000-215 accelerometer has a frequency response of 0.5 Hz to 6000 Hz, enabling accurate detection of both low- and high-frequency vibration signals.

Q3: What is the CA202 144-202-000-215 operating temperature range?

A3: The CA202 operates within a temperature range of −55°C to +260°C (−67°F to +500°F), making it suitable for harsh industrial and high-temperature environments.

Q4: What is the CA202 144-202-000-215 dynamic measurement range?

A4: The CA202 144-202-000-215 accelerometer provides a dynamic measurement range of 0.01 to 400 g peak, allowing it to monitor both very low and high vibration levels with excellent accuracy.

Product Applications

Power and Energy: Vibration monitoring of heavy-duty gas turbines, steam turbines, water turbines, and generator sets.

Petrochemicals: Fault diagnosis and protection of critical rotating machinery such as compressors and pumps in oil refineries and chemical plants.

Heavy Machinery and Manufacturing: Vibration measurement of mining equipment, blast furnace fans in metallurgical and steel industries, and large transmission gearboxes.
