Brand/Manufature:
VIBRO-METERProduct Origin:
SwitzerlandLead Time:
IN STOCKCondition:
Brand New And 100% OriginalCertificate:
CooOperating Temperature: −30 to +85 °C
Storage Temperature: −40 to +85 °C
Humidity: Max. 95 % (non-condensing)
Protection Rating: IP66 (per IEC 60529)
Impact Resistance: > 4 mJ/mm² (DIN 53453)
Supply Voltage: 18 to 30 VDC
Current Consumption: 25 mA (max.)
Standing Current: 12 mA ± 0.5 mA
Without Integrator: 0.1 to 10 mV/pC or 0.1 to 10 µA/pC
With Integrator: 981 to 98,100 mV/(pC·s)
Transfer Range: 0.1 to 50 mV/pC or 0.1 to 50 µA/pC
Linearity Error: ≤ 0.2 %
Temperature Stability: 100 ppm/°C (typical)
Resistance (sensor + cable): ≥ 50 kΩ
Capacitance (sensor + cable): ≤ 10 nF
Dynamic Signal: Max. ± 5 mA peak

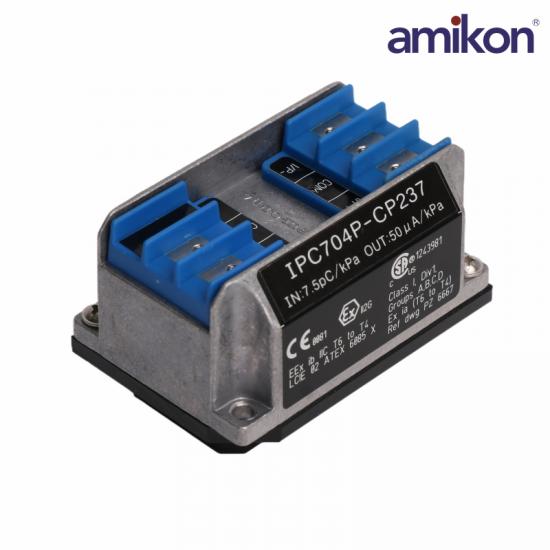

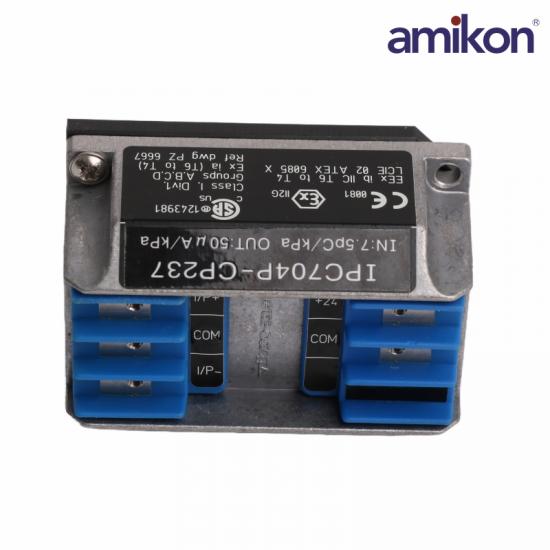

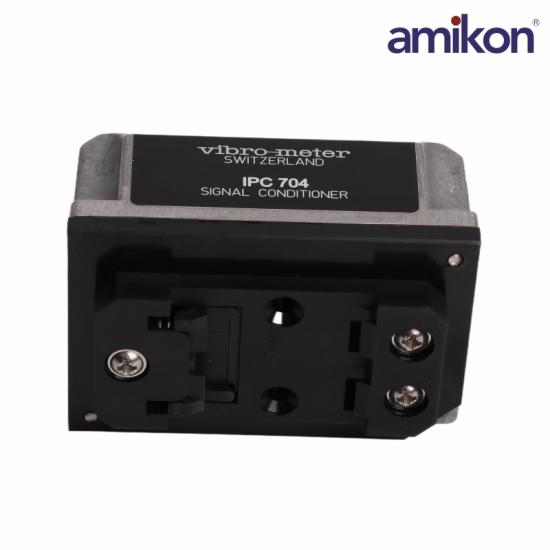

The lPC 704 signal conditioner converts the charge.based signal from a piezoelectric-based transducerinto a current or a voltage signal. This current or volt-age signal is transmitted to the processing electronicsvia a standard 2-wire or 3-wire transmission cable.
The current modulation technique allows transmis-sion over a distance of up to 1 km. A GSl galvanicseparation unit is required for this configuration.
The electronic circuitry of the lPC 704 signal condi-tioner is incorporated into a moulded aluminiumenclosure. The signal conditioner has configurable high-pass and low-pass filters and an optional inte-grator to give a velocity output. Furthermore, RFl fil-ters protect the input and output against radio-frequency interference and other electromagneticinfluences.
