Description：

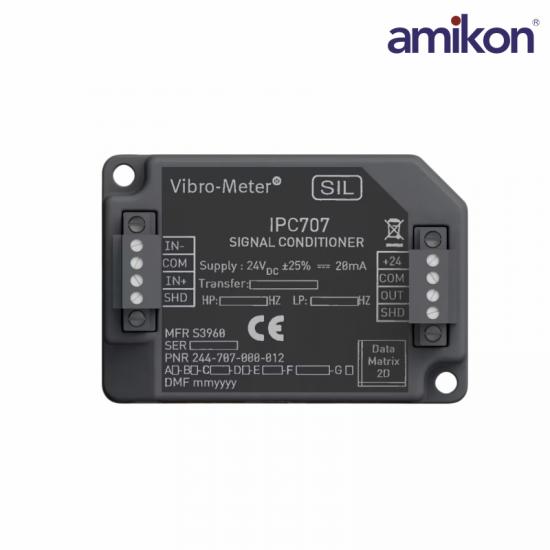

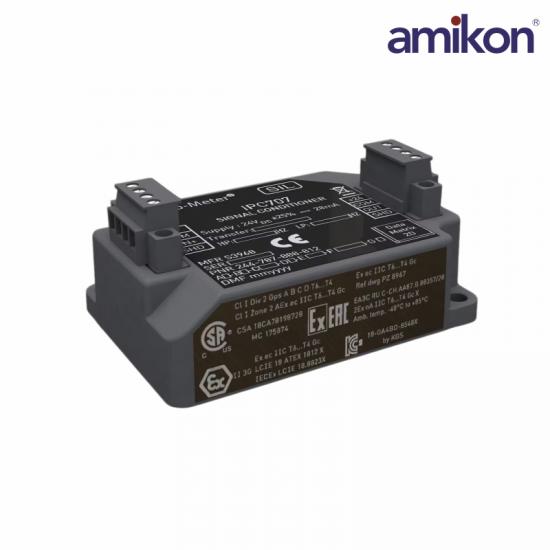

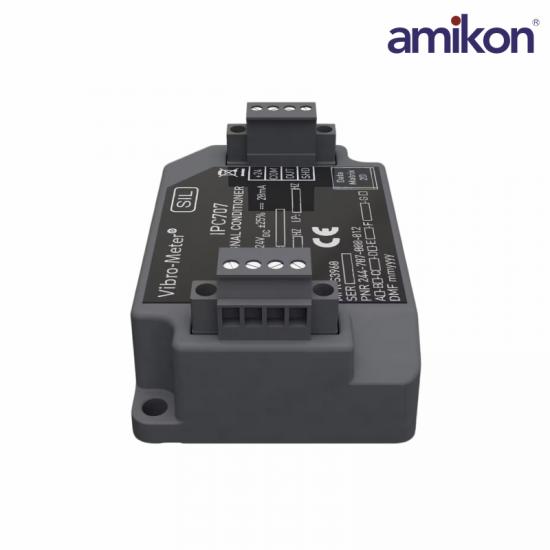

The IPC707 is a signal conditioner fromParker Meggitt's vibro-meter product line. It isdesigned for operation with sensors containing apiezoelectric sensing element that provide a chargeoutput and require an external signal conditioner(charge amplifier).

The IPC707 signal conditioner is a versatile and highlyconfigurable device that converts and processes thecharge-based signal from a piezoelectric-basedsensor into a current output or a voltage outputsignal, suitable for transmission to a monitoringsystem via a standard current (2-wire) or voltage(3-wire) transmission cable.

Configured with a 9810 μA/pC·s transfer sensitivity, 5 Hz high-pass filter, and 2000 Hz low-pass filter, this version is optimized for velocity measurement applications. The integrated DIN-rail mounting adapter allows convenient installation in industrial control cabinets, while the robust aluminum housing ensures reliable operation in demanding environments. The IPC707 is commonly used in power generation, oil & gas, petrochemical, and rotating machinery monitoring applications where accurate vibration signal conditioning is critical.

Specification：

Frequently asked questions

Q1: What is the Vibro-meter IPC707 244-707-000-012 Signal Conditioner used for?

A1: The IPC707 Signal Conditioner is used to process and convert signals from vibration and displacement sensors into stable output signals for machinery protection, condition monitoring, and industrial control systems.

Q2: What is the input capacitance of the IPC707?

A2: The IPC707 signal conditioner has an input capacitance of less than 15 nF, helping maintain accurate signal processing and sensor compatibility.

Q3: What is the insulation resistance of the IPC707 unit?

A3: The IPC707 provides an insulation resistance greater than 20 kΩ, ensuring reliable electrical isolation and stable operation.

Q4: What is the IPC707 maximum current output signal?

A4: The IPC707 maximum current output signal is ±5 mA peak, making it suitable for transmitting conditioned monitoring signals to connected equipment.

Q5: What is the output impedance of the IPC707 signal conditioner?

A5: The IPC707 output impedance is greater than 60 kΩ, supporting reliable signal transmission and interface compatibility.

Product Applications

Energy and Power Plants: Vibration and combustion dynamic pressure monitoring of industrial gas turbines and steam turbines.

Oil and Gas: Explosion-proof monitoring of core power equipment such as compressors, large fans, and pumps.

Heavy industry manufacturing plants (steel mills, cement plants, paper mills): Monitor low-frequency or high-frequency mechanical vibrations in harsh and high-risk environments such as large blowers, crushers, and large transmission gearboxes.
