Description：

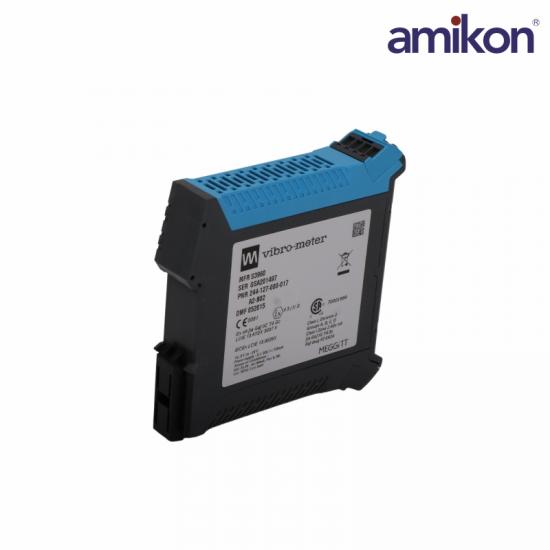

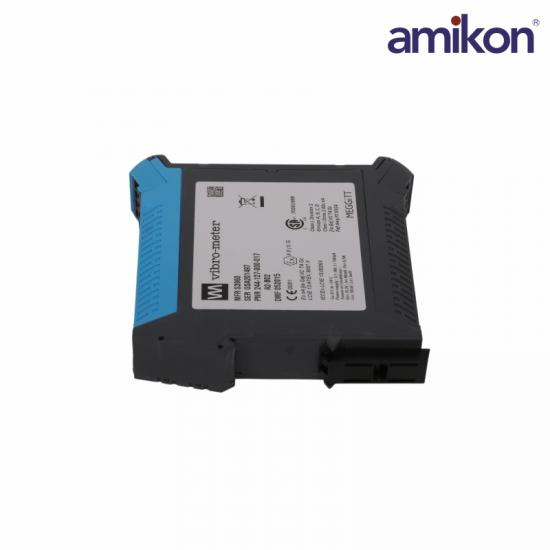

Vibro-Meter GSI127 244-127-000-017 A1-B02 is a galvanic separation unit from the vibro-meter® product line, designed to provide power supply, signal isolation, and signal transmission for vibration monitoring measurement chains. The unit is used with signal conditioners, charge amplifiers, proximity sensor conditioners, velocity sensors, piezoelectric accelerometers, dynamic pressure sensors, and IEPE vibration sensors. It provides 4 kVRMS galvanic isolation between the sensor side and monitor side, ensuring reliable signal transmission while protecting monitoring systems from ground loops, electrical noise, and frame voltage interference.
The GSI127 supports both current-output and voltage-output measurement chains. It can transmit high-frequency AC signals over long distances using current-signal transmission and can also function as a safety barrier in voltage-signal transmission systems. The floating output design eliminates the need for an external power supply barrier, simplifying installation and improving measurement reliability.
Specification：
|
Model |
GSI127 |
|
Part Number |
244-127-000-017 |
|
Ordering Code |
A1-B02 |
|
Product Type |
Galvanic Separation Unit |
|
Manufacturer |
Vibro-Meter |
|
Transfer Sensitivity (Code B02) |
1 V/mA ±1% |
|
Zero Output Voltage |
7 VDC ±200 mV (12 mA input) |
|
Input Supply Voltage |
18 ~ 30 VDC |
|
Sensor Supply Voltage |
20 VDC ±1 VDC |
|
Sensor-Side Dynamic Range |
0 ~ 20 mA |
|
Output Signal Range |
2 ~ 20 VDC |
|
Output Impedance |
20 Ω |
|
Frequency Response (±0.5 dB) |
DC to 20 kHz |
|
Typical -3 dB Cut-off Frequency |
30 kHz |
|
Linearity |
<0.2% |
|
Sensor-to-Monitor Isolation |
4 kVRMS |
|
Power-to-Output Isolation |
50 VRMS |
|
Power Supply Rejection Ratio |
≥60 dB (10 Hz–400 Hz) |
|
Residual Noise |
≤3.5 µVRMS/√Hz |
|
Operating Temperature Range |
0°C to +70°C |
|
Storage Temperature Range |
-40°C to +85°C |
Frequently asked questions
Q1: What is the Vibro-meter S3960 GSI 127 244-127-000-017 A1-B02 Galvanic Separation Unit used for?
A1: The GSI 127 Galvanic Separation Unit is used to provide electrical isolation between sensors, monitoring equipment, and control systems, helping improve signal integrity and protect connected devices from ground loops and electrical interference.
Q2: What is the sensor-side dynamic range of the GSI 127?
A2: The GSI 127 sensor-side dynamic range is 0 to 20 mA, allowing compatibility with a variety of industrial sensor signals.
Q3: What is the output signal range of the GSI 127 unit?
A3: The GSI 127 provides an output signal range of 2 to 20 VDC, suitable for interfacing with monitoring and control systems.
Q4: What is the GSI 127 output impedance of the galvanic separation unit?
A4: The GSI 127 output impedance is 20 Ω, ensuring stable signal transmission and reliable system integration.
Q5: What is the GSI 127 power-to-output isolation rating?
A5: The GSI 127 unit provides 50 VRMS power-to-output isolation, helping protect equipment from unwanted electrical coupling and interference.
Product Applications
Petrochemical and oil refineries: Used to monitor bearing vibration and axial displacement in large fans, compressors, and pump sets, providing early warnings before severe wear occurs.
Thermal and hydroelectric power plants: Monitor turbine blade imbalance or shaft misalignment in steam turbine generator sets and water turbine units.
Metallurgical and steel plants: Online monitoring of continuously operating, high-impact equipment such as large rolling mill gearboxes and blast furnace blowers.
