Description：

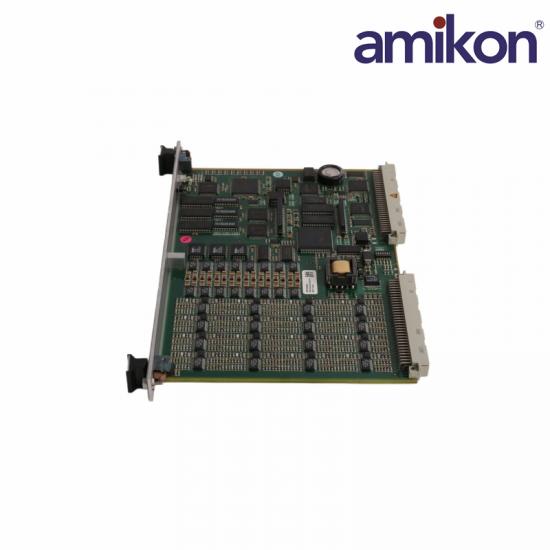

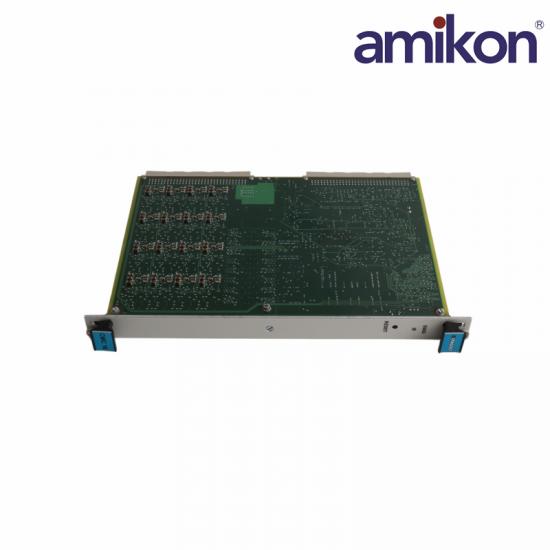

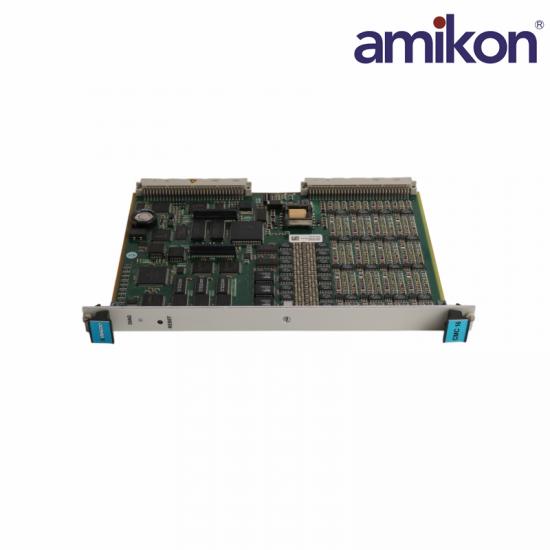

The CMC16 is the intelligent front-end Data Acquisition Unit (DAU) of the VM600 Condition Monitoring System (CMS). It acquires, processes and transmits machinery condition monitoring data to the host computer through the VM600 CPU module.

The CMC16 utilizes 16 parallel 24-bit Analog-to-Digital Converters (ADCs) matched with programmable anti-aliasing filters. This hardware arrangement prevents high-frequency noise distortion and supports a maximum single-channel sampling rate of 100 kHz. For deep frequency-domain analysis, the onboard digital signal processor (DSP) generates high-resolution 3200-line FFT spectra directly on the card. To isolate specific mechanical faults (such as oil whirl, shaft misalignment, or structural resonance), users can isolate up to 10 independent frequency bands per channel. Each band can be monitored using 6 highly customizable software alarms equipped with individual time-delay filters and hysteresis deadbands to minimize false warnings.

Specification：

Frequently asked questions

What is the primary function of the VM600 CMC16 card?

It is a Condition Monitoring Card and Communications Management Controller used for advanced machinery vibration analysis, data acquisition, and diagnostics.

How many channels does the CMC16 card support?

It features 16 independently configurable dynamic input channels.

Can the CMC16 process speed or tachometer signals?

Yes. The first 4 channels can be dual-configured to accept tachometer (Tacho) or phase reference signals.

How many speed pulses per revolution can the card calculate?

It can process up to 128 pulses per revolution for advanced speed and phase tracking.

Product Applications

Thermal Power Plants: Used for continuous vibration analysis, speed and shaft displacement monitoring of large steam turbines and generator sets to prevent severe shaft bending or blade breakage.

Oil & Gas & Petrochemical: Deployed on critical large compressors and centrifugal pumps in refineries and offshore platforms for real-time detection of impeller imbalance and early mechanical failures.

Iron & Steel & Metallurgy: Monitors high-speed, heavy-duty rotating machinery such as blast furnace blowers and large rolling mills, adapting to complex industrial electromagnetic interference and vibration environments.

Hydropower & Nuclear Power: Performs long-term, high-precision condition monitoring and fault diagnosis of hydroelectric turbine units to meet stringent safety requirements.

Key Features

16 independently configurable dynamic channels

Supports vibration and machinery condition monitoring

High-speed parallel data acquisition

Real-time signal processing

Flexible configuration through VM600 CMS software

Reliable long-term industrial operation

Supports predictive maintenance strategies
