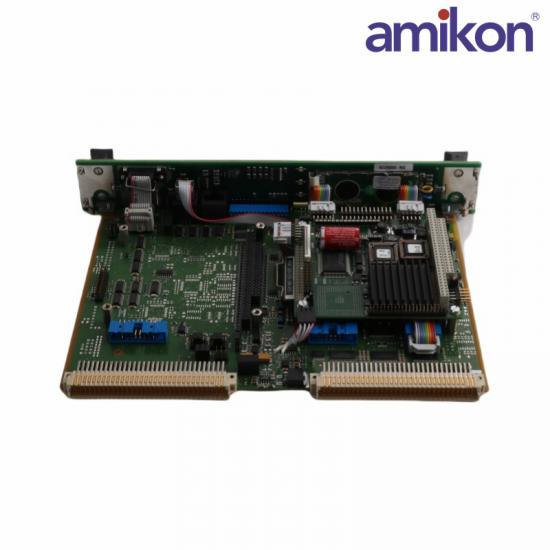

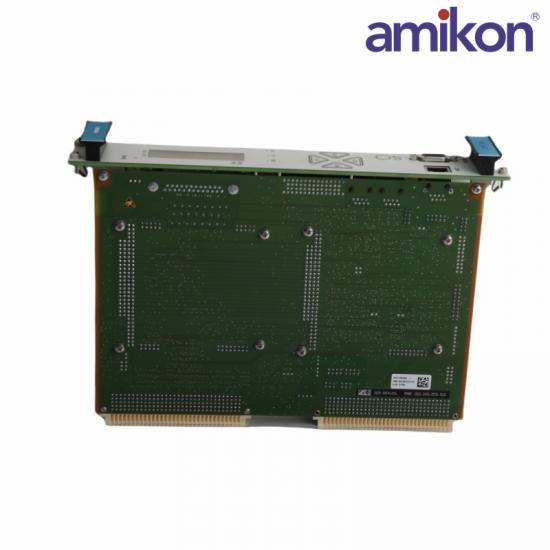

The VIBRO METER VM600 CPU M 200-595-074-122/200-595-100-014 is a Rack Controller designed for use within the VM600 series machinery protection and condition monitoring systems. This unit serves as a central processing and control element within a VM600 rack, managing data from monitoring modules and enabling system diagnostics and configuration.

Brand: Vibro-Meter

Model: VM600 CPU M with part numbers 200-595-074-122 (CPU Module) and 200-595-100-014 (Associated Interface)

Product Type: Rack Controller / Central Processing Unit (CPU)

System Compatibility: Part of the VM600 series, used for machinery protection and condition monitoring applications.

The VM600 CPU M 200-595-074-122/200-595-100-014 rack controller provides data acquisition, control, and communication for the modules installed in the VM600 rack, including data processing and communication to the monitoring system.

200-595-074-122: Main CPU module, which handles processing, data acquisition, and rack management functions.

200-595-100-014: Interface module that provides connectivity and communication options for external systems.

Supports various communication interfaces, typically including Ethernet, Modbus, and proprietary protocols.

Input Voltage: 24V DC nominal (range typically 18–36 V DC)

Power Consumption: Varies by configuration, usually around 20–25 W.

VM600 CPU M 200-595-074-122/200-595-100-014 Operating Temperature: -20°C to +65°C .

Storage Temperature: -40°C to +85°C

Humidity: 5% to 95% relative humidity, non-condensing

Weight: 1.5–2 kg.
