Manufacturer :VIBRO-METER

Product Type:MPC4

Model ID:200-510-041-021

Type:Advanced Machinery Protection Card

Weight:2.5 kg

Channels Supported:8 dynamic channels

Input Voltage:24V DC

Operating Temperature:-40°C to +85°C

Dimensions (WxHxD):178mm x 75mm x 52mm

Filtering Options: High-pass, low-pass, or band-pass

LP/HP Ratio in Pass Band: 500 max

Ripple: ±0.3 dB

Slope: 6 to 60 dB/octave (software configurable)

Attenuation Outside Pass Band: >50 dB

Amplitude Accuracy: ±1% of full-scale

Linearity Error: <±1%

Equivalent Input Noise (without integration): <200 µV RMS

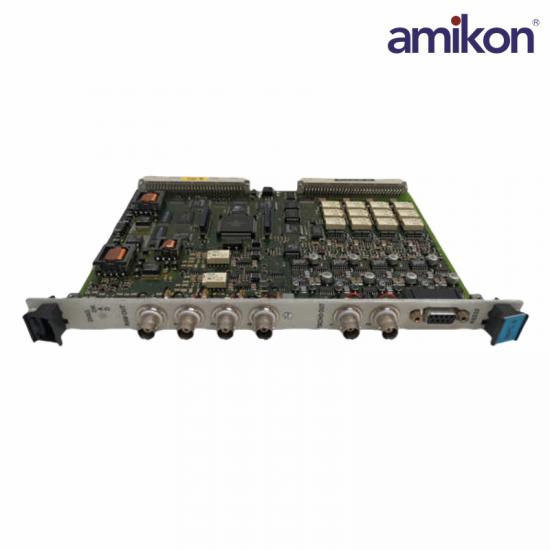

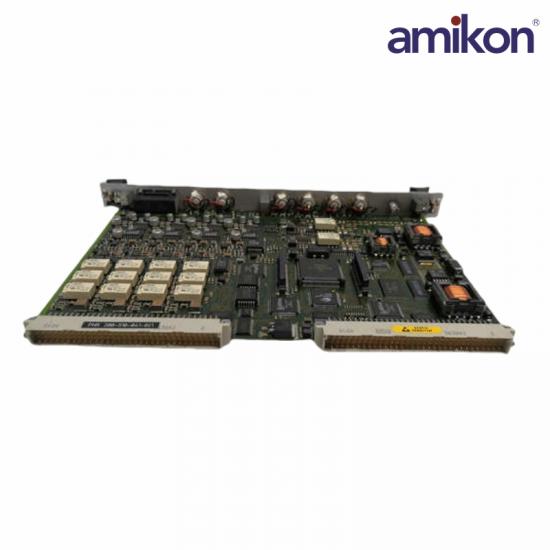

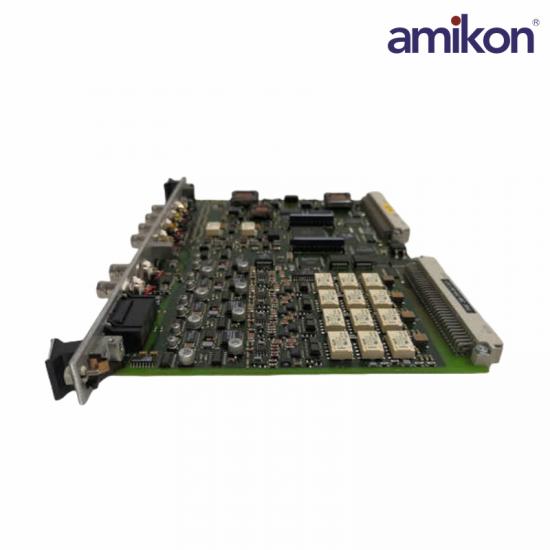

The VIBRO METER VM600 MPC4 200-510-041-021 is an advanced machinery protection card designed to safeguard industrial equipment from unexpected failures, ensuring continuous operation and optimal performance in demanding environments.

The VIBRO Meter VM600 MPC4 200-510-041-021 is engineered to provide real-time monitoring and control for industrial machinery, ensuring optimal performance and preventing costly downtime.  Its robust design allows it to withstand harsh environments typically found in manufacturing facilities.

Featuring advanced signal processing capabilities, this VM600 MPC4 200-510-041-021 machinery protection card accurately detects and alerts on potential issues before they lead to equipment failure.  With support for up to 8 dynamic channels and 2 phase reference, it caters to a wide range of industrial applications.

Utilizing a combination of state-of-the-art electronics and durable materials, the VM600 MPC4 ensures reliable operation over long periods without maintenance.  Its modular design facilitates easy installation and integration into existing systems, minimizing setup time and complexity.

The VM600 MPC4 200-510-041-021 product is equipped with a comprehensive set of communication interfaces, including Modbus RTU, enabling seamless connectivity with various industrial systems.  This compatibility enhances system interoperability and streamlines data exchange between different components.

With its ability to handle a broad spectrum of input/output signals, the VIBRO Meter VM600 MPC4 200-510-041-021 offers unparalleled flexibility for monitoring and controlling various types of machinery.  It supports both current (4-20mA) and voltage (0-10V) signals, ensuring compatibility with a wide range of sensors and actuators.
