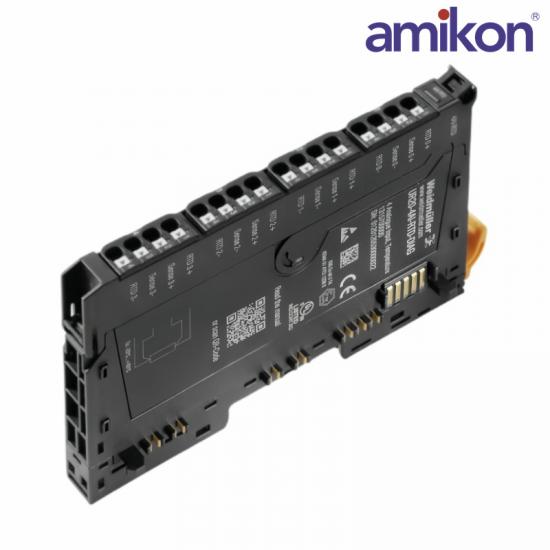

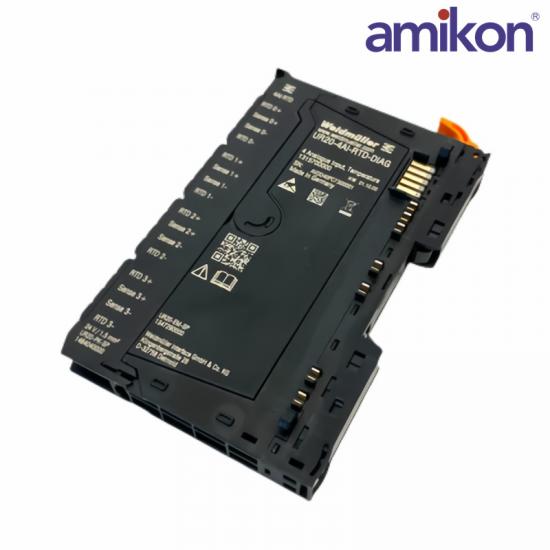

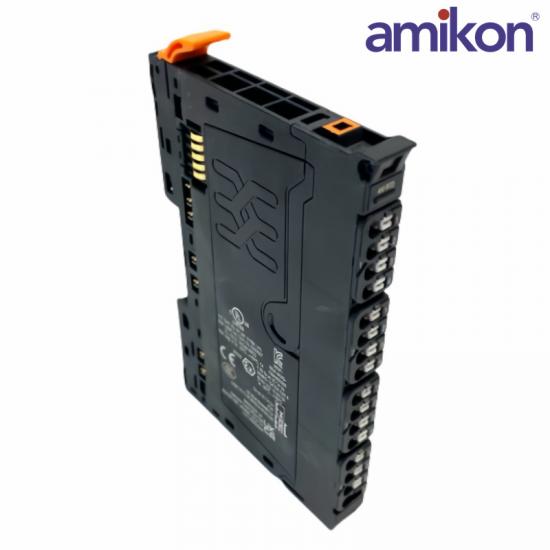

The Weidmüller UR20-4AI-RTD-DIAG Analog Remote Input Module is a part of Weidmüller’s UR20 series, designed for industrial  process control applications.

This  UR20-4AI-RTD-DIAG module provides a remote interface for acquiring analog signals from field sensors, specifically handling RTD (Resistance Temperature Detector) inputs and other standard analog input types. It is part of a distributed I/O system, ideal for systems that require remote monitoring and control of analog signals over long distances or in complex industrial environments.

The Weidmüller UR20-4AI-RTD-DIAG is an analog input module with a diagnostic feature that can interface with RTD sensors (for temperature measurement) and provide high-accuracy analog-to-digital conversion.

Signal Conditioning:

Number of Inputs: 4 channels for analog inputs.

Voltage Input: Accepts 0-10V, 0-5V input signals.

Voltage: Typically 0-10 V or 0-5 V.

Current: Typically 4-20 mA or 0-20 mA.

Resolution: Typically 16-bit or 12-bit ADC (Analog-to-Digital Conversion) resolution for accurate signal conversion.

Accuracy:

RTD accuracy:  ±0.1°C.

Voltage and Current Input accuracy: ±0.05%

Operating Voltage: 24 V DC

Power Consumption: Typically <1.5 W
