wenglor High-Performance Distance Sensors

CP25QXVT80

Price and Availability Inquiry

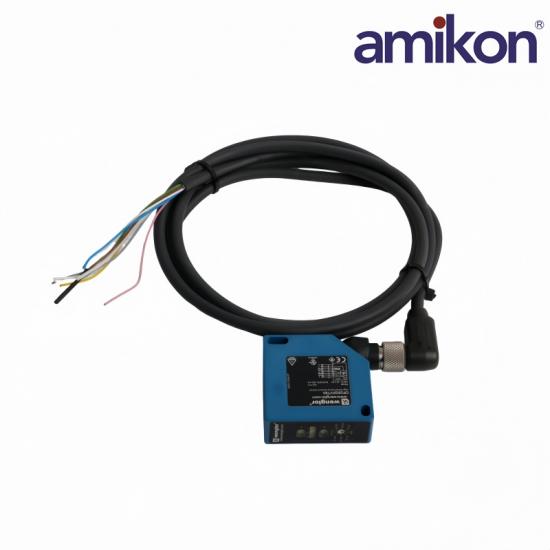

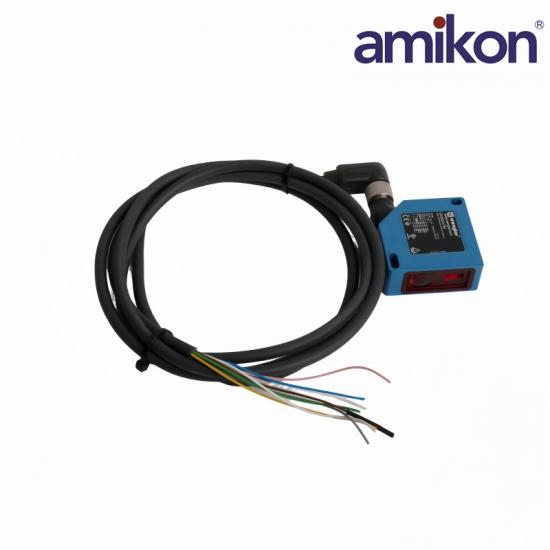

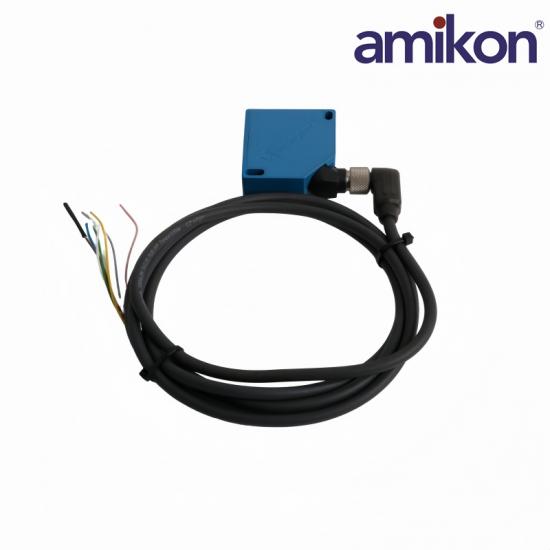

The wenglor CP25QXVT80 is a Laser Distance Sensor for the High-Performance Distance Sensors system.

Sales SupportDirect specialist contact

QuotationCurrent commercial details

DeliveryDHL · FedEx · UPS

Fast quotation support Send the model and required quantity directly to Lisa Lin using the contact options on the right.

Your AMIKON Contact

LL Lisa LinSales Specialist

WhatsApp +86 18965423501

Email sales7@amikon.cn

Request a Quote on WhatsApp Send Email Inquiry

For faster service, please include the model CP25QXVT80 and required quantity in your inquiry.

WENGLOR CP25QXVT80

Technical Specifications

Official technical data for CP25QXVT80.

01Product IdentityOfficial technical data

Manufacturerwenglor

ModelCP25QXVT80

PrincipleLaser triangulation

LifecycleDiscontinued / spare part

02Optical DataOfficial technical data

Setting Range40–240 mm

Switching Hysteresis<0.5%

Wavelength655 nm

Laser ClassClass 2

03Electrical DataOfficial technical data

Supply Voltage10–30 V DC

Current Consumption<50 mA at 24 V

Switching Frequency500 Hz

Response Time1 ms

04Interface & EnvironmentOfficial technical data

InterfaceRS-232, 38,400 Bd

ConnectionM12 × 1, 8-pin

Temperature Range−25 to +60 °C

Protection RatingIP67

WENGLOR CP25QXVT80 PRODUCT SUPPORT

Frequently Asked Questions

Optical performance, RS-232 configuration, installation, commissioning and replacement guidance for CP25QXVT80.

Which measurement principle is used by CP25QXVT80?

CP25QXVT80 uses laser triangulation with a high-resolution CMOS line and DSP distance calculation.

What setting range and switching hysteresis are specified?

The setting range is 40 to 240 mm and the specified switching hysteresis is less than 0.5%.

Which laser and environmental limits apply during installation?

It uses a 655 nm red Class 2 laser, operates from −25 to +60 °C and is rated IP67; observe laser-safety and mounting instructions.

How are switching thresholds and delays configured?

Two independent switching outputs support separate thresholds and on-delay or off-delay settings in 10 ms increments.

What communication interface is available for setup and values?

An RS-232 interface is provided for activating sensor functions and outputting values, with a documented transmission rate of 38,400 Bd.

What should be checked when the sensor does not switch at the expected distance?

Verify supply voltage, alignment, target position, teach-in settings, switching status, contamination and error indication before adjusting the threshold.

What lifecycle and ordering point applies to CP25QXVT80?

The manufacturer lists the product as discontinued but available as a spare part; order the exact model CP25QXVT80 and confirm the M12 × 1 eight-pin connection.
