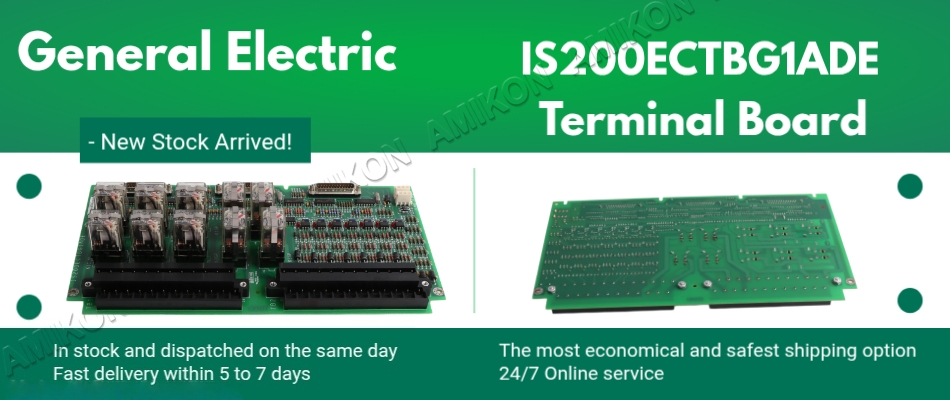

What Is the GE IS200ECTBG1ADE Terminal Board?

IS200ECTBG1ADE is an Exciter Contact Terminal Board developed by GE. It is a part of EX2100 excitation system. The teminal board faclitates excitation contactoutputs and inputs wihin the EX210 Excitation Conto system There are two distinct versions of thisterminal board the ECTBG1 oard utlized excusively in redundantcontro scenarios and the ECTBG2 board employed solely in simplex control configurations Each board is equiped with specific functionalities talored to its respectivecontrol setup.

Technical Specifications

Model Number: IS200ECTBG1ADE

Type:Terminal Board

Primary Function: Termination of discrete I/O signals

I/O Channels Supported: 48 channels (inputs and/or relay outputs)

Input Type: Dry contacts or opto-isolated signals

Output Type: Form-C relay or TTL compatible (via controller)

Wiring Method: Captive screw terminals

Supported Wire Gauge: 14–22 AWG

Voltage Rating: 24–125 VDC typical for signal applications

Insulation Resistance: >100 MΩ at 500 VDC

Temperature Range: -40°C to +70°C

Mounting Style: Panel / DIN-rail mounting (horizontal preferred)

Compatibility: GE Mark VI / Mark VIe Excitation Systems

Why Is the IS200ECTBG1ADE Important in Industrial Automation?

The IS200ECTBG1ADE terminal board plays a critical role in maintaining reliable turbine and process control operations. In large industrial systems, hundreds of signals must be accurately transmitted between the control system and field equipment.

This module improves system reliability by:

Providing secure wiring terminals for field signal connections

Simplifying installation and maintenance processes

Reducing wiring complexity inside control cabinets

Ensuring consistent signal transmission in high-demand environments

Where Is the IS200ECTBG1ADE Terminal Board Typically Used?

The GE IS200ECTBG1ADE is widely used in heavy industrial sectors that rely on advanced turbine control systems. Typical applications include:

Gas and steam turbine control systems

Power generation plants

Oil and gas processing facilities

Large industrial manufacturing plants

Energy infrastructure requiring high-reliability automation

Within these systems, the terminal board is usually installed inside the control cabinet and connected to other Mark VI I/O modules.

When Should the IS200ECTBG1ADE Be Replaced or Upgraded?

Like many electronic control components, terminal boards can experience wear or damage over time due to environmental conditions such as heat, vibration, and electrical stress.

Replacement or maintenance may be required when:

Signal transmission becomes unstable

Physical connectors show signs of corrosion or damage

System diagnostics indicate wiring or interface faults

A turbine control system upgrade is being implemented

Routine inspection of terminal boards helps prevent unexpected downtime and ensures the entire automation system continues operating efficiently.

How Does the IS200ECTBG1ADE Improve System Integration?

One of the major advantages of the IS200ECTBG1ADE terminal board is its ability to simplify system integration in complex industrial control environments. By providing organized connection points and clear signal routing, the board helps engineers integrate sensors, transmitters, and control modules more efficiently.

Its structured design supports:

Faster wiring installation

Improved troubleshooting capabilities

Reduced wiring errors during system setup

Better long-term maintenance and component replacement

As industrial automation systems become increasingly complex, components like the IS200ECTBG1ADE play a key role in ensuring reliable communication between control hardware and field devices.

In modern turbine control environments, reliable signal management is essential for maintaining stable and efficient operations. The GE IS200ECTBG1ADE Terminal Board provides a structured and dependable interface between field equipment and the central control system, helping ensure accurate signal transmission and simplified wiring architecture.

With its integration into GE’s advanced Mark VI control platform, the IS200ECTBG1ADE supports critical industrial applications across power generation, energy production, and large-scale manufacturing. By improving wiring organization, system integration, and maintenance efficiency, this terminal board contributes to the overall reliability and performance of turbine automation systems.
