Part Number：5136-CN-PCI

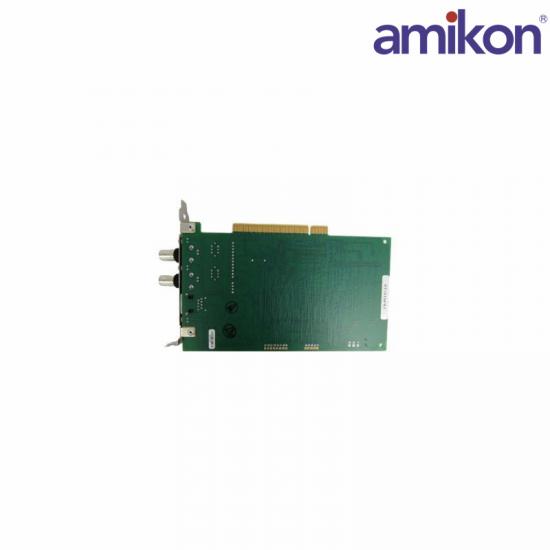

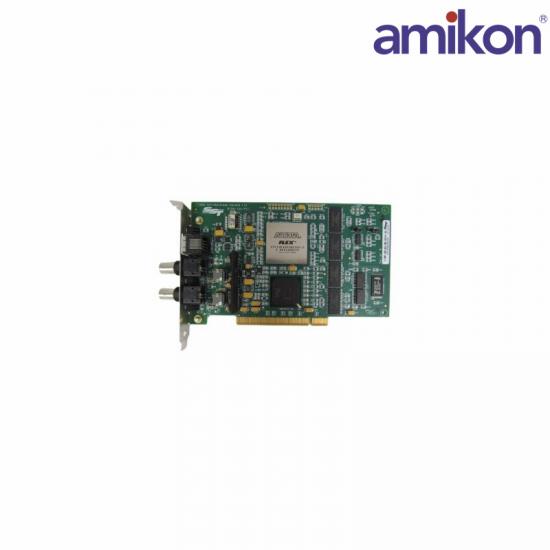

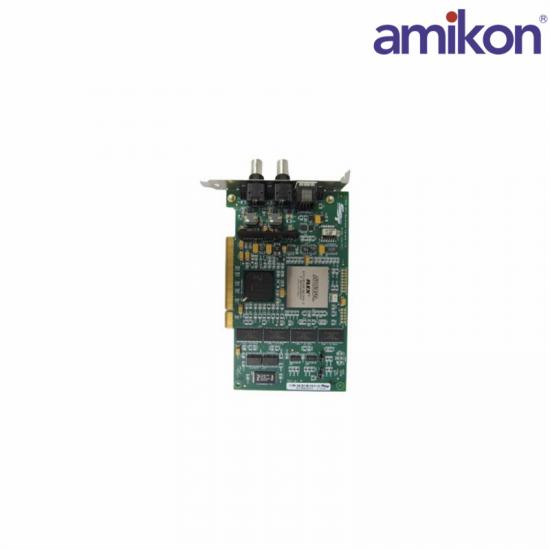

The WOODHEAD 5136-CN-PCI is a ControlNet communication card designed for use in industrial systems. It provides connectivity between a computer or control system and a ControlNet network, enabling the exchange of data between various networked devices and controllers.

Here are the key parameters and features of the WOODHEAD 5136-CN-PCI ControlNet Card:

WOODHEAD 5136-CN-PCI ControlNet Card

Model Number:

Model: 5136-CN-PCI

Function:

Purpose: Provides a communication interface between a computer and a ControlNet network, allowing the computer to interact with ControlNet devices such as PLCs, I/O modules, and other networked components.

Application: Used in industrial systems for integrating ControlNet networks with computer-based control and monitoring systems.

PCI Slot:

Type: PCI (Peripheral Component Interconnect) slot for installation in a standard PCI slot on a computer or industrial controller.

Bus Type: 32-bit PCI for high-speed data transfer.

ControlNet Ports:

Number of Ports: Typically includes one ControlNet port for connecting to the ControlNet network.

Port Type: Coaxial or fiber-optic, depending on the specific card configuration.

Protocols Supported:

ControlNet: Supports the ControlNet protocol, a high-speed network protocol used for real-time control and data acquisition in industrial automation systems.

Software and Configuration:

Drivers: Includes drivers for operating systems to enable communication between the card and the computer.

Configuration Software: Provides tools for configuring the ControlNet network settings, managing connections, and performing diagnostics.

LED Indicators: May include LEDs for power status, network activity, and connection status.

Diagnostic Tools: Includes diagnostic tools or software for monitoring network performance and troubleshooting communication issues.

Operating Temperature: Typically operates within a temperature range of 0°C to 55°C (32°F to 131°F). Verify specific limits in the datasheet.

Humidity: Designed for operation in environments with relative humidity from 5% to 95% (non-condensing).

Product type：CONTROLNET CARD

Condition：100% Original
