Part Number：XVME-113

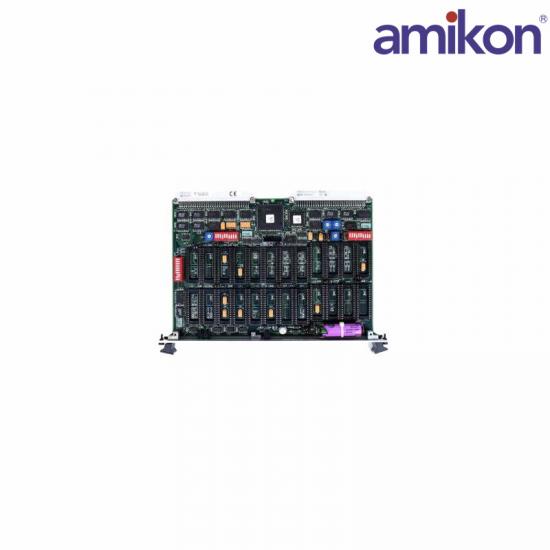

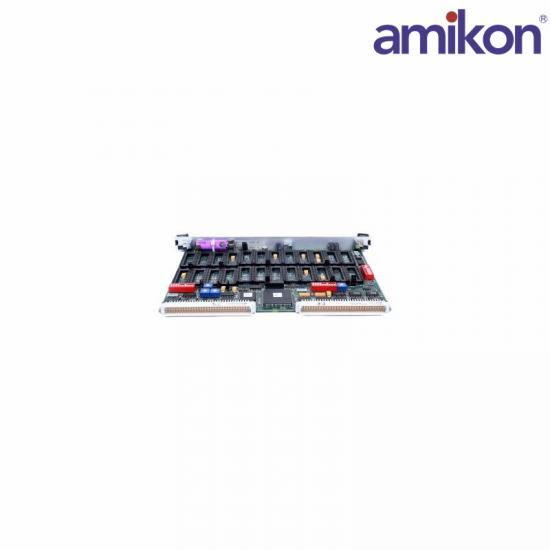

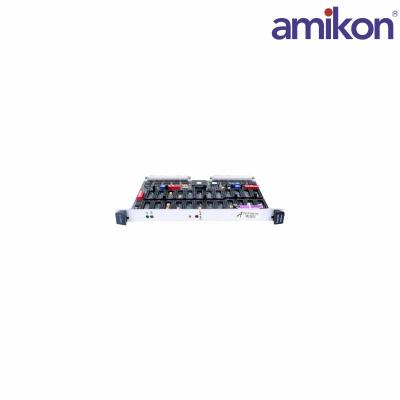

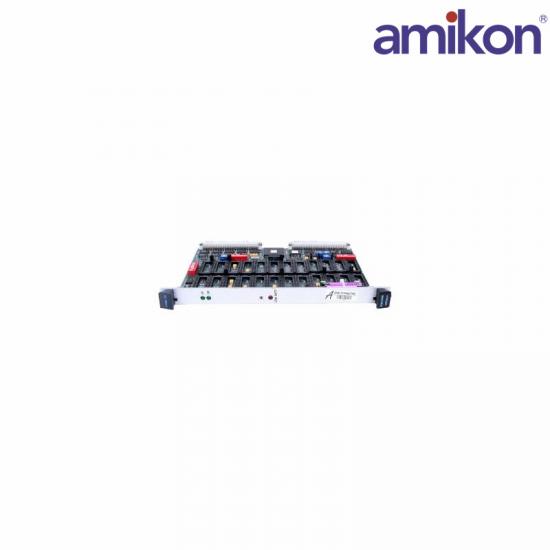

The XVME-113 RAM/ROM Memory Module is a

double-high, VMEbus compatible board. It can accommodate up to 12 MB of RAM, 24 MB of EPROM, 12

MB of EEPROM or 12 MB of FLASH.

The XVME-113 has twenty-four 32-pin JEDEC sockets that are  arranged as two banks. Bank one

contains 16 memory sites, and bank two contains 8

memory sites. Each bank is designed to employ memory

devices of the same type and speed. Each bank can also

be independently configured (via jumpers and switches)

in terms of:

• VMEbus address (within Standard or

Extended address space)

• Address modifiers

• Memory device speed, and type

The XVME-113 is designed with an on-board battery

backup circuit to provide power to CMOS RAM devices in the event of a power failure. The module also

provides power-down memory protection circuitry that

prevents data from being written to memory when the

voltage falls below 4.65 Volts. The XVME-113 also

contains a battery-backed real-time clock and configuration register to enable reading of memory type and

size.

Product type：RAM/ROM Memory Module

Condition：100% Original
