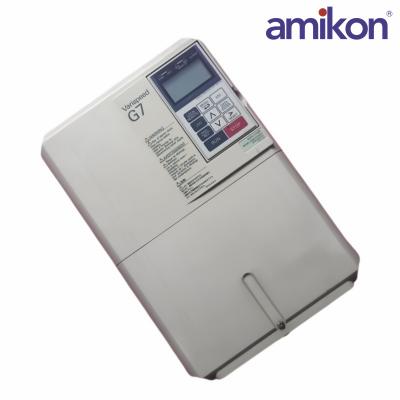

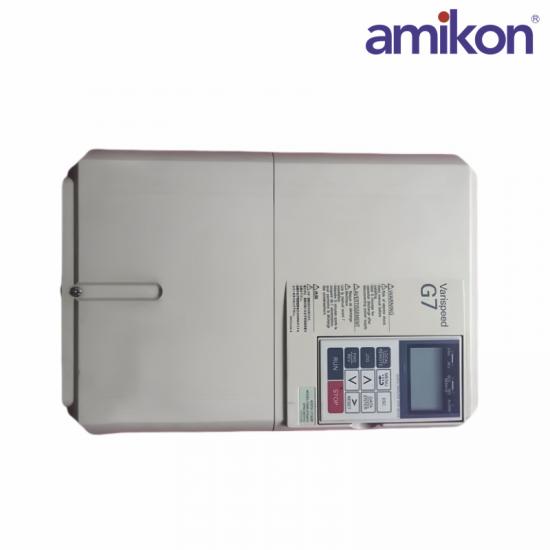

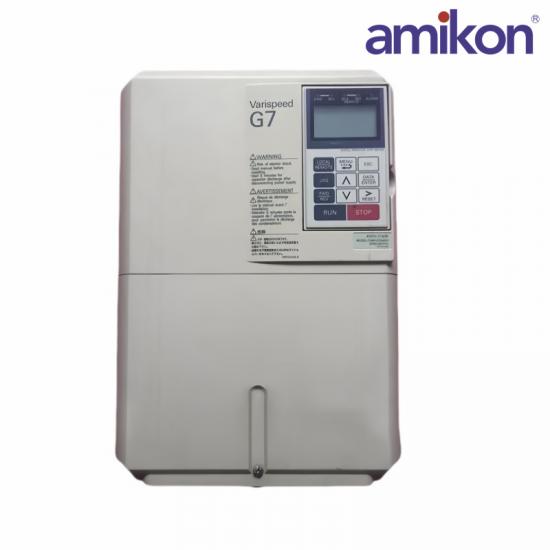

The Yaskawa CIMR-G7A4011 is a high-performance inverter from the G7 series, designed for industrial applications requiring precise control of AC motors. The G7 series inverters are known for their reliability, advanced features, and compatibility with various types of motors, making them suitable for use in industries like manufacturing, material handling, and process.

The CIMR-G7A4011 inverter uses advanced vector control technology to provide accurate speed and torque control, allowing for better performance in demanding industrial applications.

CIMR-G7A4011  Comes equipped with an electromagnetic compatibility (EMC) filter, ensuring the inverter meets international standards for minimizing electrical interference.

Low Harmonics: The inverter features a 12-pulse rectifier, which helps reduce the harmonics generated during operation, leading to improved power quality.

CIMR-G7A4011  Designed to optimize energy consumption, the G7 series offers high efficiency, reducing operational costs.

CIMR-G7A4011 The inverter can control both standard induction motors and permanent magnet motors, making it versatile for various applications.

Model: CIMR-G7A4011

Series: G7

Type: AC Inverter

Power Rating: 11 kW (15 HP)

Input Voltage: 380 - 480 V AC (3-phase)

Output Voltage: 380 - 480 V AC (3-phase)

Input Frequency: 50/60 Hz

Output Frequency Range: 0.01 - 400 Hz

Rated Current: 24 A

Control Method: Vector control, V/f control (Volts per Hertz control)

Protection: Overcurrent, Overvoltage, Undervoltage, and Thermal protection

Operating Temperature: -10°C to +40°C (14°F to 104°F) without derating

Cooling: Forced air cooling with built-in fan

Dimensions: 300 x 200 x 150 mm (approximately)

Weight: Around 10 kg

Display: Built-in LCD display for monitoring and parameter adjustment

Communication: RS-485 (Modbus), optional communication modules available for different protocols
