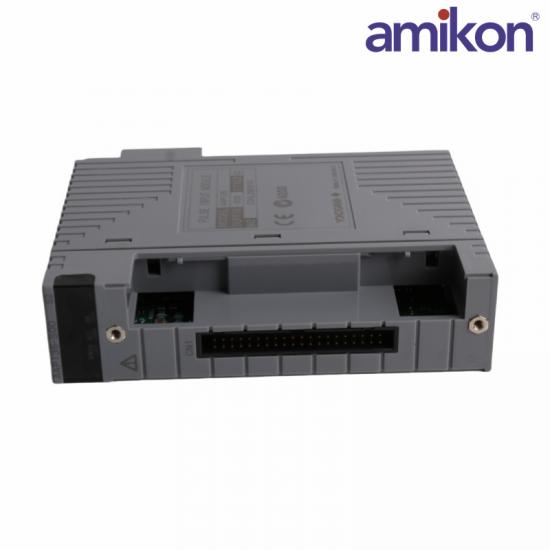

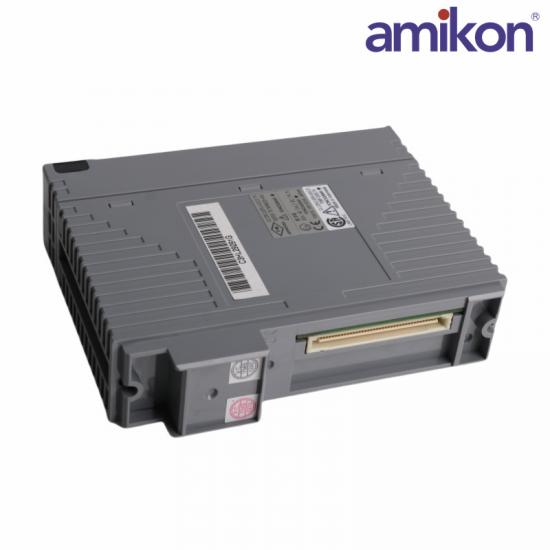

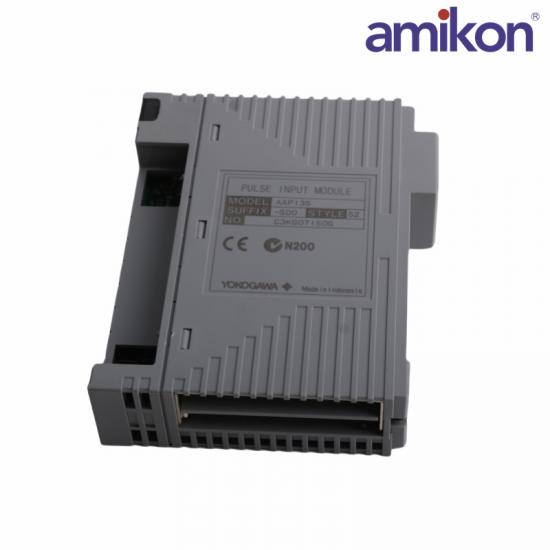

The Yokogawa AAP135-S03 Pulse Input Module is a specialized input module designed for use in Yokogawa’s control systems, including distributed control systems (DCS) and programmable controllers (PAC). It is engineered to accurately receive and process pulse signals from field devices such as flow meters, speed sensors, and similar equipment. This AAP135-S03 module is ideal for applications requiring precise pulse counting, frequency measurement, or event detection.

The AAP135-S03 Pulse Input Module offers high-speed and reliable pulse signal acquisition for industrial control systems. It supports multiple channels for simultaneous data collection and is built for seamless integration into Yokogawa’s control platforms.

AAP135-S03 Supports multiple pulse input channels for simultaneous data acquisition.

AAP135-S03 Accepts pulse signals from a variety of field devices, including TTL, contact closures, and other standard signal types.

AAP135-S03 Capable of handling high-frequency pulse signals, ensuring accurate and real-time data capture.

AAP135-S03 Pulse input from field devices (e.g., flow meters, counters, speed sensors).

AAP135-S03 Typically 4 to 8 channels.

AAP135-S03 Pulse width: ≥10 µs

Frequency range: Up to 10 kHz (varies by configuration).

Compatible with 5V TTL signals, contact closure signals, and standard industrial voltage levels.

AAP135-S03 High precision with an error margin of ±0.1%.

AAP135-S03 Operating Temperature:0°C to +55°C.

Dimensions: 1.5" x 4.5" x 5.5"(3.8 cm x 11.4 cm x 14.0 cm)

Weight: 0 lbs 10.5 oz (0.3kg )
