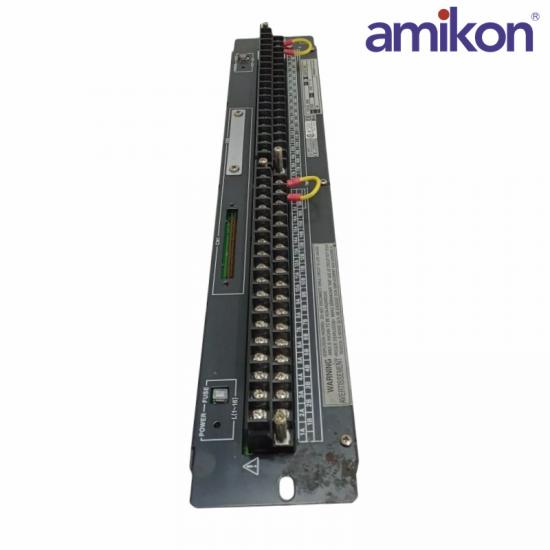

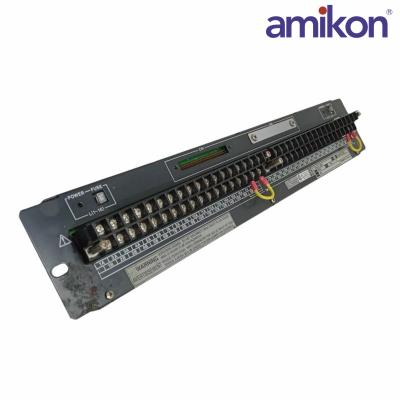

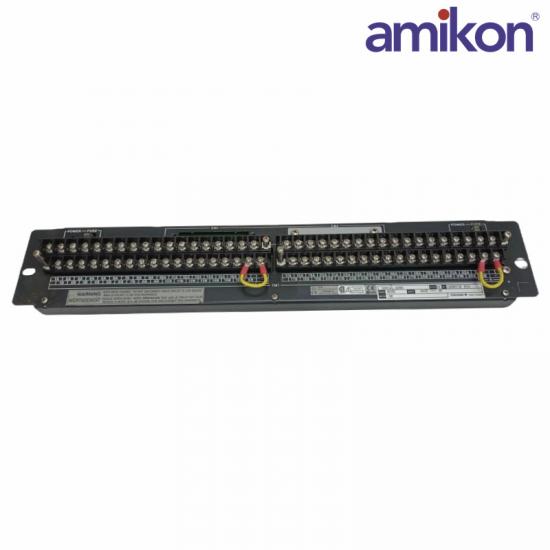

The YOKOGAWA AER4D Terminal Board is designed for use in industrial control and systems, primarily serving as an interface for connecting resistance temperature detectors (RTDs) or other resistive sensors. It is a critical component for ensuring accurate temperature measurement and signal transmission in various process control applications.

The AER4D Terminal Board provides a secure and reliable connection between RTD sensors and the monitoring or control system, such as a Distributed Control System (DCS) or Programmable Controller (PLC). It ensures the integrity of the signal from the RTD, delivering precise temperature data for process control or monitoring. This AER4D  terminal board is engineered to handle demanding industrial environments, offering durability and high performance.

AER4D  Designed to support a wide range of RTDs, including Pt100, Pt1000, and other standard resistance sensors.

AER4D  Facilitates accurate temperature measurements by minimizing signal degradation and interference.

Cold Junction Compensation:

Built-in compensation to maintain measurement precision across varying ambient conditions.

Model: AER4D

Function: Terminal board for RTD/resistive sensor connections

Supported Sensors: RTDs (Pt100, Pt1000) or other resistance-based sensors

Number of Channels: Typically 4 channels (supports multiple sensors)

Input Signal: Resistance signal from RTDs or resistive sensors

Output Signal: Forwarded to DCS, PLC, or monitoring equipment

Cold Junction Compensation: Included for precise measurements

Operating Temperature : -20°C to +60°C
