Temperature (working)：-20 to +70 °C

Temperature (storage)：-25 to +85 °C

Relative Humidity：Max. 95%, non-condensing

EMC：EN50081-2 Emission, EN50082-2 Immunity

DIN VDE 0839/10-S2

Shock：10 g ; 16 ms

Vibration：10–55 Hz ; ±0.35 mm

Current Input：0–20 mA, 55 Ω ±10% (60 mA max., fuse protected)

Voltage Input：0–10 V, 1 MΩ (max. 30 V)

Voltage Output：0–10 V ±0.5%, max. 5 mA

Open Line Level：2.8 mA ±0.4 mA; below open line level: red LED

Reference Output：11.25 V ±1%, 5 mA max.

Set Point Input：10 kΩ (30 V max.), adjustable by potentiometer

Set Point Limiter：Optional

Trip Indication：Above set point: red LED

Hysteresis：1% (full scale, trip & open line)

Stability Error：<0.2% (full temp. range)

Clock Input：Clock pulses from MC-573, level 0/11 V

Field Supply：24 V DC ±10%

Current Consumption：35–50 mA (passive) / 40–100 mA (active)

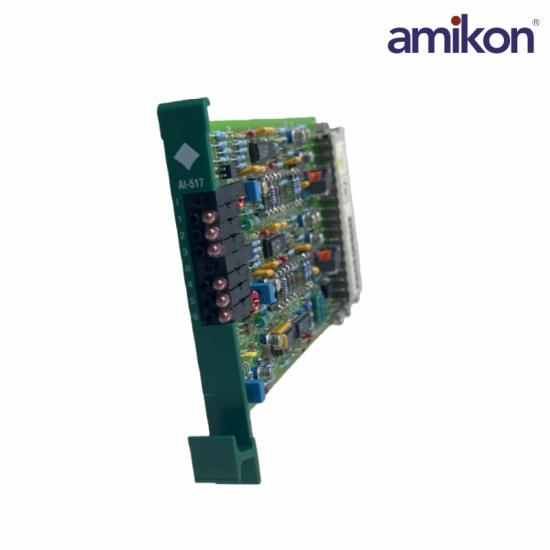

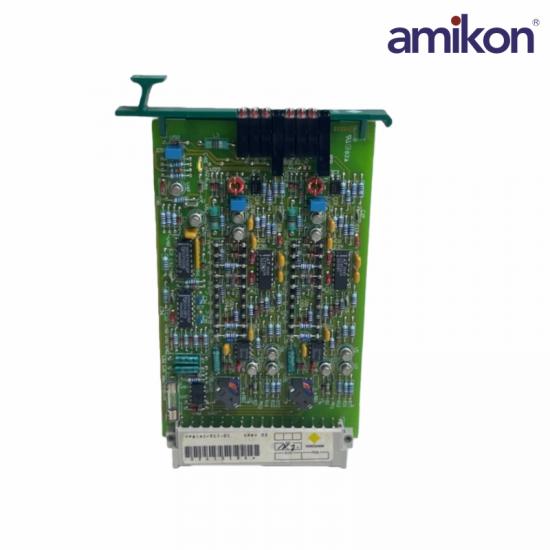

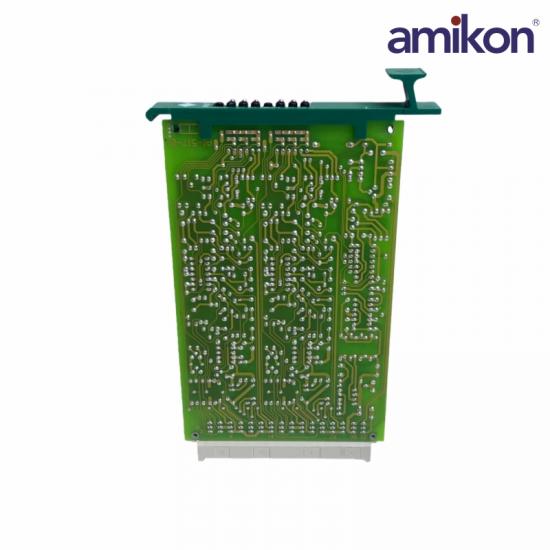

The YOKOGAWA AI‑517‑01 Analog Input Module is a dual‑channel analog input and trip amplifier module designed for use in industrial distributed control systems (DCS) and platforms. It accepts both current and voltage signals from field transmitters and sensors, converting them into internal logic signals for monitoring, control, and trip decision operations. The AI-517-01 module includes open line detection, set point comparison, transmitter supply, and status indication, allowing it to reliably interface with process instrumentation and protect system integrity.
