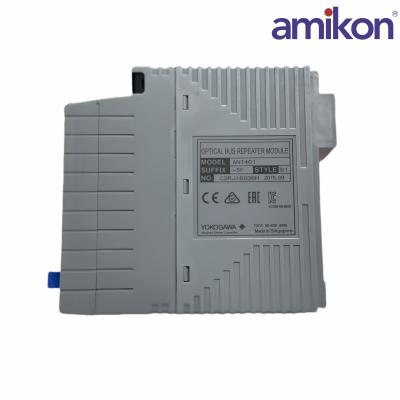

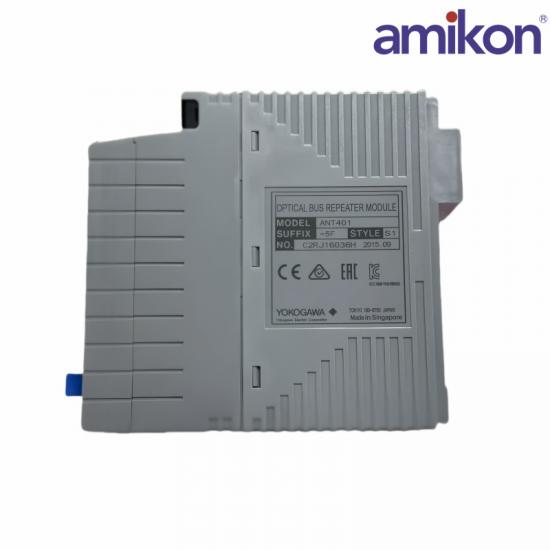

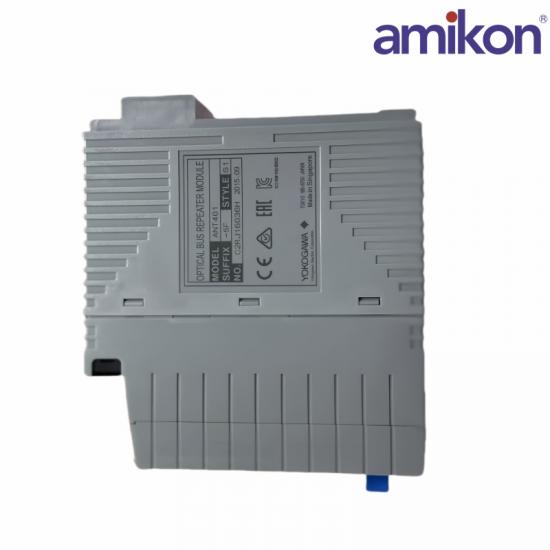

The Yokogawa ANT411-5F S1 is an Optical Bus Repeater Module designed for use in the CENTUM VP process system. This module is crucial for enhancing the communication reliability and extending the range of optical networks within industrial settings.

Model: Yokogawa ANT411-5F S1

Type: Optical Bus Repeater Module

Series: CENTUM VP

ANT411-5F S1 Function: Amplifies optical signals to enable long-distance communication between devices in the network, ensuring effective data transmission and system reliability.

Optical Signal Amplification: Increases the strength of optical signals, allowing for extended communication distances beyond typical limits.

Multiple Optical Connections: Supports connections to various devices on the optical bus, enhancing system flexibility.

Maximum Transmission Distance: Can facilitate communication over significant distances, with specifics dependent on the configuration and fiber type.

ANT411-5F S1 Operating Temperature Range:0°C - 60°C.

ANT411-5F S1 Suitable for environments with up to 95% relative humidity (non-condensing).

ANT411-5F S1 Typically requires a 24 V DC power supply.

Q&A：

Q1: What is the primary function of the Yokogawa ANT411-5F S1 Optical Bus Repeater Module?

A1: The primary function of the ANT411-5F S1 is to amplify optical signals, enabling long-distance communication between devices within the CENTUM VP process system. This ensures reliable data transmission and extends the communication range of the optical network.

Q2: What are the typical operating conditions for the ANT411-5F S1 module?

A2: The ANT411-5F S1 operates within a temperature range of 0°C to 60°C and can tolerate humidity levels of up to 95% (non-condensing). This makes it suitable for various industrial environments.

Q3: How does the ANT411-5F S1 connect to other devices in the optical network?

A3: The module connects to other devices via optical fiber cables. It supports multiple connections on the optical bus, allowing for flexible system designs and integration with various devices in the network.

Q4: What diagnostic features does the ANT411-5F S1 offer?

A4: The ANT411-5F S1 includes LED status indicators for monitoring power and communication status. It also features self-diagnostic capabilities to detect operational issues within the optical communication network in real-time.
