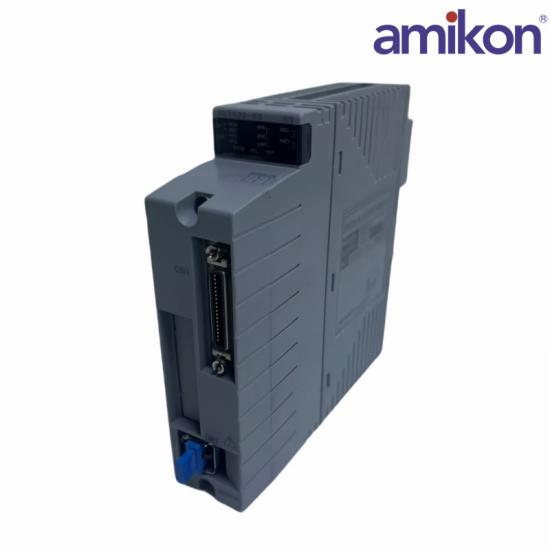

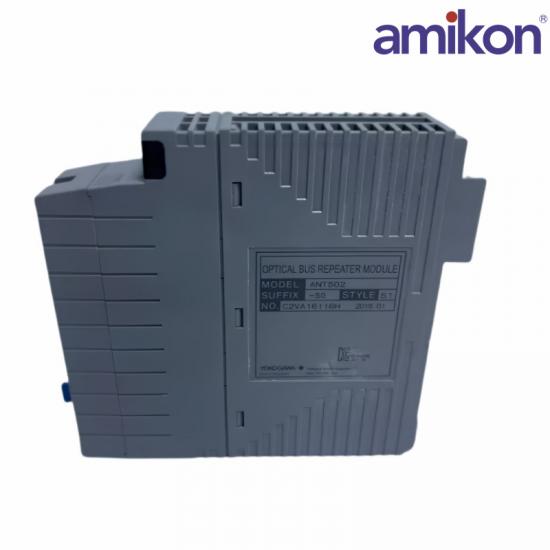

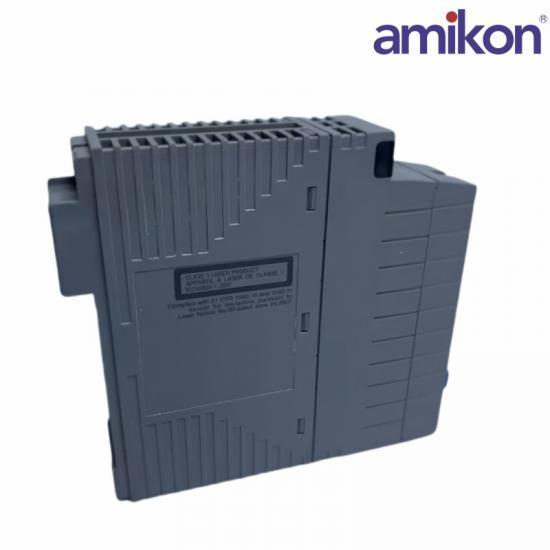

The Optical ESB Bus Repeater Module converts the ESB bus to an optical signal and transmits it. The ESB bus transmission distance can be extended within the range of up to 5 km by connecting the  ANT502-10 Optical ESB Bus Repeater Slave Module with an optical fiber cable.

ANT502-10 is installed as standard in the Optical ESB Bus Node Unit  as a slave module of the optical ESB bus. It can also be installed in the Unit for Optical ESB Bus Repeater Module.

To connect the ANT502-10 to the ESB bus, specify “Connector unit with ESB Bus connector” (option code “/BU1A” or “HU1A”). To not connect the ANT502 to the ESB bus, specify “Connector unit” (option code “/BU1B” or “/HU1B”).

To monitor the temperatures and fans in the cabinet, specify “With HKU interface” (option code “/HU1A” or “/HU1B”).

The Yokogawa ANT502-10 is an Optical Bus Repeater Module designed to improve communication across industrial networks, particularly in distributed control systems (DCS). It extends the range and reliability of communication by utilizing optical signal transmission, which is less prone to electrical interference and signal degradation over long distances. This makes the ANT502-10 suitable for environments with high electrical noise or those requiring long-distance communication.

Model: ANT502-10

Manufacturer: Yokogawa

Type: Optical Bus Repeater Module

The ANT502-10 amplifies and regenerates optical signals, ensuring effective communication over extended distances without signal degradation.

ANT502-10  Capable of supporting high data transmission rates, allowing for real-time communication between distributed devices in control systems.

The ANT502-10 allows optical signals to be transmitted over long distances, typically several kilometers, depending on the type of optical fiber and system configuration.

Optical Signal Strength: Maintains the strength of the signal across long distances, ensuring communication remains reliable and accurate between network nodes.

The ANT502-10 module operates on a 24 V DC power supply, which is standard for many industrial applications.

The ANT502-10 operates within a temperature range of -10°C to +60°C (14°F to 140°F), making it suitable for various industrial environments, including harsh or challenging conditions.
