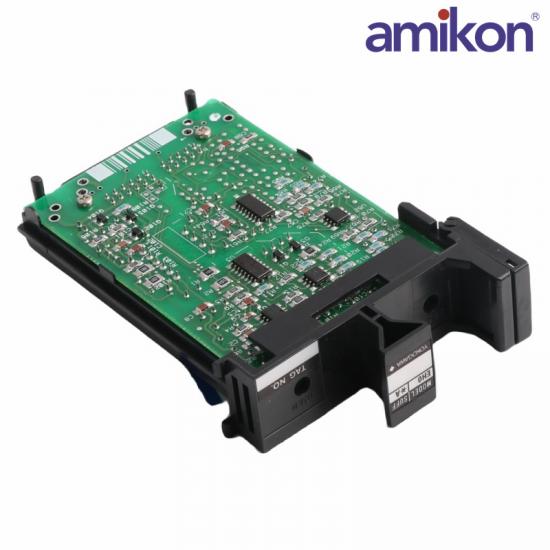

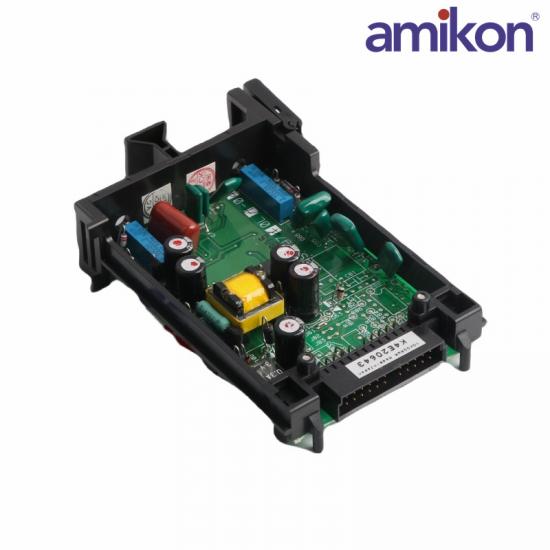

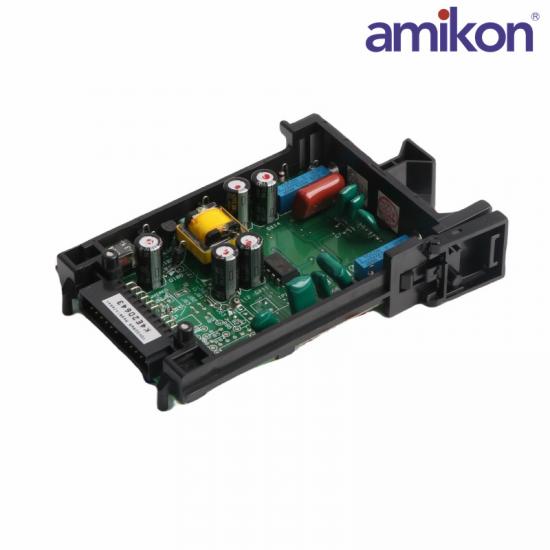

The Yokogawa EH0*A Output Isolator Card ensures safety and precision in control systems by isolating and conditioning output signals, reducing electrical noise and protecting sensitive equipment.

Operating Voltage:8…36 VDC

Current Consumption:≤ 12 mA

Signal Type:TTL/CMOS compatible

Isolation Rating:≥ 1000 Vrms

Temperature Range:-20°C to +70°C

Input Impedance:≥ 100 kΩ

Output Impedance:≤ 50 Ω

Number of Input Channels:Up to 8 channels

Input Range:10 mV to 500 VAC/DC

Signal Conditioning:Optional isolation and amplification

Power Supply:DC 24V

Storage Temperature:-40°C to +85°C

Dimensions:100mmx 100mm x 220mm

Weight:0.5 kg

The YOKOGAWA EH0*AH Output Isolator Card is engineered with robust construction, featuring an aluminum extrusion housing that not only provides durability but also efficient heat dissipation. Its compact design allows for easy integration into various control systems without compromising on functionality.

Equipped with advanced circuitry, this EH0*A  isolator card ensures precise signal transmission with minimal distortion, maintaining high accuracy in industrial applications. It supports bidirectional communication, facilitating seamless data exchange between different control devices.

Safety is paramount with the YOKOGAWA EH0*AH. The card incorporates overvoltage protection mechanisms to safeguard against electrical surges and lightning strikes, ensuring continuous operation and preventing damage to connected devices. It meets international safety standards, providing peace of mind for users across diverse industries.

For enhanced system reliability, the EH0*A  isolator card includes a diagnostic feature that monitors its operational status in real-time. This enables quick detection of potential issues, allowing for timely maintenance and minimizing downtime.
