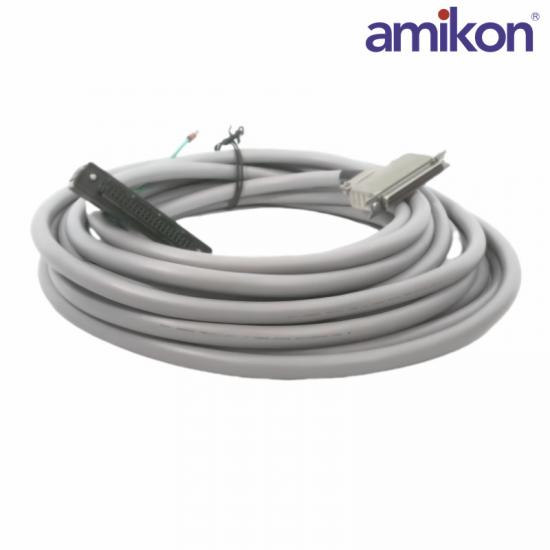

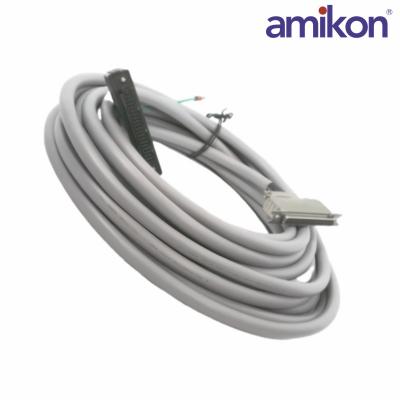

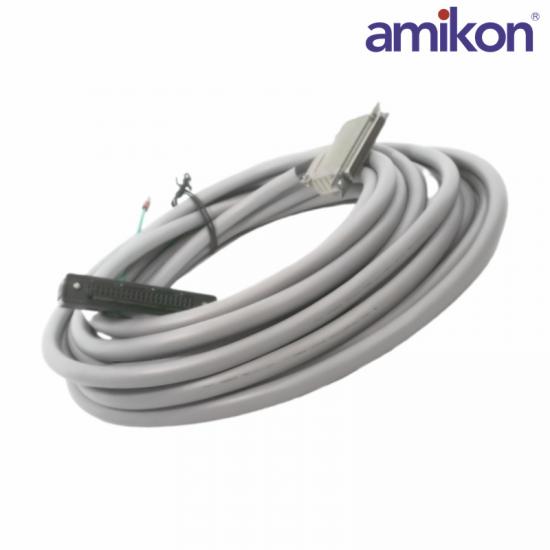

The YOKOGAWA KS8-10*B Signal Cable is a high-quality industrial-grade cable designed for reliable signal transmission in control systems.

This KS8-10*B cable is engineered to provide consistent performance, durability, and efficient data transfer in demanding environments.

It is commonly used in YOKOGAWA systems to connect instruments, controllers, and other components, ensuring seamless communication and signal integrity.

KS8-10*B Rated for signal transmission up to 300V.

Current Rating: 0.5A to 1A.

Impedance:50-100 ohms.

Number of Conductors:10 conductors

Cable Diameter:6-10 mm

Voltage Rating: Up to 300V, suitable for low-voltage signal transmission.

Current Rating: Supports up to 1A per conductor for signal-level currents.

Insulation Resistance: Greater than 100 MΩ/km at 20°C, ensuring minimal leakage.

Capacitance: Approximately 50-100 pF/m, depending on the configuration, to ensure minimal signal distortion.

Impedance: Balanced impedance between 50 and 100 ohms, suitable for industrial signal transmission.

Physical and Structural Details

Typically 24 AWG to 22 AWG (0.2–0.34 mm²) per core.

Number of Cores:

10 cores, each insulated with color-coded or numbered sleeves for easy identification.

Cable Diameter:

Outer diameter ranges from 8 mm to 10 mm

PVC or thermoplastic elastomer for mechanical and chemical resistance.

KS8-10*B Braided or foil shielding to protect against electromagnetic interference (EMI) and radio frequency interference (RFI).

Storage Temperature:-40°C to +85°C.

KS8-10*B 5x the cable diameter, allowing for sharp bends without damage.
