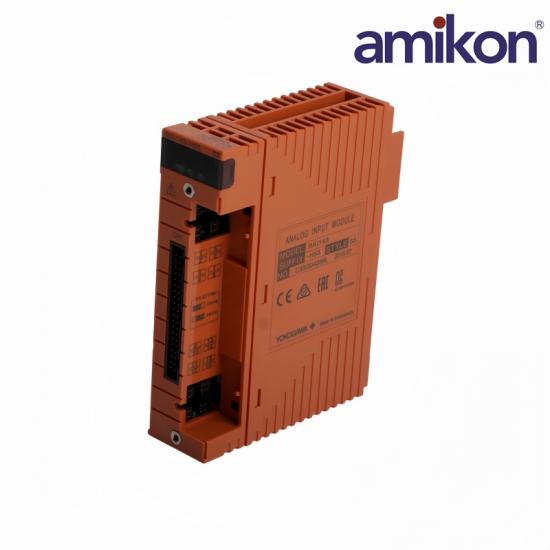

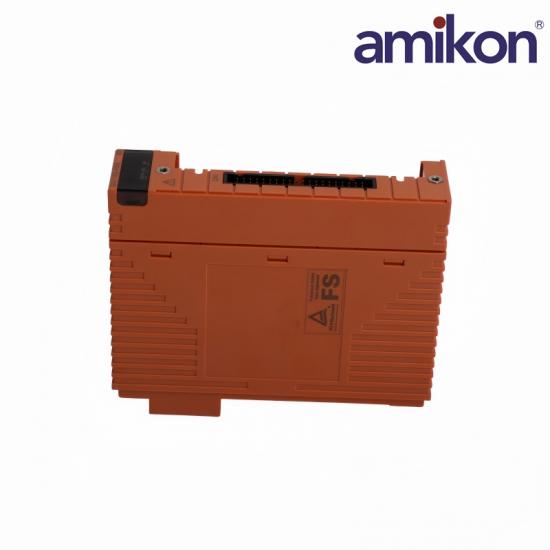

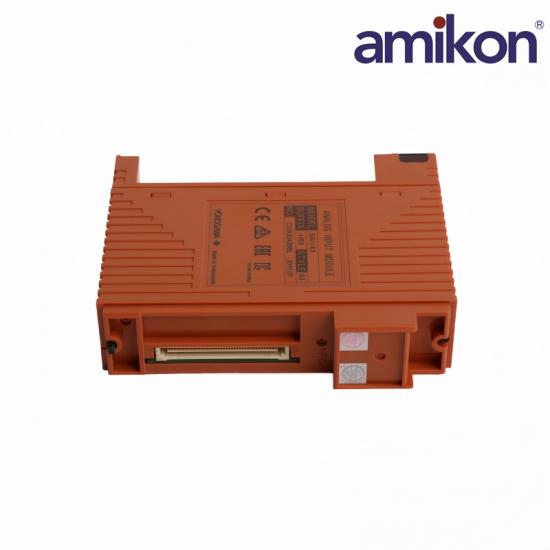

Yokogawa SAI143-H53 16-Channel HART Analog Input Module

SAI143-H53
SAI143-H53
SAI143-H53

Yokogawa SAI143-H53 16-Channel HART Analog Input Module

✉  INQUIRE NOW

YOKOGAWA · PROSAFE-RS FIO

SAI143-H53

16-Channel HART Analog Input Module

MANUFACTURERYokogawa
MODELSAI143-H53
PART NUMBERSAI143-H53
PRODUCT TYPE16-Channel HART Analog Input Module
SYSTEM FAMILYProSafe-RS FIO
ORDER SUPPORTModel Verification

INDUSTRIAL AUTOMATION SPARE PARTS PARTNER

20 Years of Experience in Industrial Automation Supply

AMIKON supplies industrial automation spare parts to maintenance, engineering and procurement teams worldwide. Our focus includes discontinued and hard-to-find DCS, PLC and TSI components, helping customers identify the correct model, source replacement parts and support urgent maintenance requirements.

Discontinued Parts SourcingModel Identification SupportGlobal Customer SupportIn-Stock Supply Support

  • Item NO.:

    SAI143-H53

  • Order(MOQ):

    1

  • Product Origin:

    JAPAN

  • Lead Time:

    IN STOCK

  • Brand/Manufature:

    Yokogawa

  • Product Origin:

    JAPAN

  • Lead Time:

    IN STOCK

  • Condition:

    Brand New And 100% Original

  • Certificate:

    COO
Inquire Now

Yokogawa · ProSafe-RS FIO

SAI143-H53

Price and Availability Inquiry

Yokogawa SAI143-H53 is a ProSafe-RS FIO analog input module for sixteen 4 to 20 mA channels with module isolation and HART communication. The H53 order code selects HART, pressure-clamp or MIL-cable connection without explosion protection, and the ISA G3 temperature option.

Sales SupportDirect specialist contact
QuotationCurrent commercial details
DeliveryDHL · FedEx · UPS
Fast quotation support Send the model and required quantity directly to Lisa Lin using the contact options on the right.

Your AMIKON Contact

LL Lisa LinSales Specialist
WhatsApp +86 18965423501
Request a Quote on WhatsApp Send Email Inquiry
For faster service, please include the model SAI143-H53 and required quantity in your inquiry.

Yokogawa SAI143-H53

Technical Specifications

Official SAI143-H53 channel, current, HART and suffix data; style-dependent features must be matched to the actual label.

01Product IdentityOfficial ProSafe-RS FIO data
ManufacturerYokogawa
Part NumberSAI143-H53
Product TypeHART analog input module
System FamilyProSafe-RS FIO
02Input DataGS 32Q06K30-31E
Input Channels16; module isolation
Rated Input Range4 to 20 mA
Permissible Input Range0 to 25 mA
Data Update40 ms
03Input Impedance & IsolationOfficial H53 clamp/MIL specifications
Power-On Input Impedance272.5 Ω at 20 mA; 362.5 Ω at 4 mA
Input-to-System Withstand1.5 kV AC for 1 min (clamp/MIL connection)
Environmental Code 3ISA G3; −20 to 70 °C
Power-Off Input Impedance500 kΩ minimum
04Electrical PerformanceStyle-common accuracy range
Rated Accuracy±16 µA over 1 to 23 mA
Maximum Consumption320 mA at 5 V; 550 mA at 24 V
Temperature Drift±16 µA per 10 °C
Module WeightApprox. 0.34 kg; clamp/MIL version

Yokogawa SAI143-H53 Product Support

Frequently Asked Questions

Compatibility, configuration, installation and ordering guidance for SAI143-H53.

01

What does SAI143-H53 measure?

It accepts sixteen 4 to 20 mA current inputs with module isolation. It is not a voltage, RTD or thermocouple input module.

02

How is the H53 suffix decoded?

H selects HART communication; 5 selects pressure-clamp or MIL-cable connection without explosion protection; 3 selects ISA G3 with a published −20 to 70 °C temperature range.

03

How many HART devices can communicate?

One HART device can be connected per channel. The module has one HART modem and communicates with only one HART device at a time; do not describe it as sixteen concurrent modems.

04

Which accuracy range applies when Style is unspecified?

The page uses the common ±16 µA specification over 1 to 23 mA. Style S3 and later extend that rated range down to 0.05 mA; confirm Style before applying the wider range or later features.

05

Are the pressure-clamp terminal and /PRP pin included?

The H53 suffix identifies the connection type, not an included terminal option. Check the complete option code; /PRP is an explicit false-insertion-prevention option, not an assumed feature of H53.

06

Can it be used with intrinsic-safety Zener barriers?

Yokogawa states that no Zener barriers can be connected to SAI143. An isolation barrier is required where the approved intrinsic-safety instrumented-system design calls for one.

07

What information is required for replacement?

Provide the full SAI143-H53 label, Style and revision, terminal option, 2-wire or 4-wire channel settings, approved safety project and quantity. Verify compatibility and recommissioning within the site safety lifecycle.
