Description：

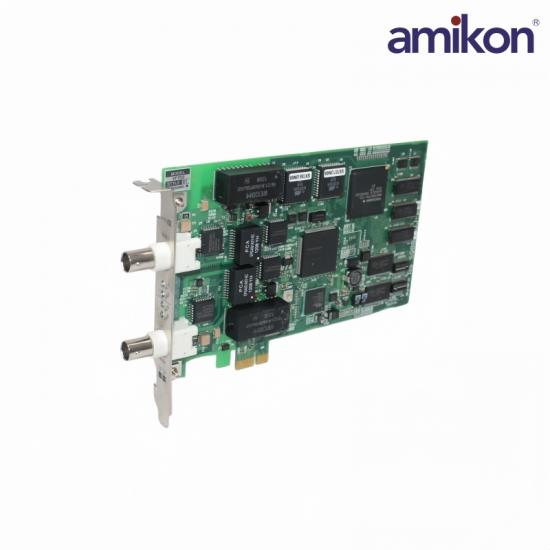

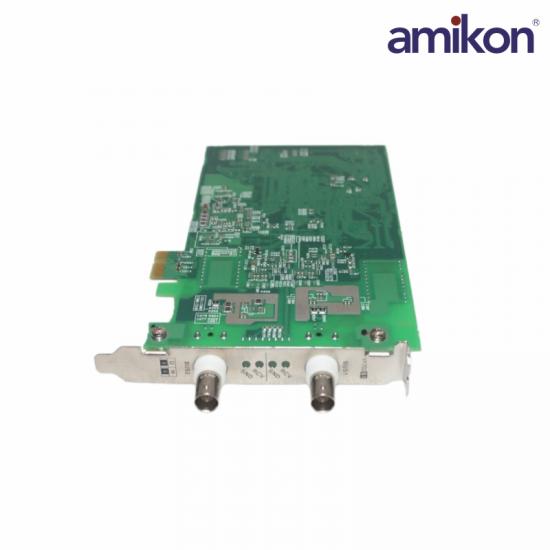

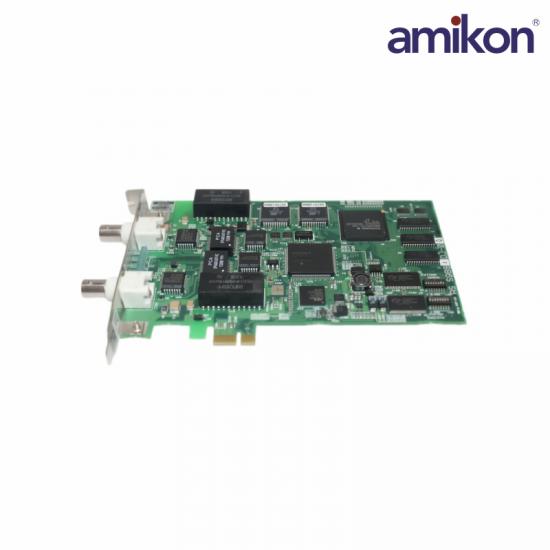

The YOKOGAWA VF702 Control Bus Interface Card is a communication interface module used in Yokogawa control systems to provide reliable data transmission over a control bus network. The card serves as a critical communication link between controllers, I/O subsystems, and other networked devices, ensuring stable and efficient exchange of control and monitoring data throughout the system.

Operating from a 3.3 VDC power supply (±9%), the VF702 features a maximum current consumption of 2.4 A, delivering dependable performance for continuous industrial operation. The module complies with the 10BASE-2 Ethernet transmission standard, enabling reliable communication over coaxial network infrastructure commonly used in industrial control environments.

Specification：

Frequently asked questions

Q1: What is the YOKOGAWA VF702 Control Bus Interface Card used for?

A1: The VF702 Control Bus Interface Card is used to provide communication and data exchange between controllers, I/O modules, and other system components within Yokogawa industrial and distributed control systems (DCS).

Q2: What is the required power supply voltage for the VF702?

A2: The VF702 operates with a power supply voltage of 3.3 VDC ±9%, ensuring stable performance within the specified voltage tolerance range.

Q3: What is the maximum current consumption of the VF702 interface card?

A3: The VF702 maximum current consumption is 2.4 A, which should be considered when designing the system power budget.

Q4: Why is the VF702 control bus interface card important in a DCS system?

A4: The VF702 control bus interface card serves as a communication bridge, enabling reliable data transmission between system components and ensuring coordinated control and monitoring functions

Product Applications

Petrochemicals and Natural Gas: Installed in the operating stations of refineries and ethylene plants, enabling control room personnel to monitor thousands of control loops in real time, ensuring the safe and stable operation of large plants (e.g., the CENTUM DCS system).

Power and Energy: In thermal power plants and nuclear power plants, it coordinates main and auxiliary equipment such as boilers and turbines with the DCS system, providing high-speed network connectivity to accurately respond to changes in grid load.

Water Treatment and Municipal Engineering: Used for centralized control of large waterworks and sewage treatment plants, enabling remote scheduling of valves, pump stations, and other equipment throughout the plant.
