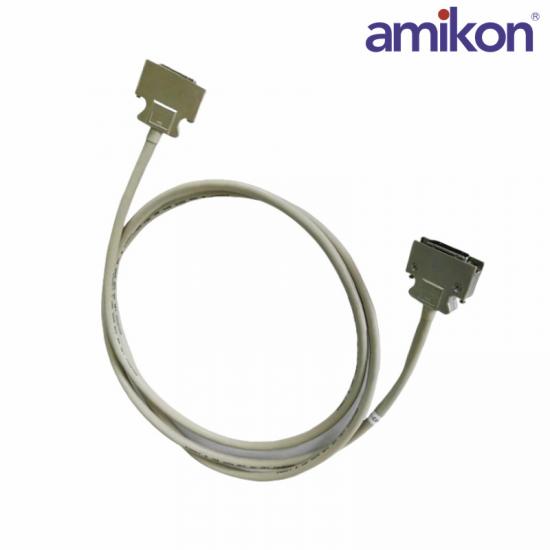

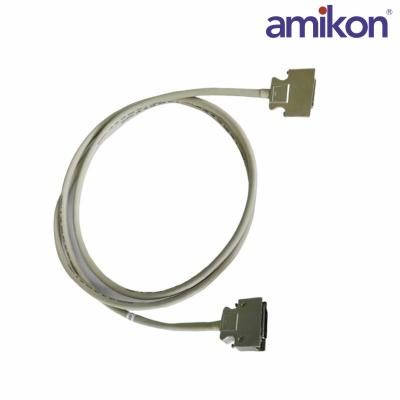

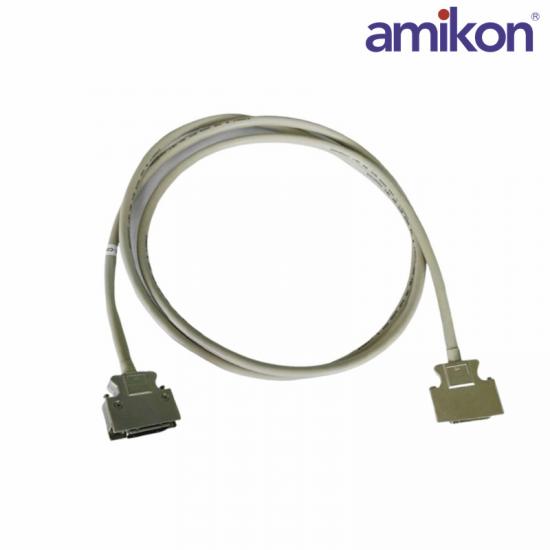

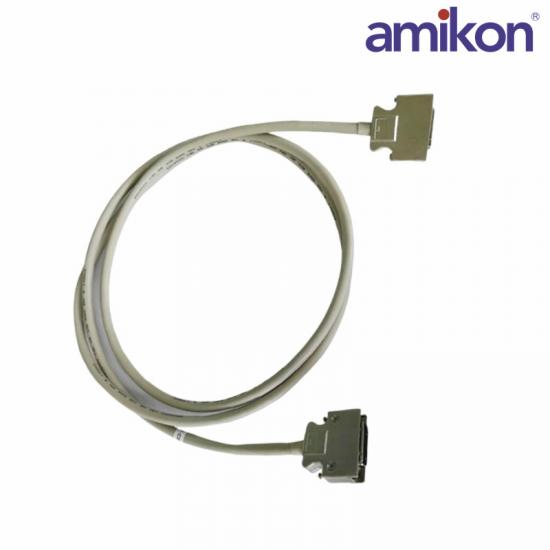

The Yokogawa YCB301-C100 ESB Bus Cable is a signal transmission cable designed specifically for use in Yokogawa’s industrial systems, particularly for data communication within Yokogawa’s ESB (Electronic Switch Box) and related DCS (Distributed Control Systems) or STARDOM systems.

The YCB301-C100 cable is typically used in fieldbus networks, process control systems, and industrial systems, offering the necessary performance for reliable, long-distance communication with minimal signal degradation.

Its robust construction and shielding properties ensure minimal interference, making it suitable for use in environments prone to electromagnetic interference (EMI) and radio frequency interference (RFI).

The Yokogawa YCB301-C100 is designed to be used in fieldbus communication systems for signal transmission within Yokogawa control systems.

This YCB301-C100 cable supports digital communication protocols (e.g., RS-485, HART, Modbus) and is ideal for providing the necessary connections between field devices, input/output modules, controllers, and control systems.

The ESB Bus Cable is used specifically in Yokogawa’s fieldbus networks to ensure high-fidelity data transmission with minimal noise interference, even in challenging industrial environments.

Model: YCB301-C100

Manufacturer: Yokogawa

Type: ESB Bus Cable for use in fieldbus and DCS systems

Signal Types Supported:

Conductor Material: Copper or tinned copper for high conductivity and reliable signal transmission.

Number of Conductors: 2 to 4 conductors.

Conductor Size: 18 AWG to 22 AWG.

Impedance: 50 ohms or 75 ohms

Temperature Rating:  -20°C to 80°C

The YCB301-C100 cable is resistant to moisture, with some versions offering IP67 or higher protection, ensuring performance in wet or humid conditions.
