Description：

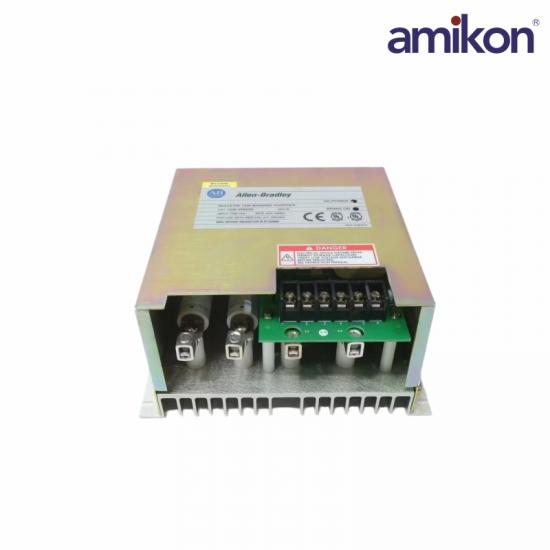

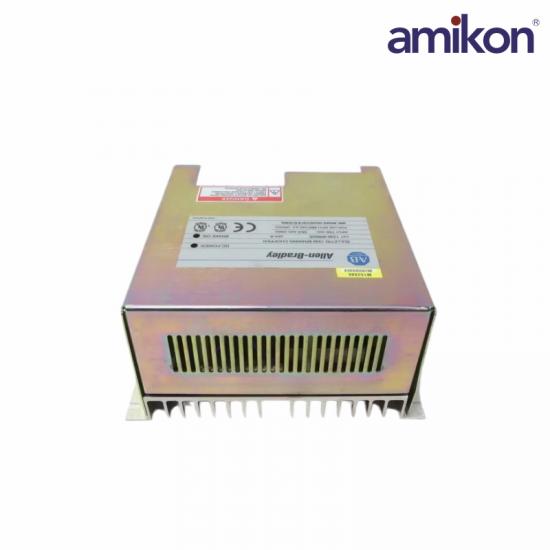

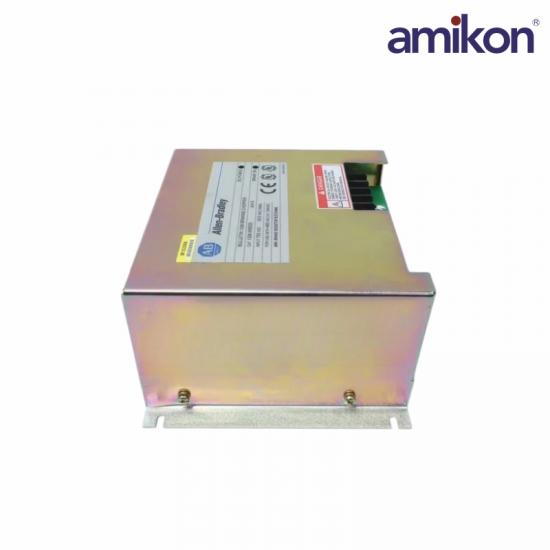

The 1336-WB035 from serves as a dynamic brake chopper, focusing on enhancing the performance of power systems. Accepting nominal voltages of 380, 415, and 460 volts AC, it is engineered to manage a rated RMS current of 35 Amperes. This component plays a critical role in controlling deceleration in machinery, contributing to safer and more efficient operations.
A notable feature is its chopper transistor, which utilizes Insulated Gate Bipolar Transistor (IGBT) technology to regulate current effectively. The device is built to handle a DC bus turn-on voltage set at 750 volts DC while ensuring maximum output power dissipation at 115 watts. The minimum brake resistor value is specified at 9 ohms, optimizing performance during braking.
The initial contact resistance is kept to a minimum threshold of 100 mΩ or less, ensuring reliable connectivity. This chopper can be mounted either on a panel or chassis, offering installation flexibility. Designed for operation at altitudes up to 1000 meters, it adapts well to various environments.
Specification：
|
Part Number |
1336-WB035 |
|
Weight |
3.77 kg |
|
Rated Voltage |
380/415/460V AC |
|
Rated RMS Current |
35 A |
|
DC Bus Turn-on Voltage |
750 V DC |
|
Max Output Power Dissipation |
115 W |
|
Chopper Transistor |
IGBT |
|
Min Brake Resistor |
9 Ω |
|
Initial Contact Resistance |
≤100 mΩ |
|
Applicable Altitude |
1000 m |
|
Humidity |
5%~95%, non-condensing |
|
Storage Temperature |
-40°C ~ +70°C |
Frequently asked questions
Q1: What is the 1336-WB035 Dynamic Brake Chopper?
A1: It is a dynamic brake chopper used in industrial drive systems to dissipate regenerative energy generated during motor braking operations.
Q2: What is the 1336-WB035 rated RMS current of this brake chopper?
A2: The 1336-WB035 rated RMS current is 35 A.
Q3: What is the 1336-WB035 DC bus turn-on voltage?
A3: The 1336-WB035 DC bus turn-on voltage is 750 V DC.
Q4: What is the 1336-WB035 maximum output power dissipation?
A4: The 1336-WB035 maximum output power dissipation is 115 W.
Q5: What is the 1336-WB035 applicable installation altitude?
A5: The 1336-WB035 applicable altitude is up to 1000 meters.
Product Applications
Mining and Material Handling: Heavy-duty belt conveyors, feeders, etc.
Petroleum, Chemical, and Water Treatment: High-power centrifugal pumps, compressors, blowers, etc.
Pulp and Paper Manufacturing: Roller conveyors, mixers, paper cutters, etc.
Metal Processing: Rolling mill auxiliary equipment, wire drawing machines, etc.
