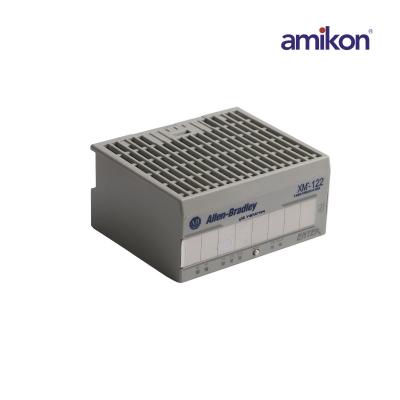

1440-VSE02-01RA XM-122

Product Origin:  USA

Type:Standard Dynamic Measurement Module

Dimension:9cmx7.6cmx4.8cm

Weight:0.2KG

Full Description: The 1440-VSE02-01RA module is an intelligent 2-channell special-purpose vibration monitor by , The module comes equipped with special firmware and circuitry which allows the module to measure both conventional spikes, as well as g’s Spike Energy (gSE).

The 1440-VSE02-01RA vibration monitor module has a single onboard relay that can be expanded to five relays, 14 to 20 mA outputs, an integral tachometer, as well as a buffer output for every output. This module can capture data while in a steady-state and in the startup/coast-down conditions, monitor a maximum of 16 alarms, and capture spectra and trend or waveform data on events, which makes the 1440-VSE02-01RA module a complete monitoring system.

Also, the 1440-VSE02-01RA module monitors transducer speed and bias as well. The time taken by the 1440-VSE02-01RA module to update every set of measurements in a monitoring session depends on its configuration. This module can power or accept input from Integrated Electronic Piezo Electric (IEPE) accelerometers as well as from standard eddy current probe systems. Moreover, the 1440-VSE02-01RA module can accept signals from most of the standard voltage output measurement devices like pressure or velocity transducers.
