Part Number：150-C361NBD

Weight：95.00 lbs (43.09 kg)

Enclosure Type：Open

Current Rating：361 A

Rated Voltage：200–460V AC

Input Line：200–460V AC, 3-Phase, 50/60 Hz

Control Voltage：100–240V AC

Wiring：3-Wire

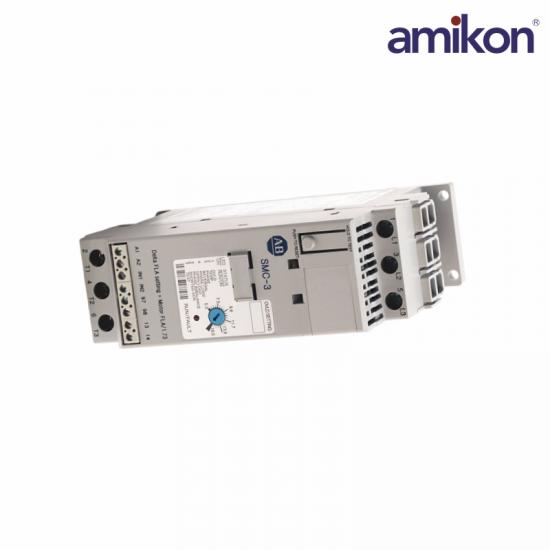

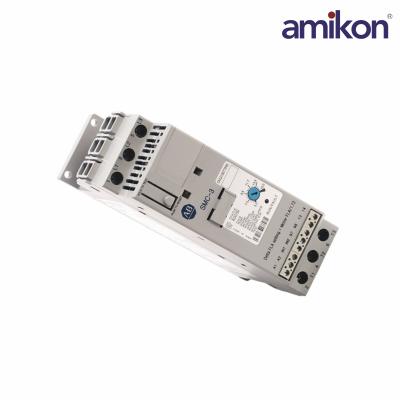

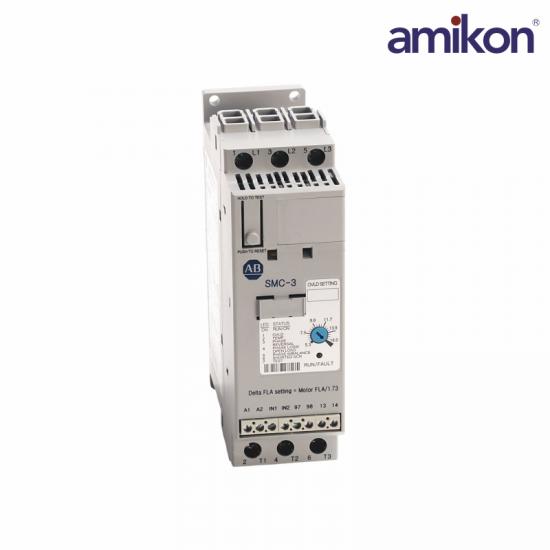

The 150-C361NBD is an SMC-3 solid state smart motor controller. It is a 3-wire controller with a rated voltage range of 200-460V AC and coil voltage of 100-240V AC. It also has a current rating of 361 A, a frequency rating of 50-60 Hz, and an HP rating of 75-125 at 60 Hz. It comes with a reset button, run/fault LED display and a rotary switch for motor FLA setup. The operating temperature of the controller is -5-50 ËšC and the storage temperature is -25-85 ËšC. It has a non-condensing relative humidity of 5-95%, as well as a maximum operating altitude of 2000 m. The 150-C361NBD controller has an in-built motor overload and temperature and current protection. This controller has Delta compatibility and uses an open-type enclosure. It also has an integral bypass, overload protection, as well as motor and system diagnostics. The bypass of this controller will minimize heat generation because it automatically closes when the nominal speed has been reached by the motor. Five start/stop modes are available with the 150-C361NBD controller, such as soft start, soft stop, current limit start, coast-to-rest, and kick start. This controller is ideal for applications including pumps, conveyors, lifts, fans, mixers, and chillers.

Frequently asked questions：

Q1: What is the 150-C361NBD used for?

A: The 150-C361NBD is used to control and protect large industrial motors, providing smooth starting and reliable operation.

Q2: What is the current rating of the 150-C361NBD?

A: It has a rated current of 361 A.

Q3: What voltage range does the 150-C361NBD support?

A: The controller supports 200–460 V AC.

Q4: What applications is the 150-C361NBD suitable for?

A: It is suitable for large pumps, compressors, crushers, and heavy-duty conveyor systems.
