Part Number: 1788-DNBO

Weight: 0.19 lbs (0.09 kg)

Product Family: DeviceNet

Isolation Voltage: Tested to withstand 707 VDC for 60 seconds

Power Requirements:

Host Power: 5 VDC @ 260 mA

DeviceNet Power: 24 VDC @ 20 mA (Class 2)

Power Consumption (Maximum):

5 VDC: 1.3 W

24 VDC: 0.48 W

Total Power Consumption: 1.78 W

Host Power Requirement: 5 VDC @ 260 mA

DeviceNet Power Requirement: 24 VDC @ 20 mA

Power Consumption: 5 VDC

Thermal Dissipation: 6.1 BTU/hr

RTB Screw Torque: 5–7 inch-pounds (0.56–0.8 Nm)

Operating Shock: 30 g

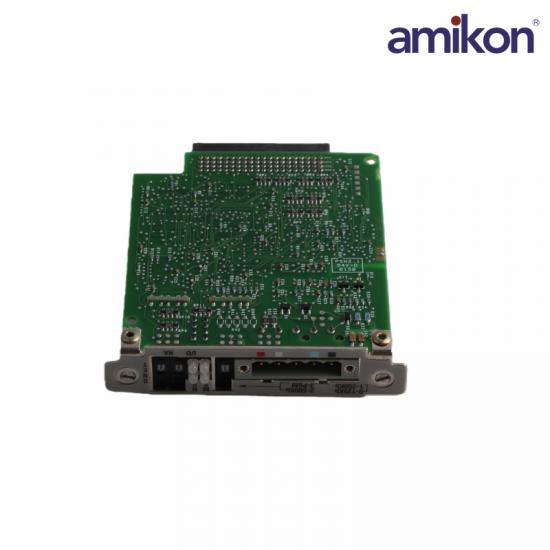

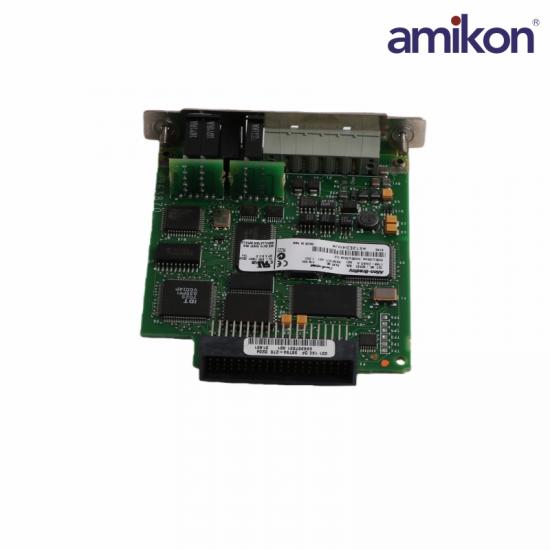

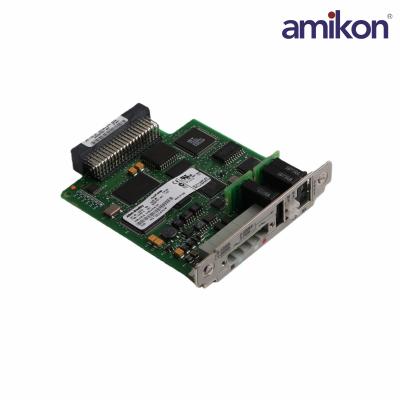

The 1786-DNBO is a DeviceNet Daughtercard. This daughtercard is used with any compatible device that accommodates this module.

For configuration of the DeviceNet daughtercard, RSNetWorx for DeviceNet V3.0 Service Pack 2 is required. This is required to include the module to the system scanlist.

To set the network address of the 1788-DNBO, Two (2) switches are provided with the 1788-DNBO. Valid node address is 0-63 which is the node range supported by DeviceNet networks. As a general rule, the node address of the daughtercard must be unique and shall have no duplicate address in the network. Additionally, setting the node address to 99 and restarting the module, erases the daghtercard to the defined scanlist therefore, this shall only be done is erasure to scanlist is needed. The switch settings are read during powerup to identify the set address and the intended operation for the daughtercard.

Frequently asked questions：

Q1: What is the main function of the 1788-DNBO?

A: It adds DeviceNet communication functionality to compatible control systems.

Q2: What power supplies are required for this daughtercard?

A: It uses both 5 VDC and 24 VDC supplies with low power consumption.

Q3: Is the 1788-DNBO suitable for industrial environments?

A: Yes, it is designed for industrial-grade applications.

Q4: Is this module used as a standalone device?

A: No, it is a daughtercard that must be installed into a compatible host module or controller.
